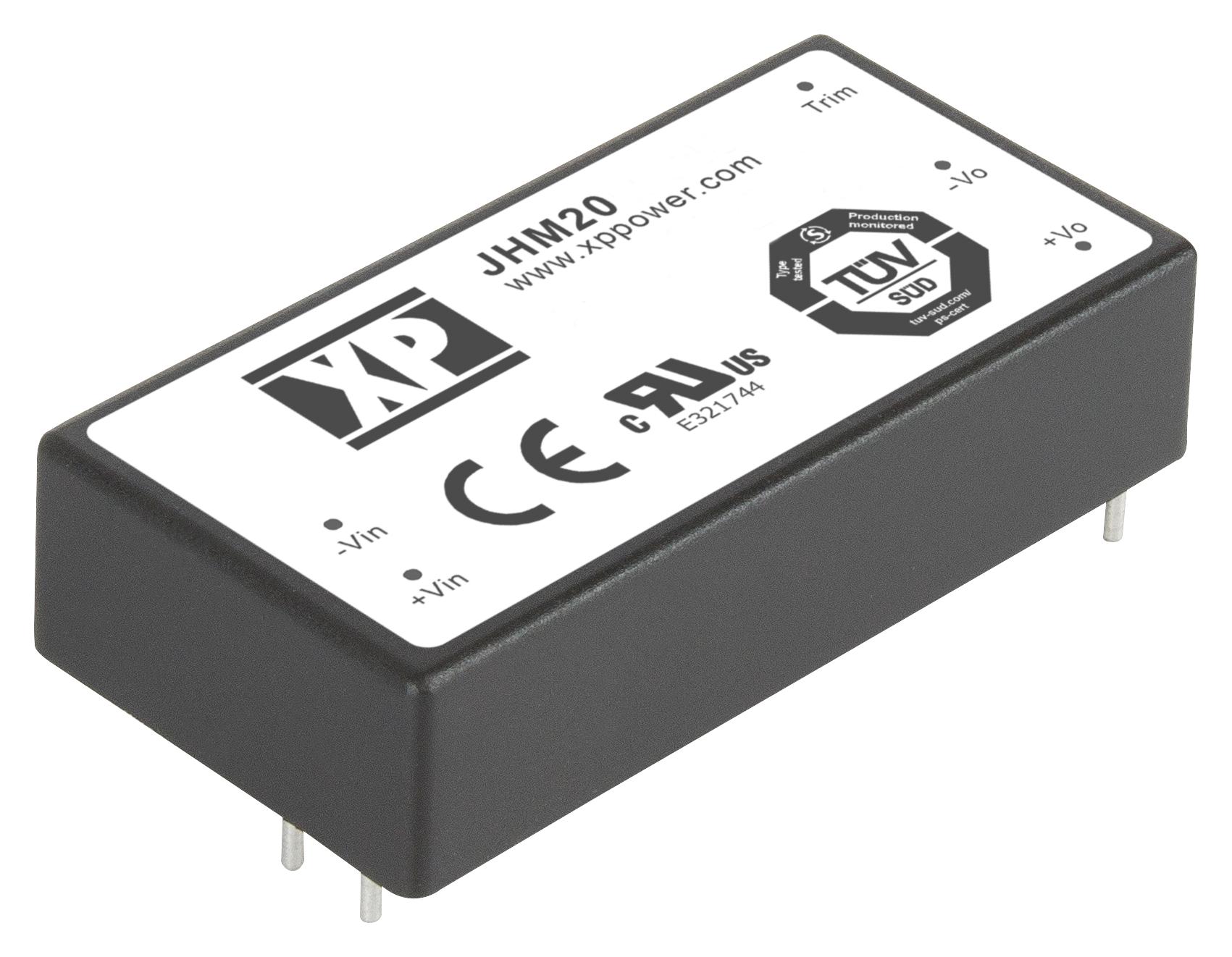

XP POWER JHM2048D12 Medical Power Module
The JHM20 series DC-DC modules offer a compact and reliable power solution designed to meet international medical safety standards. They feature regulated single and dual output voltages ranging from 5V to 30V, with single outputs trimmable within ±10%. These modules have a 2:1 input voltage range, a 2 x 1-inch footprint for easy PCB mounting, and are certified for medical applications including IEC60601-1, 3rd Edition. They provide reinforced isolation of 4kVAC, 2 MOPP at 250VAC working voltage, and a low patient leakage current of 2.5μA. Additionally, they include output voltage trim, short circuit protection, and comply with EN55011 Class A without external components.
XP POWER JHM2048D12 Medical Power Module Specifications:
- Input Voltage Range: 9-75 VDC
- Output Voltage: 5V to 30V, trimmable ±10%
- Output Current: 1750 mA at 12V, 3500 mA at 5V, etc.
- Efficiency: Up to 88%
- Isolation: Double/reinforced, 4kVAC for 1 min
- Leakage Current: 2.5μA
- Dimensions: 2.00 x 1.00 x 0.40 inches (50.8 x 25.4 x 10.2 mm)
- Operating Temperature: -40°C to +80°C
- Temperature Coefficient: 0.03 %/°C
- Mechanical: Solder coated copper pins, UL94V-0 plastic case
- Safety Approvals: IEC60601-1, UL, CSA, TUV
- Switching Frequency: 250 kHz
- Waterproof Potting: Silicone (UL94V-0 rated)
- Humidity: 5-95% RH non-condensing
- Vibration & Shock Resistance: Conforms to EN60068-2 standards
Buy the XP Power JHM20 – Reliable Medical DC-DC Converter for Industrial Applications
Experience the dependability of XP Power’s JHM20 series medical-grade DC-DC modules. Compact, efficient, and certified to international safety standards, these modules deliver regulated outputs with reinforced isolation, broad input range, and low leakage current. Perfect for medical equipment requiring safety, reliability, and high performance. With features like output voltage trim and short circuit protection, they ensure your devices operate safely under various conditions. Buy online now to enhance your project’s safety and efficiency with trusted power modules.
Order your XP Power series JHM20DC-DC converter today and ensure your medical projects meet strict safety standards with reliable power solutions.
Frequently Asked Questions
Where can I buy XP POWER JHM2048D12?
You can click on the BUY or RFQ button to purchase JHM2048D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JHM2048D12?
You can download the JHM2048D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JHM2048D12?
XP POWER
