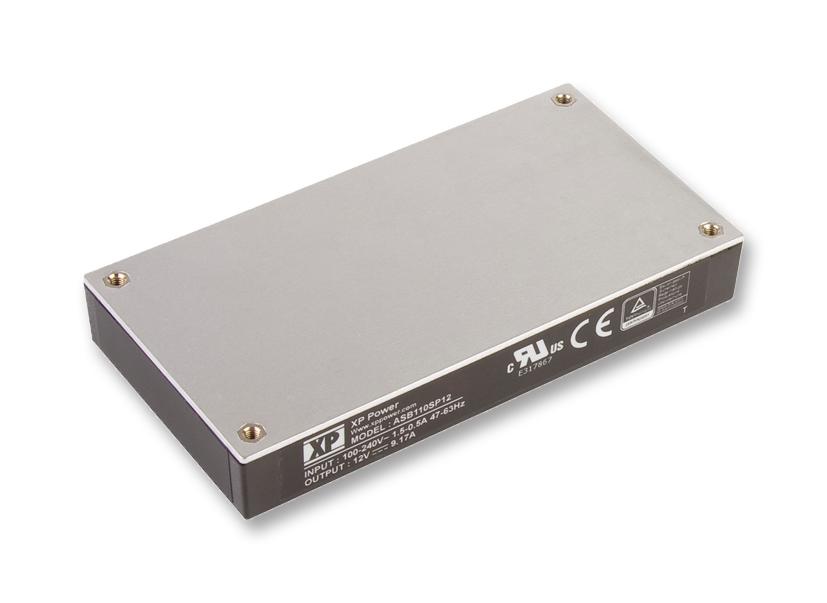

XP POWER ASB110PS48 Industrial Power Supply
The ASB110 power supply series provides a compact, high-efficiency AC-DC conversion solution with 110 Watts output power, designed for industrial applications. It features a full brick size with a low profile, base-plate cooling, and operates reliably from -40°C to +85°C. Equipped with comprehensive protections including over-current, over-voltage, and over-temperature, and includes an internal EMC filter, AC fuse, and bulk capacitor. This unit is suitable for demanding environments requiring robust performance, minimal external components, and high energy efficiency up to 91%. Optional heatsinks are available for enhanced thermal management.
XP POWER ASB110PS48 Industrial Power Supply Specifications:
- Power Output: 110 Watts
- Input Voltage: 85-264 VAC, universal input
- Output Voltage: 12V, 24V, 48V options
- Output Current: varies per model, up to 9.16 A
- Efficiency: Up to 91%
- Isolation: Input to Output 3000 VAC, Input to Ground 7500 VAC, Output to Ground 7500 VAC
- Operating Temperature: -40°C to +85°C
- Cooling Method: Base plate conduction cooled, optional heatsink available
- Dimensions: 4.40 x 2.40 x 0.67 inches (110.8 x 61.0 x 17.0 mm)
- Weight: Approx. 0.48 lb (220 g)
- Protection Features: Over current, over voltage, over temperature, short circuit, thermal
- Certifications: UL60950-1, EN60950-1, IEC60950-1
- Operational Altitude: Up to 3048 meters
- Shock and Vibration: Tested to IEC standards (Shock TEC68-2-27, Vibration TEC68-2-6)
Buy the XP Power Series ASB110 AC-DC Power Supply: ASB110PS48
Purchase the XP Power ASB110PS48 power supply online today to ensure your industrial systems are supported by a reliable, compact, and highly efficient power source. With a wide input voltage range, high operating temperature tolerance, and comprehensive protection features, this power supply guarantees consistent performance in demanding environments. Its base-plate cooling and optional heatsink options provide flexibility for thermal management, making it ideal for various applications. Enjoy fast delivery, secure checkout, and technical support when you buy online now.
Buy XP Power ASB110PS48 now and experience unmatched reliability and high efficiency for your industrial power needs.
