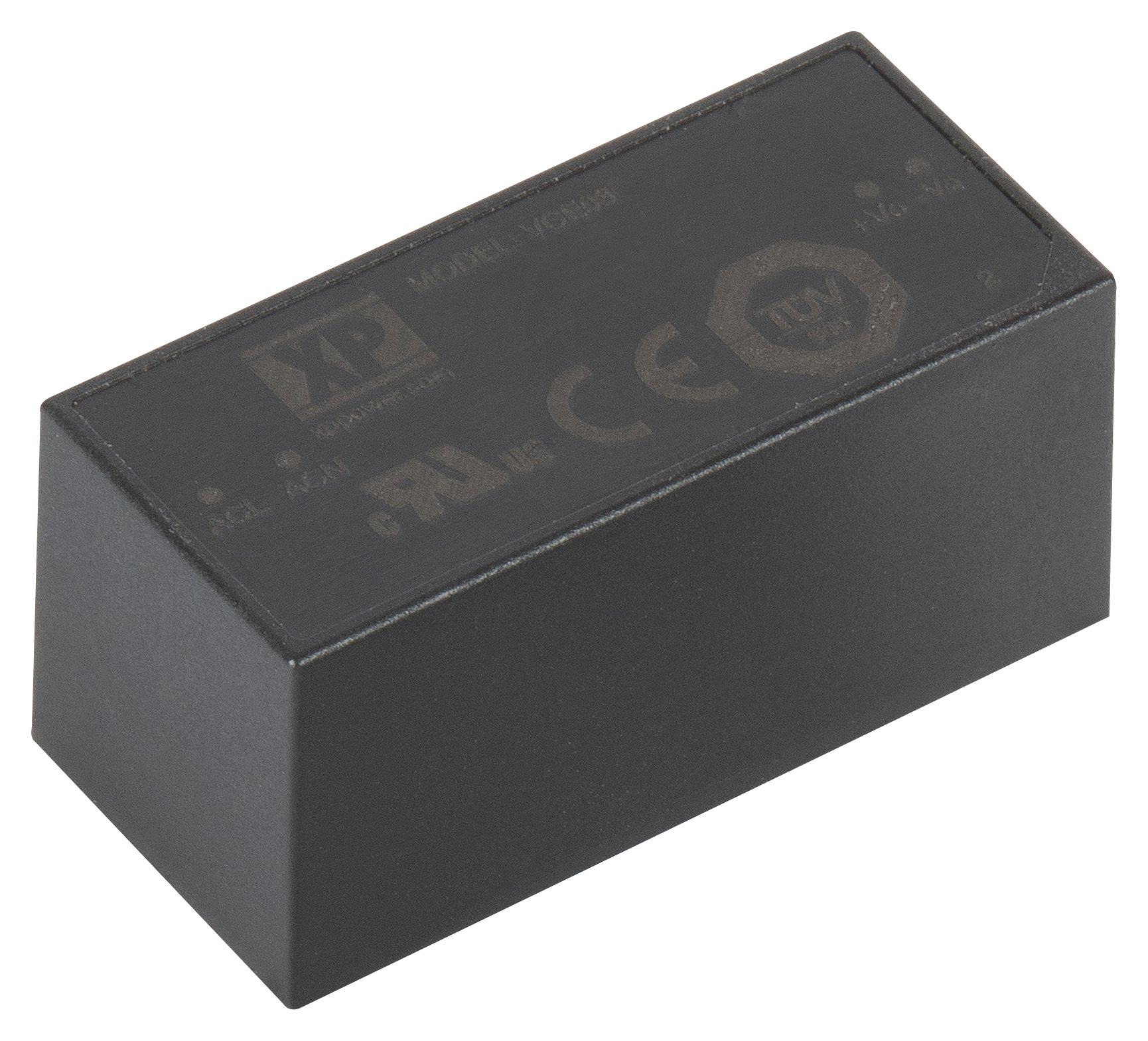

XP POWER VCE03US05 AC-DC Power Supply
The VCEO3 series offers compact, reliable AC-DC power supplies ideal for industrial and household applications. They provide single outputs from 3.3V to 48V, operate efficiently within an 85-305 VAC range, and are designed for PCB mounting in open frame or encapsulated formats. Certified to international safety standards including IEC 60950-1, UL, and EN62368-1, these power modules feature low no-load power consumption (<0.3W), high efficiency (up to 80%), and operate across a wide temperature range of -25°C to +70°C. Their robust construction ensures consistent performance in demanding environments while maintaining compliance with EMI and safety regulations.
XP POWER VCE03US05 AC-DC Power Supply Specifications:
- Output Power: 3W
- Output Voltage: 3.3V, 5V, 9V, 12V, 15V, 24V, 48V
- Output Current: 910mA, 600mA, 333mA, 250mA, 200mA, 125mA, 63mA
- Input Voltage Range: 85-305 VAC
- Efficiency: Up to 80%
- Operating Temperature: -25°C to +70°C
- Protection: Short circuit, overload, and auto recovery
- Certifications: IEC62368-1, IEC60335-1, UL62368-1, EN62368-1
- Dimensions: 1.65 x 0.75 x 0.75 inches (VCEO3); 1.50 x 0.65 x 0.65 inches (VCEO3-P)
- Cooling: Convection-cooled
- Isolation: 3000 VAC input to output
- EMC Compliance: EN55032 Level B, EN61000-3-2, EN61000-3-3
- Safety Approvals: IEC 60950-1, IEC 60335-1, UL 62368-1
Buy the XP Power VCE03US – Reliable AC-DC Power Supply for Industrial Applications
Invest in the XP Power VCE03US series today and enjoy a highly efficient, compact, and certified power solution for a wide range of industrial and household applications. Its robust design, low no-load power consumption, and extensive safety certifications ensure reliable operation and easy integration into your systems. Whether you need open frame or encapsulated versions, these power supplies deliver consistent performance with up to 80% efficiency, a wide temperature range, and multiple output options, making them ideal for demanding environments. Upgrade your power infrastructure now and unlock dependable power for diverse applications.
Buy XP Power VCE03US power supplies now and experience unmatched reliability and efficient performance for industrial and domestic projects.
Frequently Asked Questions
Where can I buy XP POWER VCE03US05?
You can click on the BUY or RFQ button to purchase VCE03US05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VCE03US05?
You can download the VCE03US05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VCE03US05?
XP POWER
