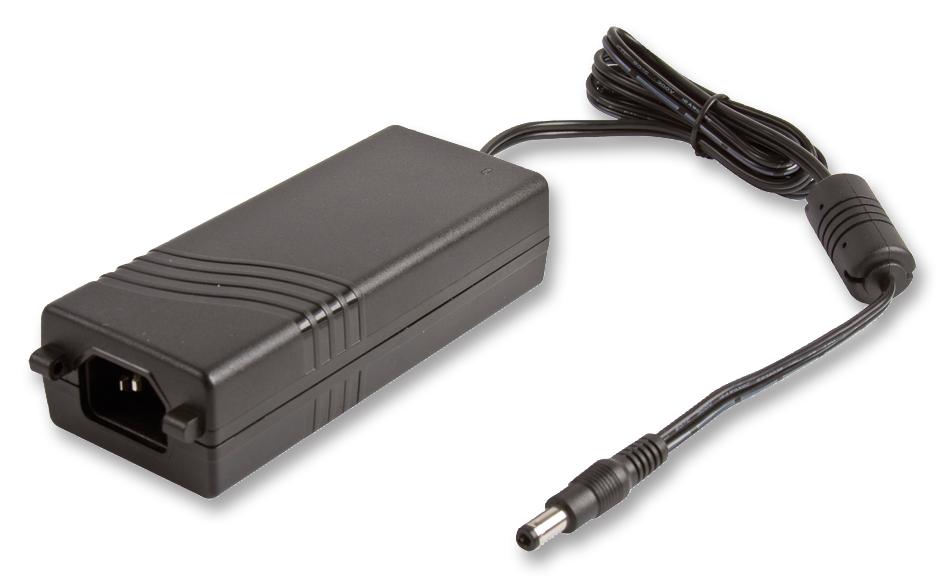

XP POWER AFM30US24 Power Supply
The AFM Series offers energy-efficient power supplies compliant with CEC2008 and EISA2007 standards, suitable for IT and medical applications. It features an input voltage range of 80-264 VAC with a 25% derating, a frequency of 47-63 Hz, and high safety and electromagnetic compatibility certifications. The series provides reliable output voltages, adjustable within tight accuracy, with protections against overvoltage, overload, and short circuits. Designed for durability, they operate in temperatures from 0°C to +60°C, with a 3-year warranty, making them ideal for medical, Industrial automation, and electronic equipment.
XP POWER AFM30US24 Power Supply Specifications:
- Input Voltage: 80-264 VAC, derate output power 25% at full range
- Input Frequency: 47-63 Hz
- Input Current: AFM30: 0.8 A rms at 115VAC, AFM45: 1.2 A rms at 115VAC, AFM60: 1.5 A rms at 115VAC
- Inrush Current: AFM30: 50 A max at 240VAC, AFM45: 50 A max at 240VAC, AFM60: 120 A max at 240VAC
- Power Factor: 0.8 typical
- No Load Input Power: AFM30/45: <0.3 W, AFM60: <0.5 W
- Output Voltage: User-adjustable within specified limits
- Output Voltage Trim: Not user-adjustable
- Initial Set Accuracy: ±1%
- Minimum Load: 0.1 A
- Start Up Delay: 3 seconds max at 115 VAC
- Hold Up Time: ≥8 ms at 115 VAC
- Line Regulation: 1.0% maximum
- Load Regulation: 2.5% maximum
- Transient Response: ±4% deviation, recovery within 1% in 500 µs for 25% load change
- Ripple & Noise: Max 1% pk-pk, measured at 20 MHz bandwidth
- Overvoltage Protection: Yes, response within specified limits
- Overload Protection: Yes, hiccup mode
- Short Circuit Protection: Yes, automatic restart
- Temperature Coefficient: 0.04%/°C
- Efficiency: 80-85%, depending on model and load
- Isolation: Input to output 4000 VAC, Input to ground 1500 VAC, Output connected to input ground
- Switching Frequency: AFM30/45: 58 KHz typ., AFM60: 52 KHz typ.
- Power Density: AFM30: 2.8 W/in³, AFM45: 4.2 W/in³, AFM60: 3.76 W/in³
- MTBF: >250,000 hours at 25°C according to MIL-HDBK-217F
- Operating Temperature: 0°C to +60°C, derating from 100% power at +40°C to 60% at +60°C
- Operating Humidity: 10-95% RH, non-condensing
- Storage Temperature: -40°C to +80°C
- Altitude: Up to 2000m
- Shock & Vibration: 30g, 10 ms; 5-100 Hz, 2.31 m/s², 20 mins
- EMC & Safety Compliance: EN55011/22, FCC Class B, IEC/EN 60601-1, UL60950-1, CCC
- Certifications include EMI/RFI, safety, and medical standards
- Dimensions: 87.4 x 47 x 27.4 mm approx.
- Weight: AFM30/45: 256 g, AFM60: 960 g
- Enclosure: PC Class 94V-0, optional white case versions available
Buy the Green DCJ Power Series Power Supply: AFM30US24
Discover the reliable and energy-efficient Green DCJ Power Series power supply designed for medical, IT, and industrial applications. Featuring adjustable output, high compliance standards, and excellent safety certifications, this power supply ensures consistent performance from 0°C to +60°C, operating efficiently with minimal load and input power. It offers comprehensive protections including overvoltage, overload, and short circuit safeguards, with a durable enclosure suitable for demanding environments. Purchase online now to ensure seamless integration into your critical equipment, backed by a 3-year warranty for long-term peace of mind.
Get Green DCJ Power Series AFM30US24 today—built for precision and long-lasting durability.
