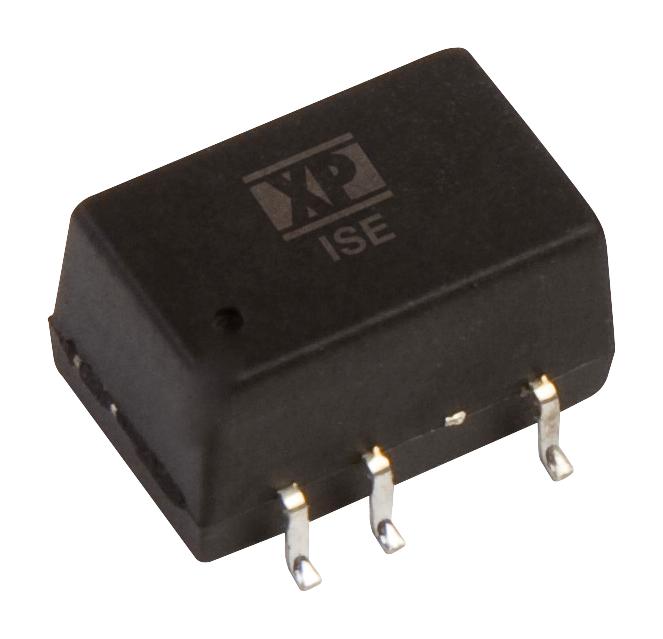

XP POWER ISE1209A Industrial Power Converter
The ISE series is an isolated, 1W surface mount DC-DC converter designed for reliable power conversion in industrial and automation applications. It offers a single output with industry-standard pinout, 1500VDC isolation, and operates in a temperature range from -40°C to 105°C. The compact dimensions of 0.500 x 0.44 x 0.285 inches make it ideal for space-constrained environments. Suitable for process control, clock systems, and industrial environments, it ensures steady, isolated power with high efficiency and durability.
XP POWER ISE1209A Industrial Power Converter Specifications:
- Power: 1 Watt
- Package: SMD (Surface Mount Device)
- Dimensions: 0.500 x 0.44 x 0.285 inches (12.7 x 11.2 x 7.25 mm)
- Isolation Voltage: 1500 VDC, optional 3000 VDC with suffix -H
- Operating Temperature Range: -40°C to +105°C
- Input Voltage Range: 2.97-3.63V, 4.5-5.50V, 10.80-13.20V, 13.50-16.50V, 21.60-26.40V
- Output Voltage: 3.3V, 5V, 12V, 15V, 24V (typical)
- Efficiency: High efficiency at full load
- Isolation Resistance: 1 GΩ tested at 500 VDC
- Isolation Capacitance: 20 pF
- Switching Frequency: 50-300 kHz
- Temperature Coefficient: 0.02%/°C
- Maximum Capacitive Load: 220 μF
- Weight: Approx. 1.5 g
- Recommended Solder Profile: IPC/JEDEC J-STD-020D.1
Buy the XP Power ISE1209A – Reliable Industrial DC-DC Converter for Automation Applications
Purchase the XP Power ISE1209A series 1W isolated surface mount DC-DC converter online today. With 1500VDC isolation, operating from -40°C to 105°C, and compact dimensions, it is ideal for industrial automation, process control, and clock systems. This high-efficiency power module provides reliable and steady output power even in harsh environments. Easy to integrate into your designs, it supports a wide input voltage range and offers optional high isolation. Get yours now for quality, durability, and optimal performance in industrial electronics.
Order your XP Power ISE1209A series 1W isolated DC-DC converter today and ensure dependable power supply for industrial automation and process control projects.
Frequently Asked Questions
Where can I buy XP POWER ISE1209A?
You can click on the BUY or RFQ button to purchase ISE1209A from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ISE1209A?
You can download the ISE1209A datasheet or visit the XP POWER website for support.
Who is the manufacturer of ISE1209A?
XP POWER
