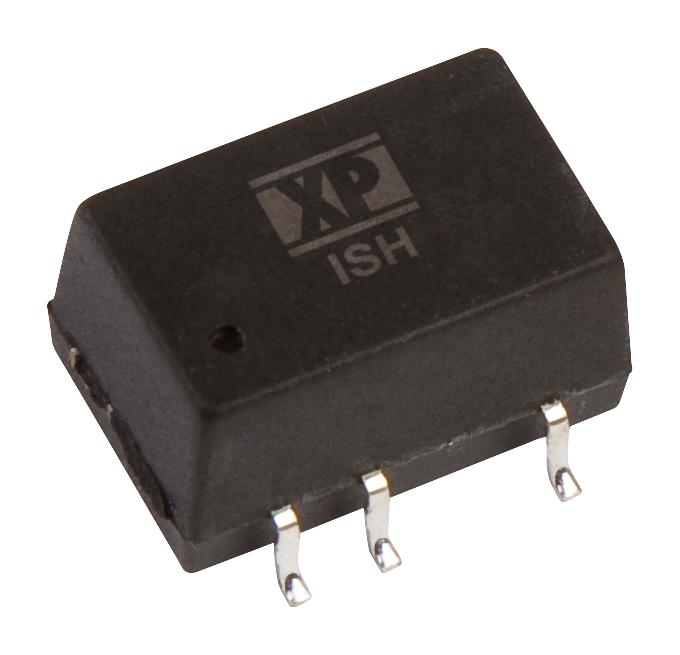

XP POWER ISH1205A Isolated Power Converter
The ISH series is an isolated 2W unregulated DC-DC converter with a single output, offering 1500VDC isolation and an optional 3000VDC version. Designed with industry-standard SMD pinout, it operates from -40°C to +105°C, making it ideal for power management, industrial equipment, and LED lighting. Its compact size (0.500 x 0.44 x 0.285 inches) ensures easy integration into various electronic systems, providing reliable performance with high isolation, efficient power conversion, and robust thermal characteristics for demanding applications.
XP POWER ISH1205A Isolated Power Converter Specifications:
- Power Output: 2 Watts
- Input Voltage Range: 10.8-13.2 V
- Output Voltage: Unregulated, single output (model-specific)
- Isolation Voltage: 1500 VDC, optional 3000 VDC with suffix -H
- Operating Temperature: -40°C to +105°C
- Package: SMD, dimensions 0.500 x 0.44 x 0.285 inches (12.7 x 11.2 x 7.25 mm)
- Pinout: Industry standard
- Efficiency: Not specified, typical for unregulated modules
- Isolation Resistance: 10^9 ohms at 500 VDC
- Maximum Input Current: Dependent on model
- Weight: Approx. 1.5 grams
- Thermal Resistance: Not specified
- Surge & Transient: Not specified
- Compliance & Certification: UL Listed, CE, RoHS
- Cooling Method: Natural convection
- Application: Power management, industrial electronics, LED lighting
Buy the XP Power Series ISH DC-DC Converter: ISH1205A
Purchase the XP Power ISH1205A isolated DC-DC converter online today and enhance your electronic projects with a reliable power solution. This 2W unregulated converter offers high isolation of 1500VDC, with an optional 3000VDC version for increased safety and performance. Compact and designed with industry-standard SMD pinout, it operates efficiently across -40°C to +105°C. Perfect for power management, industrial equipment, LED lighting, and other demanding applications, ensuring robust and stable power delivery in your systems.
Get XP Power ISH1205A today—built for precision, reliability, and long-lasting durability in demanding electronic applications.
Frequently Asked Questions
Where can I buy XP POWER ISH1205A?
You can click on the BUY or RFQ button to purchase ISH1205A from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ISH1205A?
You can download the ISH1205A datasheet or visit the XP POWER website for support.
Who is the manufacturer of ISH1205A?
XP POWER
