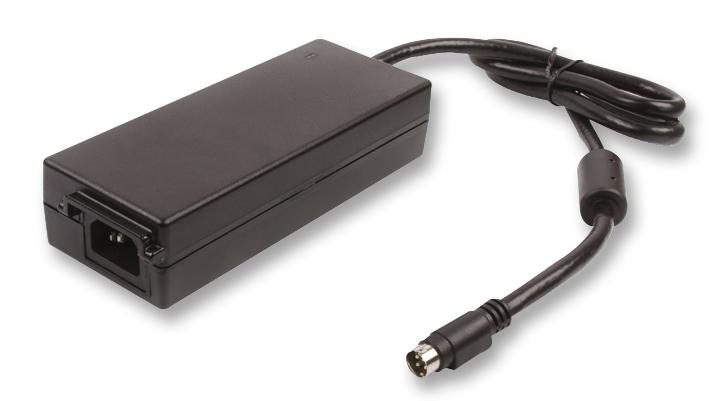

XP POWER AHM180PS24 Power supply
The AHM180PS24 is a 180W power supply providing a 24.0VDC output with high efficiency and reliable safety features, suitable for medical and industrial applications. It supports an input voltage of 80-264 VAC and offers a power density of 4.4-5.7 Wind. Constructed with robust insulation, it features a 4000 VAC In to Out isolation, overcurrent, and overtemperature protection, and complies with EN60601-1 safety standards. Its compact, durable design operates reliably from 0°C to +60°C, with optional connector retention for versatile installation.
XP POWER AHM180PS24 Power supply Specifications:
- Power Rating: 180W
- Output Voltage: 24.0VDC
- Input Voltage Range: 80-264 VAC
- Input Frequency: 47-63 Hz
- Efficiency: 92% typical
- Isolation: 4000 VAC In to Out, 2 x MOPP
- Operating Temperature: 0°C to +60°C (derated)
- Enclosure Dimensions: 4.58 x 2.02 x 1.40 inches (116.2 x 51.3 x 35.7 mm)
- Cooling Method: Convection
- Overvoltage Protection: 125% typical
- Short Circuit Protection: Trip and restart (hiccup mode)
- EMC Compliance: EN55011/32, EN61000 series
- Safety Standards: EN60601-1, UL60601-1, CSA 22.2
- Mechanical Weight: Approximately 600 grams
- Maximum Altitude: 3000 meters
- Shock Resistance: 3 shocks in both +ve and -ve directions along orthogonal axes
- Vibration Resistance: 5-500 Hz at 2 g
Buy the Power Supply Series AHM180 24VDC: AHM180PS24
Experience superior reliability with the Power Supply Series AHM180PS24, offering 180W output, high efficiency, and comprehensive safety features. Designed for medical, industrial, and automation applications, it supports an input voltage of 80-264 VAC and provides a stable 24VDC output. Its compact form factor includes robust insulation, overload and overtemperature protections, and complies with international safety standards including EN60601-1. Its convection cooling ensures quiet operation, making it ideal for demanding environments. Purchase online today for immediate, dependable power solutions.
Order your Power Supply Series AHM180PS24 today and ensure reliable performance for your medical or industrial devices.
Frequently Asked Questions
Where can I buy XP POWER AHM180PS24?
You can click on the BUY or RFQ button to purchase AHM180PS24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part AHM180PS24?
You can download the AHM180PS24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of AHM180PS24?
XP POWER
