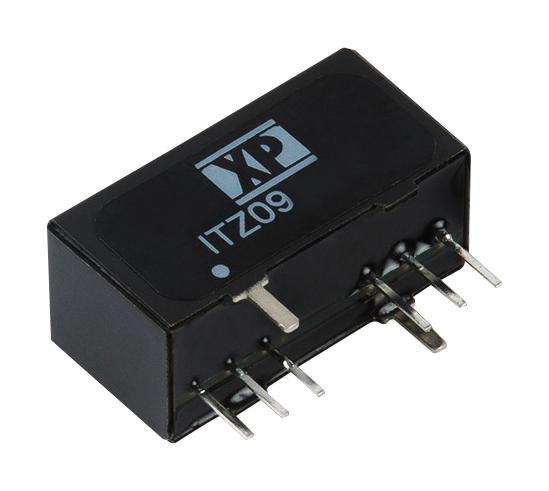

XP POWER ITZ0948S05 DC-DC Converter
The ITZ Series is an ultra-compact, highly efficient 9-watt DC-DC converter designed for industrial applications. It features a SIP-8 package with a small footprint, making it ideal for space-constrained electronic systems. The converter supports a wide 4:1 input voltage range from 18V to 75V, and provides fully regulated, isolated output voltages. Operating across temperatures from -40°C to +85°C, it requires no minimum load and includes remote on/off functionality. With 1500 VDC isolation and a 3-year warranty, it ensures reliable, stable power for demanding environments.
XP POWER ITZ0948S05 DC-DC Converter Specifications:
- Input Voltage Range: 18V to 75V DC (4:1 range)
- Output Power: 9 Watts
- Isolation Voltage: 1500 VDC
- Operating Temperature: -40°C to +85°C
- Dimensions: 0.86 x 0.38 x 0.44 inches (21.9 x 9.6 x 11.2 mm)
- Regulation: Fully regulated output, line and load regulation typical up to 2.0%
- Efficiency: Up to 88%
- Remote On/Off: Yes, controlled via pin 3
- No minimum load required for operation
- Enclosure: SIP-8 package, ultra-compact design
- Switching Frequency: 400/500 kHz
- Humidity: 5% RH, non-condensing
- Storage Temperature: -55°C to +125°C
- Cooling: Natural convection
- Certifications: EN61000-4 immunity standards, UL/CSA certified
Buy the XP Power ITZ0948S – Reliable Power Conversion for Industrial Applications
Experience the compact efficiency of the XP Power ITZ Series 9-Watt DC-DC converter, designed for space-constrained industrial applications. It features a 4:1 input range, 1500 VDC isolation, and a wide operating temperature from -40°C to +85°C. The fully regulated output ensures stable performance, while the no minimum load requirement simplifies integration. With remote on/off control and high efficiency up to 88%, this converter provides reliable power in demanding environments. Perfect for industrial electronics, automation, and instrumentation, order online today for quick delivery.
Order your XP Power Series ITZ0948S 9-Watt DC-DC converter today and ensure your electronic projects have dependable, efficient power for demanding industrial environments.
Frequently Asked Questions
Where can I buy XP POWER ITZ0948S05?
You can click on the BUY or RFQ button to purchase ITZ0948S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITZ0948S05?
You can download the ITZ0948S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITZ0948S05?
XP POWER
