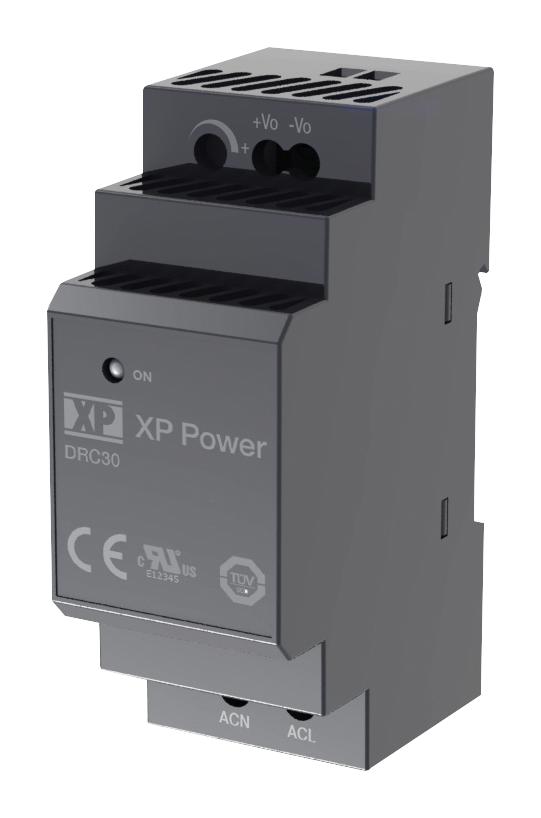

XP POWER DRC30US05 DC Power Supply
The DRC30 series power supplies offer a compact, lightweight design rated at 30 Watts, suitable for industrial and commercial applications. They feature universal 85 to 264VAC input, efficient digital regulation, LED indicators, and operate from -30°C to +70°C. Certified for safety (UL62368-1, EN62368-1) with Class B emission compliance, these DIN rail-mountable units support multiple output voltages from 5V to 48V. They provide robust surge withstand capabilities, MTBF of 300,000 hours, and a 3-year warranty, ensuring reliable performance in demanding environments.
XP POWER DRC30US05 DC Power Supply Specifications:
- Power Rating: 30 Watts
- Input Voltage: 85 to 264VAC or 120-370VDC
- Input Frequency: 47-63Hz
- Efficiency: Up to 90%
- Output Voltage Range: 5V (15W), 12V (24W), 15V (30W), 24V (36W), 48V (36W)
- Output Voltage Adjustment: 4.9-5.5V, 10.8-13.8V, 13.5-18.0V, 21.6-29.0V, 43.2-55.2V
- Output Current: 3.04A, 2.04A, 2.04A, 1.54A, 0.75A respectively
- Dimensions: 3.6 x 1.38 x 2.28 inches (92.6 x 35.0 x 58.0 mm)
- Operating Temperature: -30°C to +70°C
- Surge Withstand: 300VAC 5s
- MTBF: 300,000 hours
- Safety Certifications: UL62368-1, EN62368-1
- Emissions: Class B conducted & radiated
- Cooling: Natural convection
- Housing: Black UL94V-0 rated plastic
Buy the XP Power Series DRC Power Supply: 30 Watts Model DRC30US05
Order the XP Power DRC30 series 30W power supply online today and benefit from reliable performance, universal input, wide temperature operation, high efficiency, and safety certifications. Perfect for industrial automation, control systems, and commercial applications, this compact DIN rail mount unit ensures stability, surge withstand capacity, and long MTBF. With extensive safety approval and a 3-year warranty, buying online guarantees fast delivery, easy installation, and support for your critical power needs.
Buy XP Power DRC30US05 power supply now and experience reliable, high-efficiency performance in demanding industrial environments.
