XP POWER RCQ5072S24 Railway Power Converter
The RCQ50 and RCQ75 series converters from XP Power are robust, modular power supplies designed for railway and industrial applications. They provide up to 50 and 75 Watts, respectively, with wide input voltage ranges of 43V-101V DC for 72VDC models and 66V-160V DC for 110VDC models. Featuring reinforced 3000VAC input-output isolation and 1500VAC output-case isolation, they include remote On/Off, remote sensing, and ±10% output voltage trim. These units operate from -40°C to 105°C, comply with standards such as EN50155 and IEC60571, and meet EMC Class A emission standards, making them ideal for power management in transportation systems.
XP POWER RCQ5072S24 Railway Power Converter Specifications:
- Power: 50 Watts for RCQ50, 75 Watts for RCQ75
- Input Voltage Range: 43V-101V DC (72V models), 66V-160V DC (110V models)
- Output Voltages: 5V, 12V, 15V, 24V
- Input to Output Isolation: 3000 VAC for 60 seconds
- Output to Case Isolation: 1500 VDC
- Operating Temperature: -40°C to +105°C
- Remote On/Off: Yes
- Remote Sense: Yes, compensates up to 10% of output voltage
- Efficiency: up to 92%
- Dimensions: Approximately 2.28 x 1.45 x 0.50 inches (57.9 x 36.8 x 12.7 mm)
- Compliance: EN50155, IEC60571, UL60950-1, EN55022 Class A
- Protection: Over temperature, short circuit, and overvoltage protection
- Cooling: Baseplate cooled
- Safety Approvals: IEC, EN50155, UL 60950-1

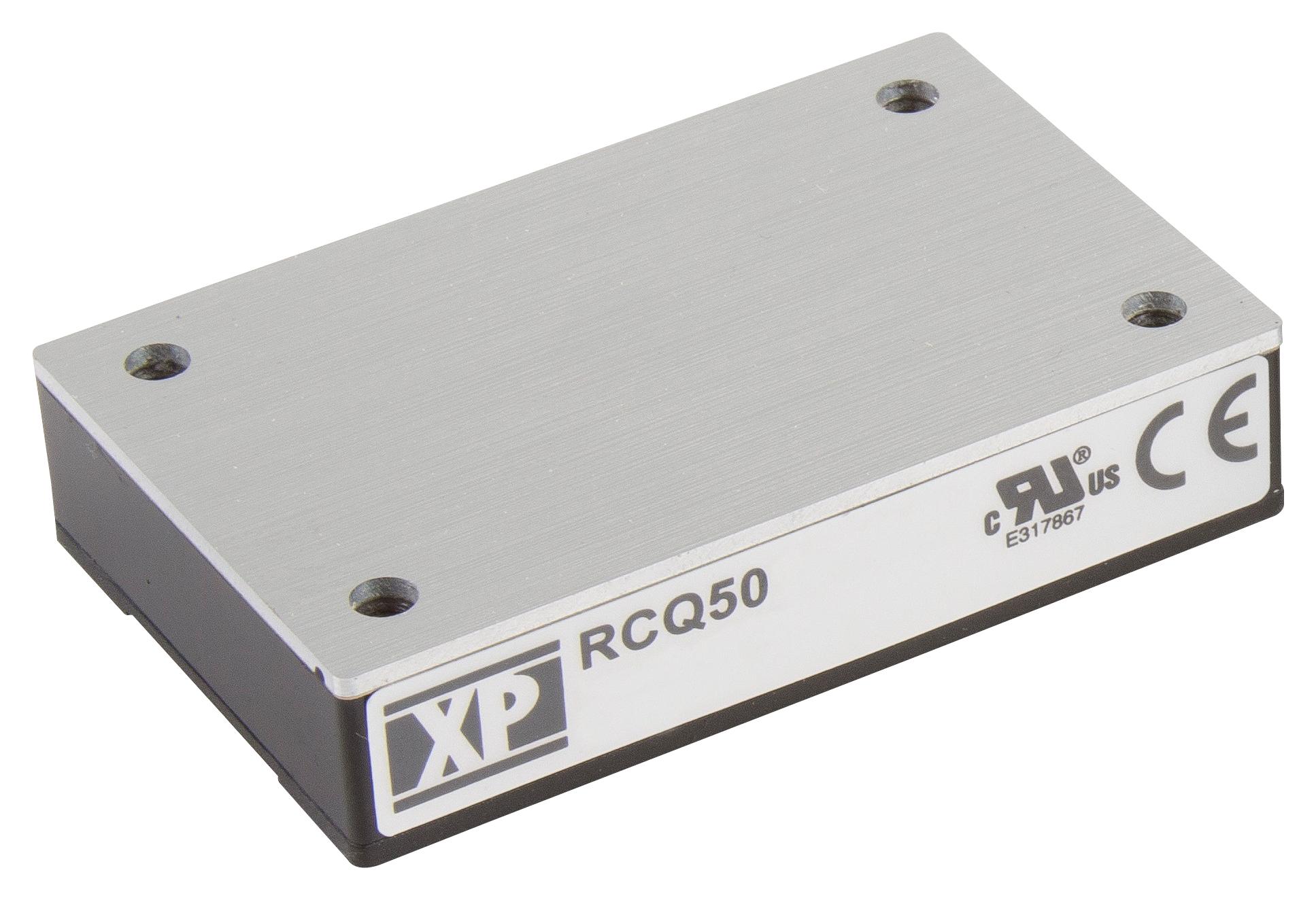

Buy the Buy XP Power RCQ50 Part Number RCQ5072S24 Online
Purchase the high-performing XP Power railway power converter RCQ50 series online today. Designed for demanding transportation and industrial applications, it offers reliable power supply with up to 50 Watts output, reinforced 3000VAC isolation, remote control, and a broad temperature range. Its compact size and high efficiency ensure optimal performance and durability in harsh environments. With safety certifications and EMC compliance, this power module is an excellent choice for power management in rail systems and other critical infrastructure projects.
Order your XP Power Series RCQ50 RCQ5072S24 today and ensure reliable power in railway and industrial projects with high efficiency and safety features.
Frequently Asked Questions
Where can I buy XP POWER RCQ5072S24?
You can click on the BUY or RFQ button to purchase RCQ5072S24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part RCQ5072S24?
You can download the RCQ5072S24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of RCQ5072S24?
XP POWER
