XP POWER CA12P5 High Voltage Converter
The CA series high-performance, precision regulated high voltage DC-DC converters are fully programmable from 0 to 100%. Featuring a quasi-sine wave oscillator, internal transformer shielding, and an isolated steel case, these converters significantly reduce EMI/RFI radiation to extremely low levels. They are suitable for applications such as photomultiplier tubes, avalanche photodiodes, solid-state detectors, electrophoresis, EO lenses, piezo devices, capacitor charging, and other areas requiring precise low noise, high voltage output, and stability. Key features include voltage monitoring and readback, a precision onboard reference, arc and short circuit protection, very low ripple (as low as 5 parts per million), high stability, external voltage or potentiometer programming, accessible calibration adjustments, and a sealed design capable of withstanding immersion cleaning processes. Proven for reliability with an MTBF exceeding 2.1 million hours per Bellcore TR-332 standards, all housed in a compact shielded case of just 1 cubic inch.
XP POWER CA12P5 High Voltage Converter Specifications:
- Output Voltage: 0 to +2000V
- Output Current: 0.5mA
- Ripple: as low as 5 ppm
- Temperature Coefficient: 25 ppm
- Input Voltage: 12V
- Power Supply Tolerance: ±10%
- Protection: Arc and short circuit
- Case Material: Zinc plated steel, sealed for immersion cleaning
- Isolation: Input ground connected to output ground
- Switching Frequency: 80-250kHz
- Operating Temperature: -10°C to +50°C
- MTBF: Exceeds 2.1 million hours
- Dimensions: 1 cubic inch (approximate)
- Certifications: UL/IEC/EN62368, RoHS compliant
- Environmental: Humidity up to 95% RH, non-condensing
- Construction: Solid vacuum encapsulation

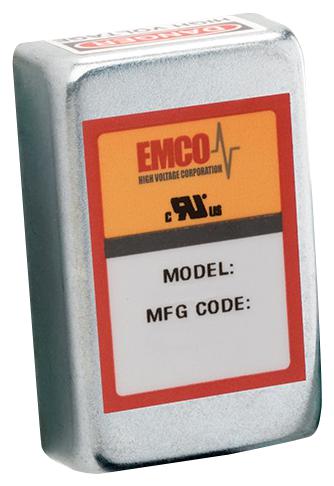

Buy the Buy XP Power High Voltage Converter Part Number CA12P5 Online
Experience the reliable performance of the XP Power high voltage converter designed for critical applications such as photomultiplier tubes, detectors, and electrophoresis. Fully programmable from 0 to 100%, this compact converter offers ultra-low ripple, high stability, and excellent EMI/RFI reduction. Its sealed, rugged case ensures durability even in immersion cleaning processes. Features include a precision onboard reference, voltage monitoring, arc and short circuit protection, and external calibration options. Ideal for laboratory, industrial, and research environments requiring consistent high voltage output with minimal noise.
Buy XP Power CA12P5 now and ensure precise, low ripple, high stability high voltage output for sensitive applications.
Frequently Asked Questions
Where can I buy XP POWER CA12P5?
You can click on the BUY or RFQ button to purchase CA12P5 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part CA12P5?
You can download the CA12P5 datasheet or visit the XP POWER website for support.
Who is the manufacturer of CA12P5?
XP POWER
