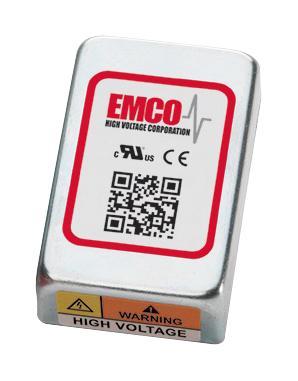

XP POWER C06N High Voltage Power Supply
The C Series high voltage power supplies are miniature, regulated, and designed for reliable operation in sensitive applications. These modules feature ultra-low ripple, EMI/RFI noise reduction, and a wide input voltage range of 11.5 to 16V. They can deliver adjustable output voltages from 0 to 8kV with programmable control from 0 to 100%. The units are housed in an isolated steel enclosure with optional gain calibration, high stability (<50ppm/°C), and feature reverse polarity protection, robustness, and thermal stability. Suitable for photomultiplier tubes, electron microscopy, and electrophoresis systems, these supplies offer excellent high-voltage performance, compact size, and customizable configurations for demanding laboratory and industrial use.
XP POWER C06N High Voltage Power Supply Specifications:
- Input Voltage: +11.5 to +16V
- Input Current: <100mA, no load; <250mA, full load
- Input Capacitance: 440uF low ESR
- Output Voltage Range: 0 to 8kV (C80 model), programmable from 0 to 100%
- Output Polarity: Positive and negative options available
- Programming Voltage: 0 to +5V, <100UA
- Response Time: <250 msec at full load
- Setpoint Accuracy: +/-1%
- Gain Adjustment: 5 to 10%
- Ripple and Noise: Very low, minimal EMI/RFI
- Stability: <0.01% per hour
- Temperature Coefficient: <50ppm/°C
- Operating Temperature: -10 to +60°C
- Storage Temperature: -20 to +90°C
- Enclosure Material: Zinc plated steel, with isolated case ground
- Certifications: RoHS compliant, UL 94V-0 listed encapsulant
Buy the Proven C Series – Reliable High Voltage DC Power Supplies for Industrial Applications
Explore the Proven C Series high voltage power supplies available for online purchase. These compact, regulated units provide up to 8kV with exceptional low ripple and EMI/RFI performance. Designed to operate reliably across various industrial and laboratory applications, they feature adjustable output, programmable control, and robust protection features. Ideal for photomultiplier tubes, electrophoresis, and electron microscopy, these supplies ensure precise voltage regulation, thermal stability, and easy calibration. Purchase online today for fast delivery and dependable high-voltage solutions.
Get Proven C Series high voltage power supplies today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy XP POWER C06N?
You can click on the BUY or RFQ button to purchase C06N from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part C06N?
You can download the C06N datasheet or visit the XP POWER website for support.
Who is the manufacturer of C06N?
XP POWER
