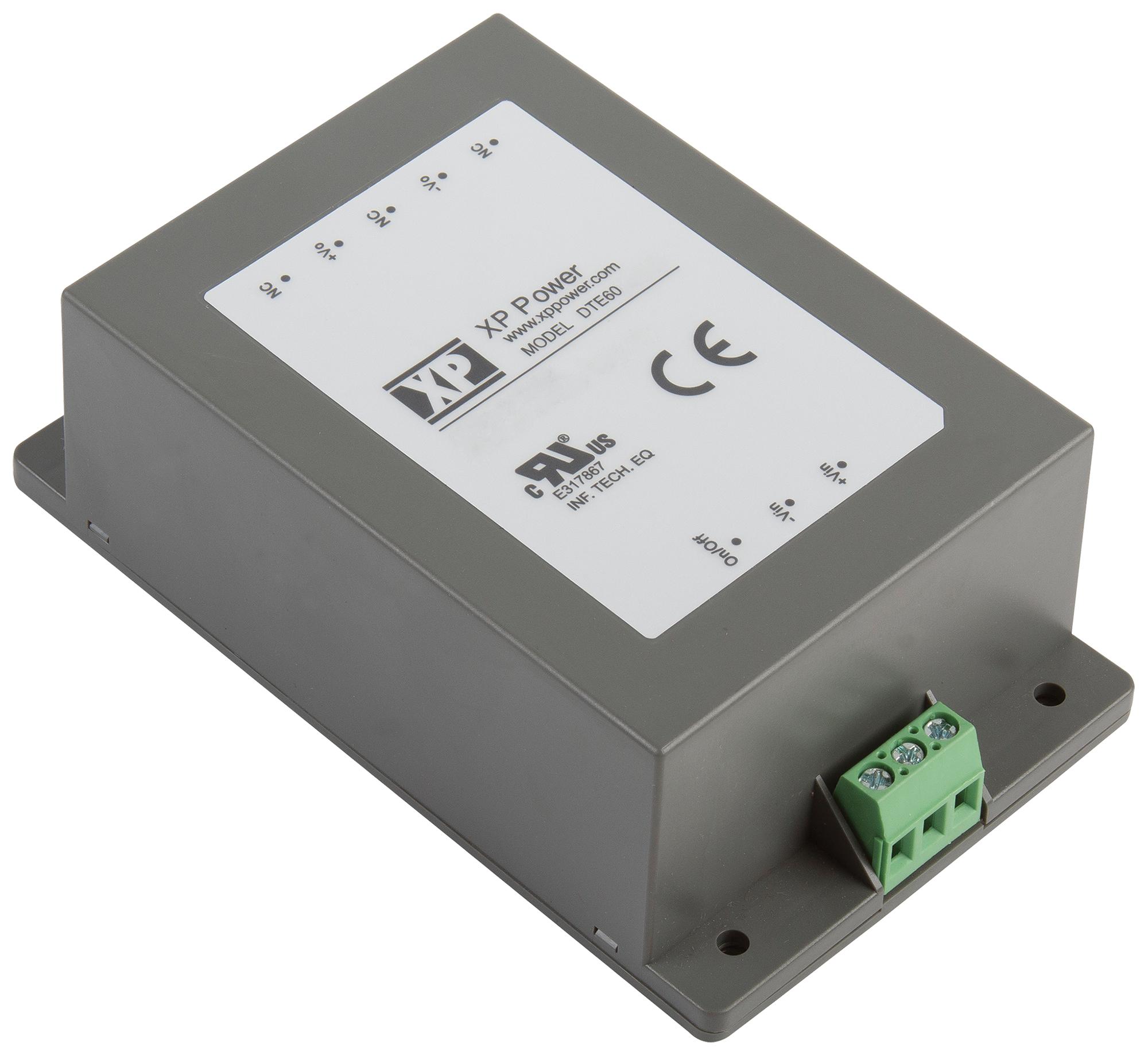

XP POWER DTE6048S5V1 Industrial DC-DC Converter
The DTE60 series is a 60W fully encapsulated, chassis-mount DC to DC converter designed for industrial applications. It features a wide 4:1 input voltage range, high efficiency up to 92%, and operating temperatures from -40°C to 95°C. The converter includes protection features such as short circuit trip and restart, overload protection, and an isolation voltage of 2500VDC. Additional features include remote On/Off control and EN55022 Conducted Level A immunity without external components. Suitable for commercial and industrial use, it offers robust safety and performance standards.
XP POWER DTE6048S5V1 Industrial DC-DC Converter Specifications:
- Power: 60 Watts
- Input Voltage Range: 24V (26-78 Vdc) or 48V (75-150 Vdc)
- Output Voltage: 5 V, 12 V, 24 V, or 48 V
- Output Current: 18-75 A depending on model
- Efficiency: up to 92%
- Isolation Voltage: 2500 VDC input/output
- Operating Temperature: -40°C to +95°C
- Full Power Temperature: Up to 80°C with derating
- Protection: Short circuit trip and restart, overload, overvoltage
- Remote On/Off: Yes
- Certifications: IEC60950-1, UL60950-1, CB, TUV, EN55022 Class A
- Dimensions: 4.1 x 2.67 x 1.5 inches (112 x 67.8 x 38 mm)
- MTBF: 750,000 hours
- Cooling: Natural convection
- Vibration: 70-500 Hz at 2g, EN60068-2-6
Buy the Buy XP Power DTE60 Series Part Number DTE6048S5V1 Online
Purchase the XP Power DTE60 series industrial DC-DC converter online today. Engineered for robustness, it offers a 60W output, wide input voltage range, high efficiency up to 92%, and full safety protections. With remote On/Off control, excellent isolation of 2500VDC, and compliance with IEC, UL, and TUV safety standards, this rugged converter is ideal for demanding industrial applications. Quick online ordering guarantees reliable power solutions for commercial and industrial needs, ensuring long-term durability and optimal performance with minimal downtime.
Get XP Power DTE6048S5V1 today—built for industrial robustness, high efficiency, and long-lasting reliability in demanding environments.
Frequently Asked Questions
Where can I buy XP POWER DTE6048S5V1?
You can click on the BUY or RFQ button to purchase DTE6048S5V1 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DTE6048S5V1?
You can download the DTE6048S5V1 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DTE6048S5V1?
XP POWER
