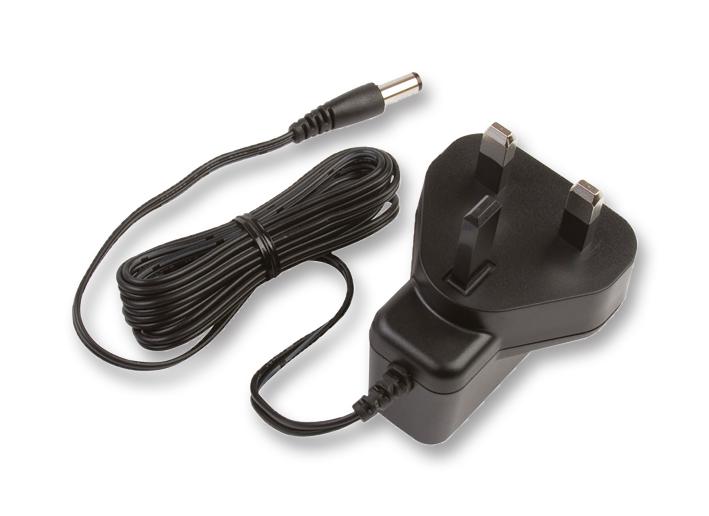

XP POWER VEL36US240UKJA AC-DC Power Supply
The VEL36 Series AC-DC power supplies are 36-watt units designed for versatility and efficiency, complying with Energy Efficiency Level VI standards. Featuring universal input, fixed mains connectors, and outputs from 12 V to 24 V, these power supplies are ideal for cost-sensitive applications requiring reliable power and industry-leading performance. Their compact design and low no-load power consumption make them suitable for a wide range of electronic devices, with excellent efficiencies, robust protection features, and compliance with safety standards across different regions.
XP POWER VEL36US240UKJA AC-DC Power Supply Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 63 Hz
- Input Current: 0.8 A at 115 VAC, 0.5 A at 230 VAC
- Output Voltages: 12 V, 15 V, 18 V, 24 V
- Output Current: up to 3000 mA
- Efficiency: 87% at 25%, 50%, 75% load
- Power Factor: EN61000-8-2, class A
- Total Regulation: 5%
- Start Up Delay: 4 seconds
- Hold Up Time: 8 ms at full load, 100 VAC
- Isolation: 3000 V AC Input to Output
- Operating Temperature: 0 to +60°C (derates above 45°C)
- Dimensions: US: 3.70 x 1.38 x 1.83 inches (94.0 x 35.0 x 46.6 mm), EU: 3.70 x 1.38 x 2.55 inches (94.0 x 35.0 x 64.8 mm), UK: 3.70 x 1.38 x 2.11 inches (94.0 x 49.6 x 53.6 mm)
- Weight: approximately 0.32 - 0.34 lbs (1470 - 155.0 g)
- Certifications: UL, cUL, TUV EN60950-1, China Compulsory Certification
- Safety: Meets DOE Level VI, CoC Tier 1, EMC, and harmonic standards
- Operating Humidity: 5-95% RH, non-condensing
- Cooling: Natural convection
- Vibration: 70-300 Hz, 2 g for 15 mins per axis
Buy the Buy XP Power AC-DC Power Supply Part Number VEL36US240UKJA Online
Experience the convenience of purchasing the XP Power VEL36 series AC-DC power supplies online. These 36-watt units offer high efficiency, low no-load power consumption, and multiple output voltages suitable for various electronic applications. With compact design, universal input range, and robust safety features, they ensure reliable performance across different regions. Order now to secure industry-leading performance, safety compliance, and energy-saving features that support your project’s success and reduce operational costs efficiently.
Buy XP Power VEL36US240UKJA now and enjoy reliable, efficient power with low no-load consumption for your electronic projects.
Frequently Asked Questions
Where can I buy XP POWER VEL36US240UKJA?
You can click on the BUY or RFQ button to purchase VEL36US240UKJA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEL36US240UKJA?
You can download the VEL36US240UKJA datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEL36US240UKJA?
XP POWER
