XP POWER DTJ1548D12 DC-DC Converter
The DTJ15 Toya DC-DC Converter by XP Power offers a high-efficiency, reliable power solution with regulated outputs from 3.3V to 30VDC, wide input voltage range, and isolation up to 3kVDC. It features remote on/off, voltage trim, short circuit and reverse polarity protections, and operates from -40°C to +100°C, delivering full power to 80°C. Its compact chassis mount design includes optional heatsinks and DIN rail clips, suitable for industrial and commercial applications requiring safe, robust, and adjustable power modules with UL62368-1 safety approvals.
XP POWER DTJ1548D12 DC-DC Converter Specifications:
- Input Voltage Range: 9-36 VDC; 8-75 VDC for 24V & 48V nominal inputs
- Output Power: 15 Watts
- Output Voltage: 3.3V to 30V DC, regulated with remote on/off and voltage trim
- Input Current: Varies per model, typical 2mA at nominal input voltage when off
- Isolation: 3000 VDC for 60 seconds
- Dimensions: 3.00 inches x 1.24 inches x 0.77 inches (76.2 mm x 31.4 mm x 19.4 mm)
- Operating Temperature: -40°C to +100°C, full power to 80°C, derating occurs beyond
- Efficiency: Up to 89%, typical
- Protection: Short circuit, reverse polarity, overload, overvoltage, safe lockout at >176V
- Certifications: UL62368-1, EN55032 Class A conducted emissions, CE, UKCA
- Cooling: Natural convection with optional heatsinks
- Construction: Lightweight copper case, epoxy potting, non-conductive black plastic case
- Switching Frequency: Approximately 27-30 kHz
- MTBF: Over 4 million hours
- Relative humidity: Non-condensing, 5-95%

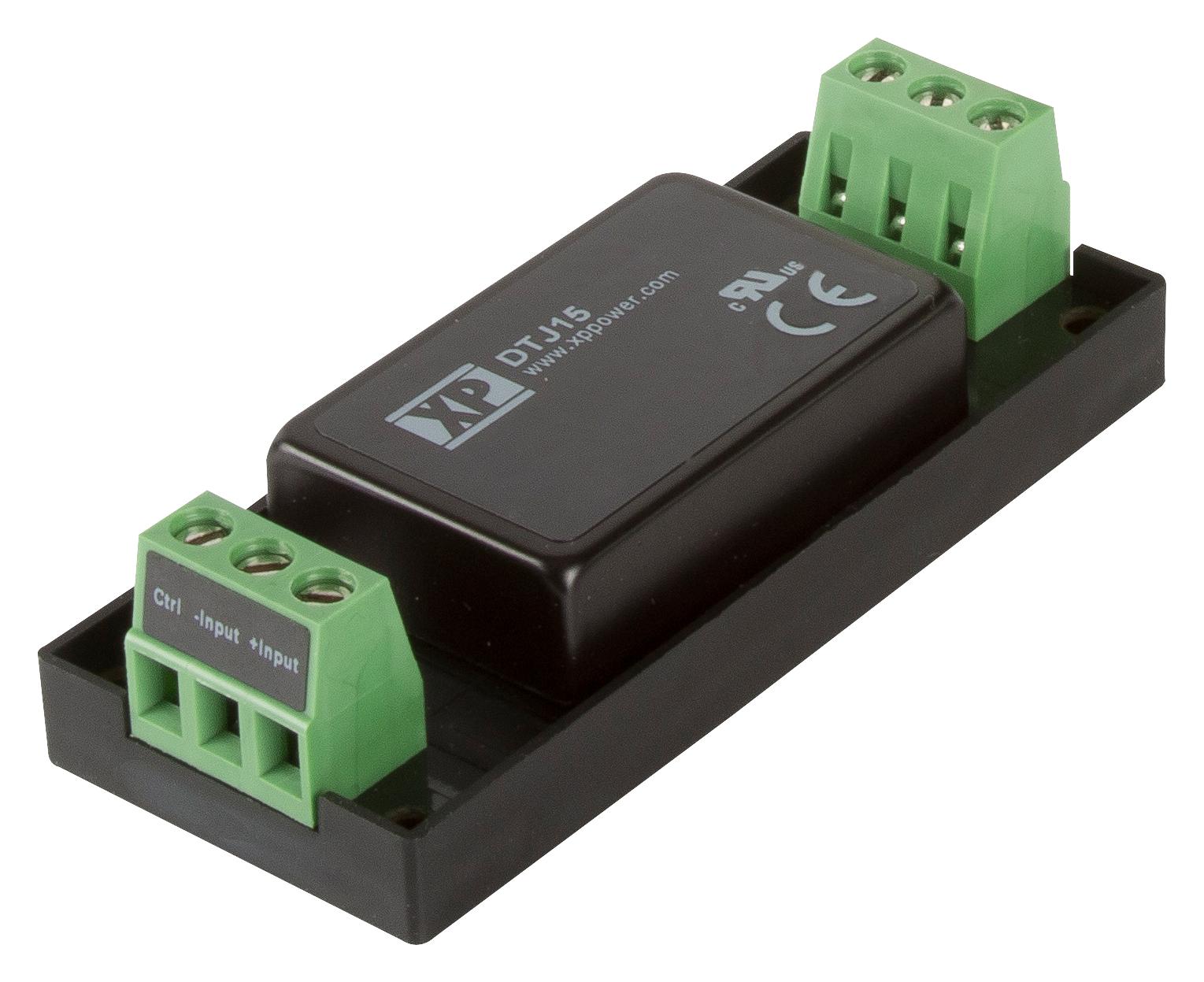

Buy the Buy XP Power DTJ1548D12 DC-DC Converter Part Number DTJ1548D12
Enhance your industrial power management with the XP Power DTJ15 Toya DC-DC Converter. This compact, regulated modular power supply delivers up to 15 Watts with wide input voltage adaptability, high isolation, and certified safety standards. Designed for rugged industrial settings, it features remote on/off, adjustable voltage trim, short circuit, and reverse polarity protection. Operating efficiently from -40°C to +100°C and ensuring full output power up to 80°C, it ensures dependable performance, easy integration, and long-term durability for your critical applications.
Buy XP Power DTJ15 Toya now and experience unmatched reliability and high efficiency in demanding industrial environments.
Frequently Asked Questions
Where can I buy XP POWER DTJ1548D12?
You can click on the BUY or RFQ button to purchase DTJ1548D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DTJ1548D12?
You can download the DTJ1548D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DTJ1548D12?
XP POWER
