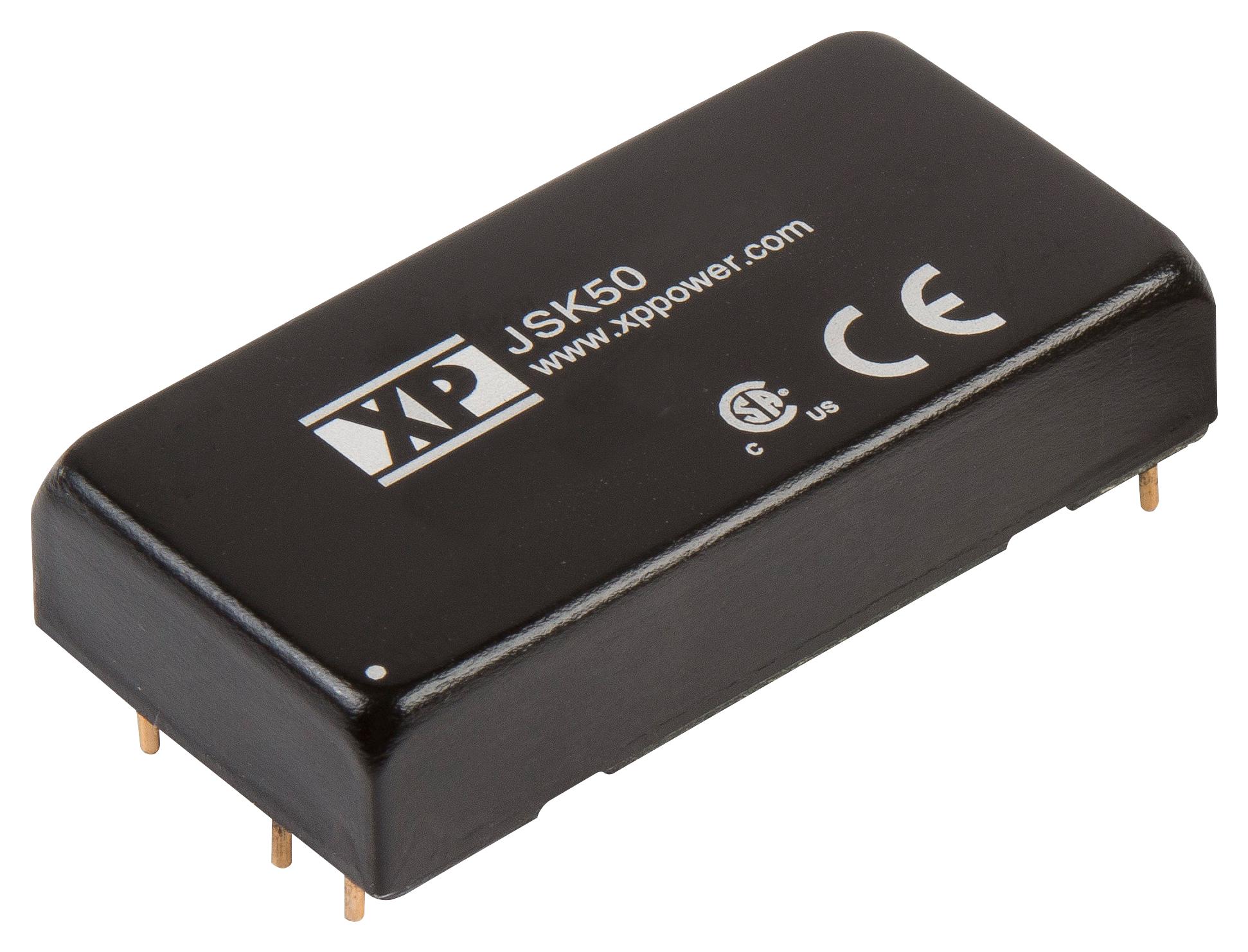

XP POWER JSK5024S05 DC-DC Converter Module
The JSK50 series offers up to 50 Watts of regulated power, with a wide 2:1 input voltage range suitable for 12V, 24V, and 48V DC applications. It features five independent models with output voltages of 3.3V, 5V, 12V, 15V, and 24V, encompassing 15 configurations. Certified to IEC 60950-1 and UL safety standards, it includes Class A noise emissions with external filters. Operating efficiently from -40°C to 105°C, the series features a compact 2" x 1" metal case, 1500VDC isolation, remote On/Off, high power density, and optional heatsink, ideal for industrial power management.
XP POWER JSK5024S05 DC-DC Converter Module Specifications:
- Power Output: 50 Watts
- Input Voltage Range: 8V to 36V (24V nominal), 36V to 75V (48V nominal)
- Output Voltages: 3.3V, 5V, 12V, 15V, 24V
- Output Current: varies per model, up to rated power
- Isolation: 1500 VDC
- Operating Temperature: -40°C to +105°C with derating
- Cooling: Natural convection
- Efficiency: up to 90%
- Dimensions: 2" x 1" x 0.43" (50.8 x 25.4 x 11.0 mm)
- Weight: approximately 0.066 lbs (30 g)
- Safety Certifications: UL60950-1, IEC 60950-1
- Additional Features: Remote On/Off, high power density, optional heatsink available
- Conducted Noise: Class A (with external filters)
- Isolation Resistance: >10 MΩ at 500 VDC
- Switching Frequency: approx. 285-320 kHz
- Applicable Standards: EN55022 Class A, UL, CE, RoHS
Buy the XP Power Series Power Supply: JSK50 Part 5024S05
Enhance your power solutions with the XP Power JSK50 series DC-DC converter module. Delivering up to 50 Watts of reliable, efficient power, it features a wide input voltage range, high safety standards, and a compact design suitable for industrial applications. With optional heatsinks and remote On/Off control, this converter ensures versatility and robust performance from -40°C to 105°C. Trusted in power management systems globally, the JSK50 series guarantees durability, safety, and efficient power regulation for demanding environments.
Order your XP Power Series JSK50 5024S05 today and give your industrial projects the dependable, compact power supply they deserve.
