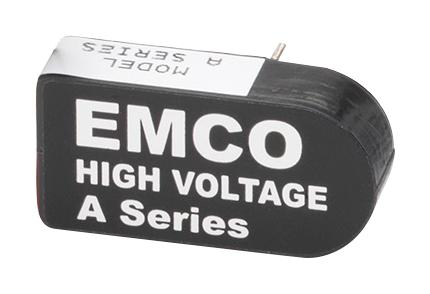

XP POWER A50P5 High Voltage DC Converter
The A50P5 is a compact, high-voltage DC to HV DC converter from the A Series, designed for demanding industrial and scientific applications. It provides an adjustable output voltage up to 5000V, with load-dependent regulation and excellent line and load stability. Featuring a low profile of only 0.25 inches in height and precise control via a dedicated control pin, it is ideal for use in electrophoresis, capacitor charging, photomultiplier tubes, and avalanche photodiodes. The converter is encapsulated, UL 94V-0 rated, and protected against short circuits, ensuring reliability in critical applications. It operates over a temperature range of -25°C to +75°C, with natural convection cooling and high insulation of 500V between input and output.
XP POWER A50P5 High Voltage DC Converter Specifications:
- Output Voltage: up to 5000V
- Output Current: 3mA
- Input Voltage: 5V (typical)
- Ripple and Noise: <1.2% of Vout
- Isolation: 500V between input and output
- Operating Temperature: -25°C to +75°C
- Cooling: Natural convection
- Dimensions: Height 0.25 in, Width 0.45 in, Length varies with model (up to 1.33 inches)
- Construction: Solid epoxy encapsulation, UL 94V-0 rated
- Short circuit protection: Yes
- Tolerances: Output voltage ±10%, Ripple <1.2%
- Compliance: UL IEC/UL/CSA 62368, RoHS2 & 3
- Humidity: Up to 95% RH, non-condensing
- Construction: Aluminum anodized plate, epoxy encapsulated
- Pin Tolerance: +0.005 inch
Buy the XP Power A50P5 – Reliable High Voltage Converter for Industrial Applications
Enhance your projects with the XP Power A50P5 high-voltage DC converter, offering adjustable output up to 5000V with load regulation and protection features. Its compact design measures just 0.25 inches in height and provides reliable insulation up to 500V. Suitable for electrophoresis, capacitor charging, and photomultiplier applications, the A50P5 guarantees performance under temperature ranges from -25°C to +75°C, with natural convection cooling. Conveniently available online, it ensures quick delivery for your critical industrial and scientific tasks.
Order your XP Power A50P5 high-voltage converter today and benefit from its reliable performance in demanding industrial and scientific applications.
Frequently Asked Questions
Where can I buy XP POWER A50P5?
You can click on the BUY or RFQ button to purchase A50P5 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part A50P5?
You can download the A50P5 datasheet or visit the XP POWER website for support.
Who is the manufacturer of A50P5?
XP POWER
