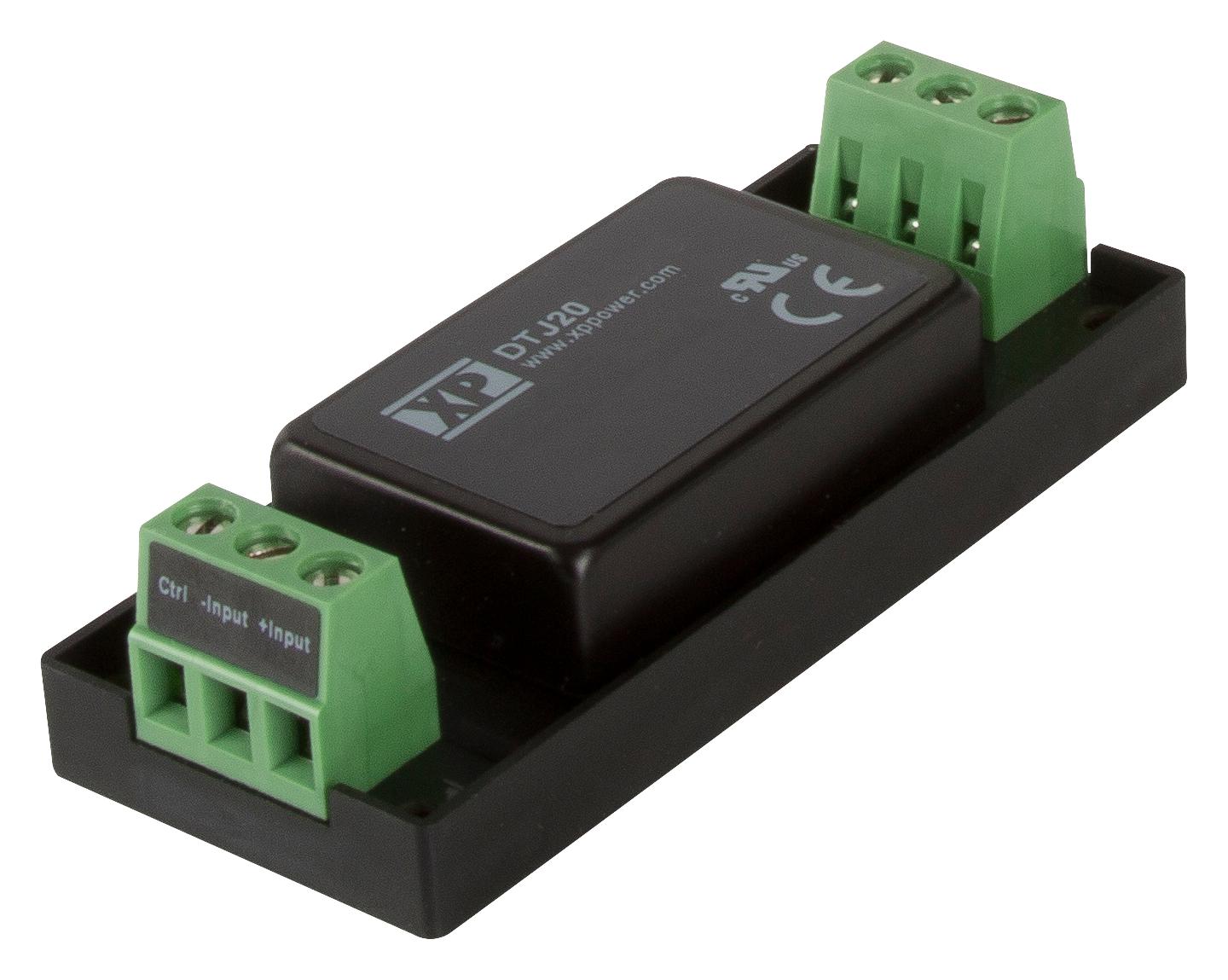

XP POWER DTJ2024D12 DC Power Supply
The DTJ20 series of chassis mount DC to DC power supplies offers reliable power conversion with features suitable for industrial and commercial applications. Constructed from lightweight materials, these power supplies include short circuit protection, input reverse polarity protection, and soft start functionality. Key features include a wide 4:1 input voltage range, safety approvals from IEC, UL, and cUL 62368-1 standards, EN55032 Class A ruggedness, remote on/off with voltage trimming capabilities, and 3KVDC isolation. They operate over a temperature range from -40°C to +100°C and deliver full power up to 80°C. The compact dimensions are 3.00 inches by 1.24 inches by 0.77 inches (76.2mm x 31.4mm x 19.4mm).
XP POWER DTJ2024D12 DC Power Supply Specifications:
- Input Voltage Range: 9-36 VDC; 8.75-75 VDC for 24V & 48V nominal inputs
- Output Voltage: 3.3V to 30VDC (single & dual outputs)
- Output Current: Up to 350A depending on model
- Isolation: 3000 VDC for 60 seconds
- Efficiency: Up to 89%
- Operating Temperature: -40°C to +100°C
- Dimension: 3.00 inches x 1.24 inches x 0.77 inches (76.2mm x 31.4mm x 19.4mm)
- Protection: Short circuit, reverse polarity, overvoltage, overload
- Safety: UL, IEC 62368-1 certified, EN55032 Class A compliance
- Features: Remote on/off, voltage trim, soft start, heatsink options, DIN rail mounting
Buy the XP Power DTJ20 – Reliable Industrial DC-DC Converter for Commercial Applications
Secure your industrial power conversion needs by purchasing the XP Power DTJ20 series online today. These compact, lightweight modules provide high efficiency, wide input ranges, and robust safety features, enabling seamless integration into various industrial and commercial systems. With protections against short circuits, reverse polarity, and configurable output voltage trims, they ensure reliable operation even in harsh conditions. Their safety standards and optional heatsink and DIN rail mounting make the DTJ20 series the ideal choice for demanding power applications. Order now for fast delivery and dependable performance.
Buy XP Power DTJ20 now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy XP POWER DTJ2024D12?
You can click on the BUY or RFQ button to purchase DTJ2024D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DTJ2024D12?
You can download the DTJ2024D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DTJ2024D12?
XP POWER
