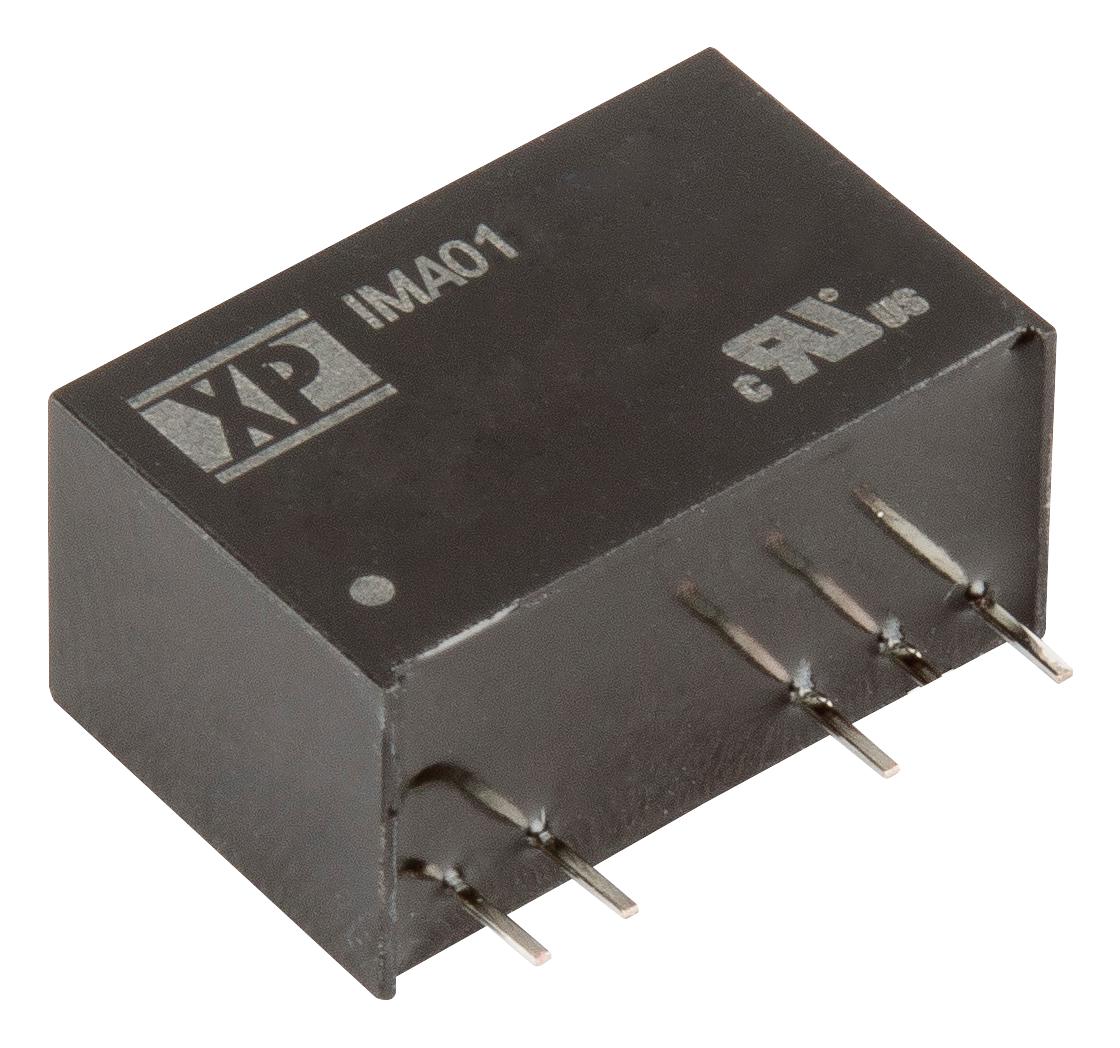

XP POWER IMA0105D05 DC-DC Converter
The IMA01 series is a compact 1W DC-DC converter in a SIP7 package, designed for medical and industrial applications. It supports single and dual outputs, operates from -40°C to 75°C at full load, and features 4000VAC isolation with 1 x MOPP at 300VAC. The converter offers low patient leakage current of 2 microamperes, continuous short circuit protection, and compliance with safety standards like UL, EN60601-1, CSA, and CE. Its robust design makes it ideal for medical power supplies, control systems, and industrial electronics requiring reliable, high-isolation power conversion, with stable operation across wide temperature ranges.
XP POWER IMA0105D05 DC-DC Converter Specifications:
- Power: 1 Watt
- Package: SIP7
- Output Options: Single and Dual
- Input Voltage Range: 10.8-13.2V, 13.5-16.5V, 21.6-26.4V
- Input Current: Measured at nominal voltage
- Output Voltage: 5V, 12V, 15V, 24V (see models and ratings)
- Efficiency: Typical 75%
- Isolation Voltage: 4000 VAC
- Maximum Temperature: -40°C to +75°C operational
- Leakage Current: 2 μA
- MTBF: 2.5 million hours
- Safety Standards: UL, EN60601-1, CSA, CE
- Operating Temperature: -40°C to +75°C
- Storage Temperature: -40°C to +125°C
- Humidity: 25-95% RH non-condensing
- Cooling: Natural convection
- Switching Frequency: 50-100 kHz
- Power Density: 82 W/in³
- Dimensions: 0.77 x 0.36 x 0.44 inches (19.5 x 9.2 x 11.1 mm)
Buy the Buy XP Power IMA01 Series DC-DC Converter Part Number IMA0105D05 Online
Purchase the XP Power IMA01 Series DC-DC Converter online today to guarantee reliable power conversion for medical, industrial, and control systems. This 1-Watt device, in a compact SIP7 package, supports wide input voltages, provides high isolation of 4000VAC, and maintains a stable output from -40°C to 75°C. Its low patient leakage current of 2 microamperes enhances safety in medical applications. Designed for durability and safety, order now to optimize your projects with high-quality, certified power modules that meet global standards.
Order your XP Power IMA01 Series IMA0105D05 today and ensure your medical and industrial projects have dependable power with low leakage current.
Frequently Asked Questions
Where can I buy XP POWER IMA0105D05?
You can click on the BUY or RFQ button to purchase IMA0105D05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMA0105D05?
You can download the IMA0105D05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMA0105D05?
XP POWER
