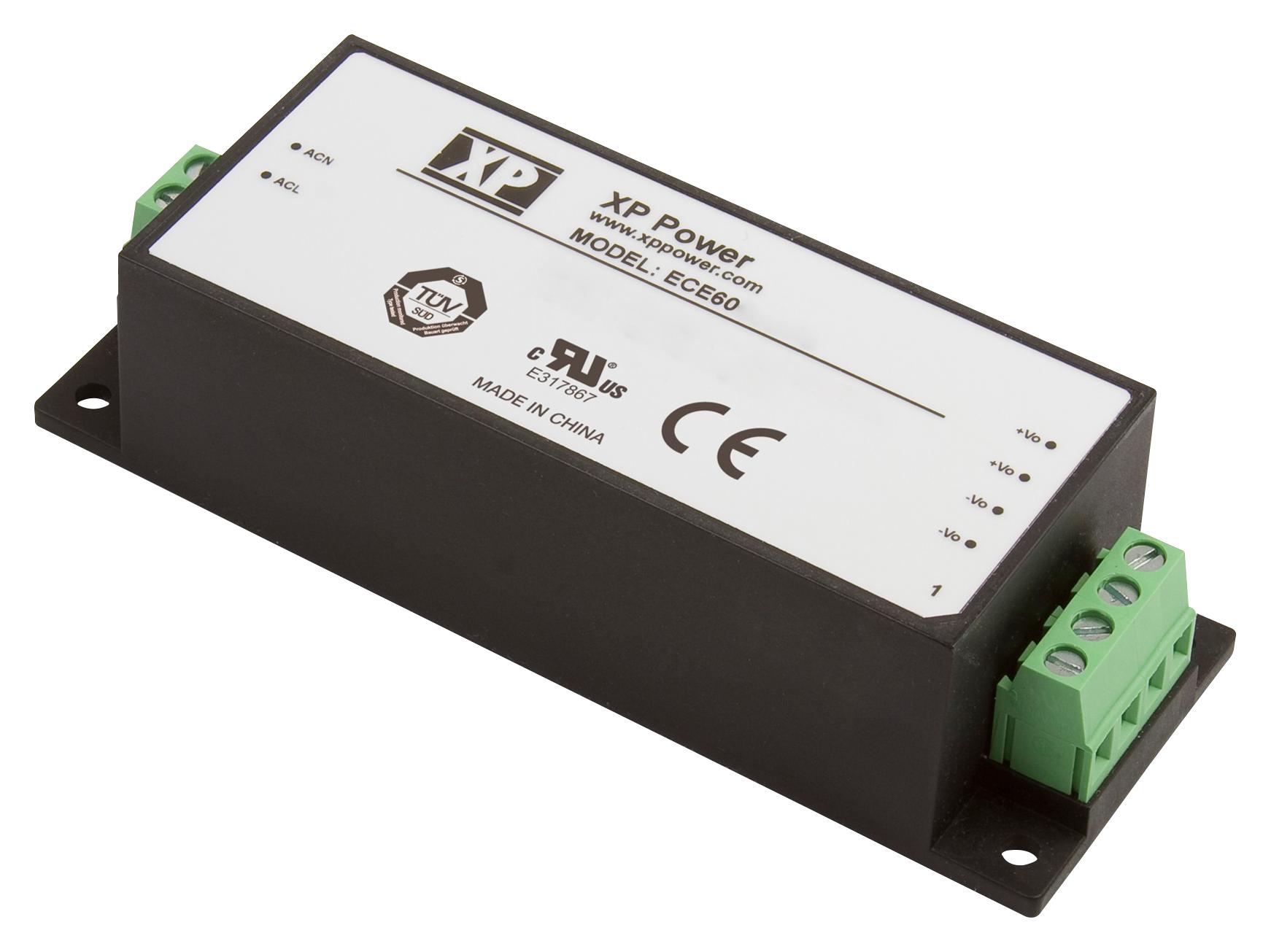

XP POWER ECE60US03SD industrial power supply
The ECE60 series offers compact, encapsulated 60W AC-DC power modules with high efficiency and low no-load power consumption. Available in PCB and chassis mount options, they provide output voltages from 3.3V to 48V, with peak load capabilities up to 130% of nominal power for 30 seconds. Operating within -40°C to +70°C, these modules are designed for demanding industrial applications requiring high power density, reliable performance, and compliance with safety and EMI standards. They feature eco-friendly design, effective cooling, and comprehensive certifications for versatile integration.
XP POWER ECE60US03SD industrial power supply Specifications:
- Power Output: 60W
- Output Voltage: 3.3V, 5V, 9V, 12V, 15V, 24V, 36V, 48V
- Output Current: up to 10A at lower voltages, 1.254A at 48V
- Input Voltage Range: 85-264 VAC, 47-63 Hz
- Efficiency: 79-89%, measured at 25-100% load
- No Load Power: <0.3 W at 12-36V, <0.5 W at 48V
- Temperature Range: -40°C to +70°C
- Peak Load Capability: up to 130% for 30 seconds
- Dimensions: ECE60O - 3.60 x 1.50 x 1.10 inches; ECE60O-S - 4.45 x 1.57 x 1.12 inches
- Protection: Overload, short circuit, overvoltage
- Isolation Voltage: 3000V AC input to output
- Certifications: UL, CSA, EN 60950-1, compliant with EN55022 Level B EMI
- Cooling: Convection-cooled
- Mountings: PCB and chassis with screw terminals, optional DIN clip
- Operating Altitude: up to 3048 meters
- Vibration: 2g, 10 Hz to 500 Hz
Buy the Buy Ultra Power AC-DC Power Modules Part Number ECE60US03SD Online
Discover the reliable and compact AC-DC power module, ideal for demanding industrial projects requiring high efficiency and peak load support. The ECE60 series features a 60-watt capacity, output voltages from 3.3V to 48V, and wide operating temperature range from -40°C to +70°C. With certifications including UL and CSA, and options for PCB or chassis mounting, this module ensures versatile and safe integration. Perfect for applications needing peak load capability up to 130% for 30 seconds, it delivers optimal performance with low no-load power consumption. Buy online today for quick delivery and expert support.
Order your Ultra Power Series ECE60US03SD today and ensure reliable, efficient power supply for your industrial applications with high peak load capabilities.
