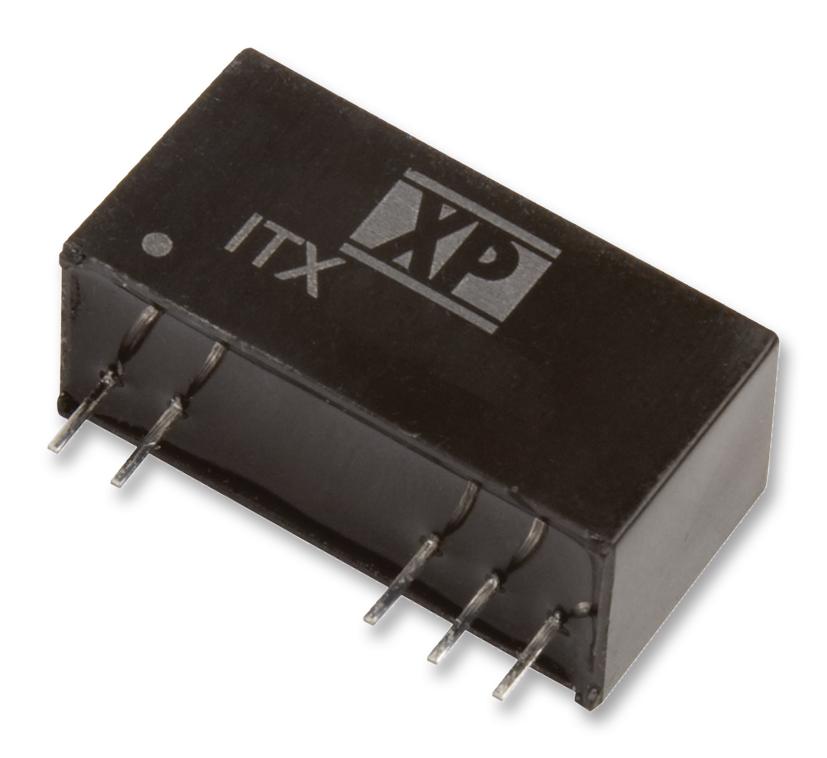

XP POWER ITX1215SA DC-DC Converter
The ITX Series DC-DC Converter offers a compact 6-watt solution with high efficiency, excellent isolation options up to 3000 VDC, and operating temperature range from -40°C to +90°C. Featuring a SIP-8 plastic case, it provides single and dual outputs, remote control capabilities, and a 3-year warranty. Ideal for industrial and electronics applications, its small size (0.86 x 0.44 x 0.36 inches) and wide input voltage range ensure reliable performance in demanding conditions, supporting various voltage configurations and optional high isolation features.
XP POWER ITX1215SA DC-DC Converter Specifications:
- Power: 6 Watt
- Input Voltage Range: 4.5V to 36V
- Output Voltage: 3.3V, 5V, 12V, 15V, etc.
- Output Current: up to 1300 mA
- Isolation Voltage: 1500 VDC, optional 3000 VDC
- Operating Temperature: -40°C to +90°C
- Case Material: SIP-8 Plastic
- Dimensions: 0.86 x 0.44 x 0.36 inches (21.85 x 11.1 x 9.2 mm)
- Efficiency: Up to 77%
- Remote Control: Available
- Warranty: 3 Years
- Switching Frequency: 15 MHz
- Protection: Short circuit with auto recovery, high isolation resistance 10^9 Ω
- Storage Temperature: -55°C to +125°C
- Humidity: 95% RH non-condensing
- Certifications: UL, CSA
- Weight: Approx. 4.8 g
Buy the XP Power Series ITX DC-DC Converter: ITX1215SA
Experience high efficiency and reliability with the XP Power ITX Series DC-DC Converter. Compact, lightweight, and capable of operating in extreme temperatures, it is ideal for industrial, automation, and electronics projects. Featuring optional high voltage isolation up to 3000 VDC, remote control capability, and broad input voltage range, it ensures versatile integration into your systems. Manufactured with high-quality materials, it guarantees long-term performance and safety compliance. Order online today to benefit from quick delivery, excellent support, and trusted quality for your power conversion needs.
Get XP Power ITX1215SA today—built for precision, reliability, and long-lasting durability in demanding electronic applications.
Frequently Asked Questions
Where can I buy XP POWER ITX1215SA?
You can click on the BUY or RFQ button to purchase ITX1215SA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITX1215SA?
You can download the ITX1215SA datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITX1215SA?
XP POWER
