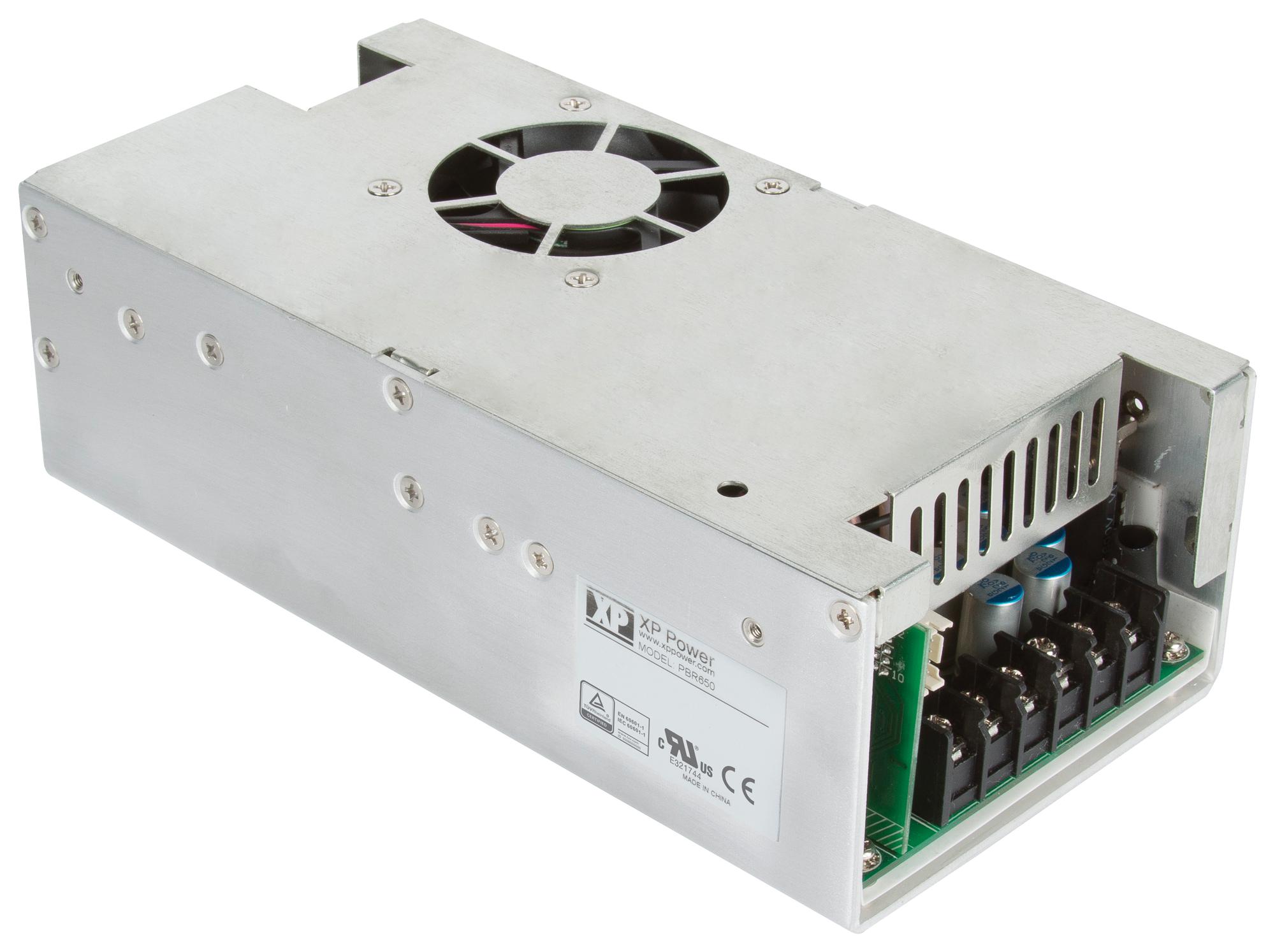

XP POWER PBR650PS36C Medical Power Supply
The PBR650 series offers high-performance AC-DC power supply units in a compact 4 x 8 x 2.58-inch package, providing 600-650W of continuous power. Specifically designed for medical applications, these supplies feature BF rated insulation for patient safety, operate reliably at altitudes up to 5,000 meters, and include essential functions such as 5V standby, AC OK, inhibit, and remote sense. They comply with Class B emissions, ensuring electromagnetic compatibility, and are suitable for medical environments requiring high safety and performance standards.
XP POWER PBR650PS36C Medical Power Supply Specifications:
- Input Voltage: 80-264 VAC
- Input Frequency: 47-63 Hz
- Input Current: 8.4/4.2 A (115/230 VAC)
- Output Power: 600-650 Watts
- Output Voltage Options: 12V, 15V, 18V, 24V, 28V, 36V, 48V, 57V
- Ripple & Noise: 120-570 mV depending on model
- Efficiency: 90%
- Isolation: Input to Ground 1500 VAC, Output to Ground 1500 VAC
- Operating Temperature: -10°C to +50°C (derates at higher temps)
- Storage Temperature: -40°C to +85°C
- Humidity: 5-95% RH, non-condensing
- Dimensions: 4 x 8 x 2.58 inches
- Weight: Approximately 4.4 lbs (2000 g)
- Certifications: UL60601-1, CE, UKCA, CSA, CB
- EMC Standards: EN55011/EN55032 Class B, EN61000-3-2, EN61000-3-3
- Overvoltage Protection: 115-140% latching
- Overcurrent Protection: 115-140% trip & restart
- Thermal Shutdown: Protected and latching
- Inrush Current: 30/60 A (cold start)
- MTBF: 190,000 hours
- Additional Features: Includes remote sense, inhibit function, and 5V standby output
Buy the XP Power PBR650 U–Reliable Medical Power Supply for Industrial Applications
Experience the reliable performance of the XP Power PBR650 series, a medical-grade power supply delivering 600-650W in a compact 4 x 8-inch package. Designed for demanding medical applications, it features BF rated insulation, high altitude operation up to 5,000 meters, and comprehensive safety and EMC compliance including UL60601-1. Its versatile features include a 5V standby supply, remote sense, AC OK, and inhibit functions. Perfect for critical environments requiring high safety, efficiency, and durability, order online today for fast delivery.
Get XP Power PBR650 today—built for medical-grade reliability, high efficiency, and continuous performance in demanding environments.
Frequently Asked Questions
Where can I buy XP POWER PBR650PS36C?
You can click on the BUY or RFQ button to purchase PBR650PS36C from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part PBR650PS36C?
You can download the PBR650PS36C datasheet or visit the XP POWER website for support.
Who is the manufacturer of PBR650PS36C?
XP POWER
