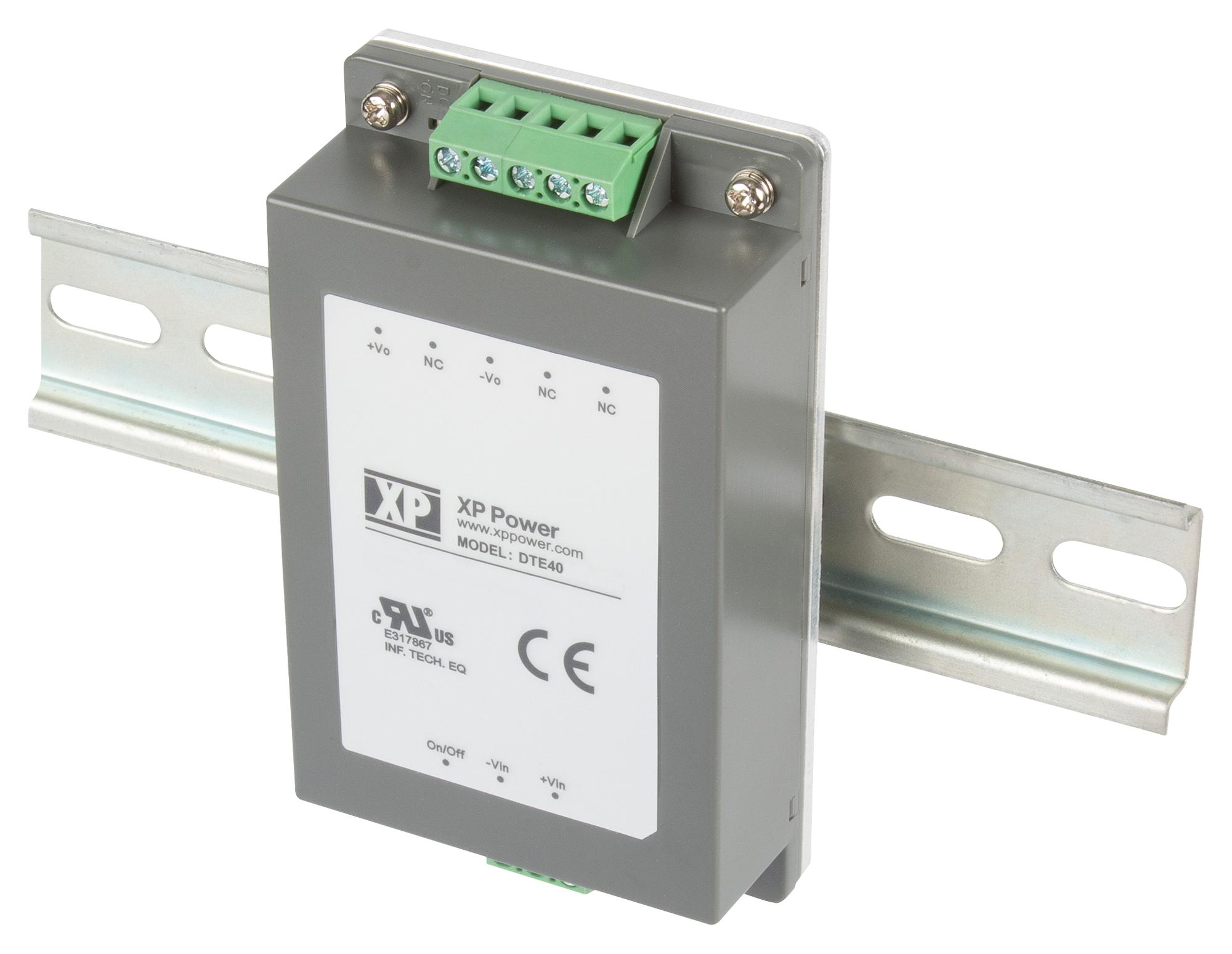

XP POWER DTE4024S12D DC-DC Converter
The DTE40 series are encapsulated 40W DC-DC converters designed for reliable industrial power applications. They feature regulated single outputs from 24VDC to 48VDC, wide 4:1 input range, and robust construction with fully encapsulated chassis mount option. The series offers optional DIN rail mounting, IEC/UL/cUL62368-1 safety approvals, remote on/off, 2.5kVDC isolation, and operates efficiently over a temperature range from -40°C to +95°C. With high MTBF and protections against short circuits, overloads, and undervoltage, these converters are ideal for demanding industrial environments.
XP POWER DTE4024S12D DC-DC Converter Specifications:
- Input Voltage Range: 8-75 VDC for 48V models, 9-36 VDC for 24V models
- Output Voltage: 24VDC or 48VDC with regulated regulation ±5%
- Output Current: up to 3.33A (48V) or 2.45A (24V)
- Efficiency: 90% typical at full load
- Isolation Voltage: 2.5kVDC input/output
- Operating Temperature: -40°C to +95°C
- Dimensions: 4.75 x 2.51 x 1.01 inches (112 x 63.8 x 25.6 mm)
- Protection: Input undervoltage, short circuit, overload, overvoltage, and thermal protection
- MTBF: 750,000 hours (MIL-HDBK-217F, +25°C)
- Safety Certifications: IEC/UL/cUL 62368-1
- Mounting Options: Chassis mount, optional DIN rail
- Remote On/Off: Yes
- Status Indicator: Power good LED
Buy the XP Power DTE4024S12 – Reliable Power Supply for Industrial Applications
Purchase the XP Power DTE4024S12 rated 40W DC-DC converter online today and benefit from high efficiency, wide input range, and robust protections. Designed for industrial environments, this fully encapsulated module provides regulated 24V output, remote On/Off, and 2.5kVDC isolation, ensuring reliable power transfer in demanding conditions. Easy to install with screw terminals and optional DIN rail mounting, it guarantees long-term performance with a 3-year warranty. Simplify your procurement and upgrade your power systems easily online.
Order your XP Power DTE4024S12 current rated DC-DC converter today and ensure your industrial systems operate with dependable power and safety.
Frequently Asked Questions
Where can I buy XP POWER DTE4024S12D?
You can click on the BUY or RFQ button to purchase DTE4024S12D from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DTE4024S12D?
You can download the DTE4024S12D datasheet or visit the XP POWER website for support.
Who is the manufacturer of DTE4024S12D?
XP POWER
