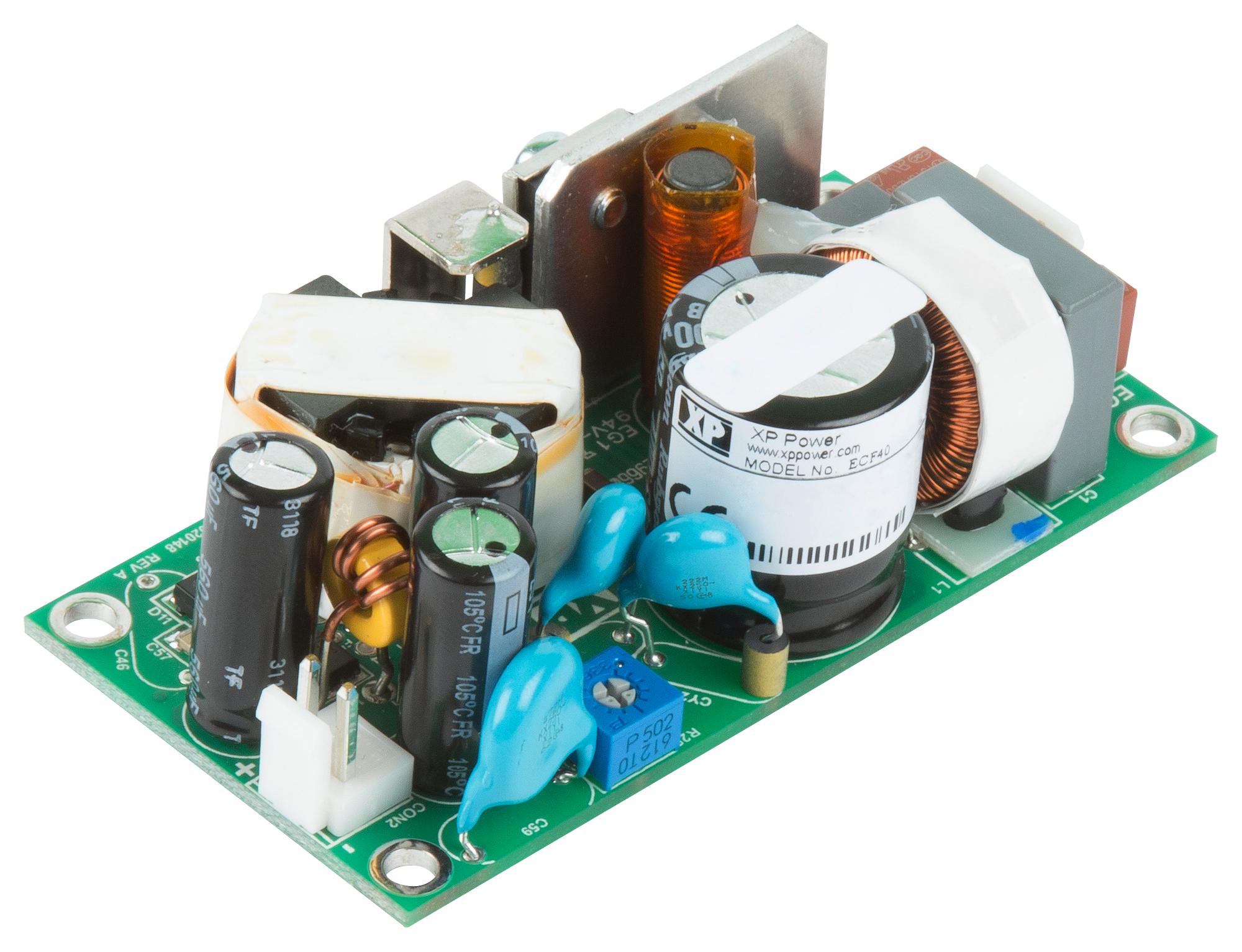

XP POWER ECF40US48 Open-Frame Power Supply
The ECF40 series is a compact 40W open-frame AC-DC power supply designed for medical and industrial equipment. It features a low profile height of 1.1 inches and a footprint of 1.5 by 3 inches, providing high efficiency and minimal no-load power consumption. Capable of convection cooling with input voltages from 90V to 264VAC (down to 80VAC with minimal de-rating), it includes two AC line fuses and low leakage current specifications suitable for medical applications. The power supply is certified for safety standards including IEC60950, UL60950-1, CSA 22.2 No.60950-1-11 Ed 2, EN60950-1, IEC60601-1 Ed 3.1, and others, supporting Class I and Class II installations. It offers a high power density with less than 0.15W no-load input power, making it ideal for power management in medical and industrial electronics.
XP POWER ECF40US48 Open-Frame Power Supply Specifications:
- Power Output: 40W
- Input Voltage Range: 90-264VAC, down to 80VAC with minimal de-rating
- Input Frequency: 47-63Hz
- Efficiency: Up to 90%
- No Load Power: Less than 0.15W
- Profile Dimensions: 1.1 inches height, 1.5 x 3 inches footprint
- Fuses: Two AC line fuses included
- Safety Certifications: IEC60950, UL60950-1, CSA 22.2 No.60950-1-11 Ed 2, EN60950-1, IEC60601-1 Ed 3.1
- Isolation: 2x MOPP (patient protection), 1x MOPP (earth)
- Operating Temperature: -25°C to +70°C (derating applies)
- Mechanical: Low profile, convection-cooled, lightweight (approx. 0.14 lbs)
- High Power Density: Support for Class I & II installations
- Leakage Current: Less than 0.15W no-load input power
Buy the XP Power ECF40US48 – Reliable Medical and Industrial Power Supply for Electronic Equipment
Order the XP Power ECF40US48 online today for your medical or industrial electronic projects. This compact, high-efficiency 40W power supply offers exceptional safety certifications, minimal no-load power consumption, and a low-profile design. Perfect for space-constrained applications, it ensures reliable power delivery with wide input voltage support from 90VAC to 264VAC and compliance with medical safety standards. Purchase now to experience the convenience, dependability, and quality assurance that aids in seamless device integration and long-term operation.
Get XP Power ECF40US48 today—built for medical-grade reliability, high efficiency, and durable power management solutions.
Frequently Asked Questions
Where can I buy XP POWER ECF40US48?
You can click on the BUY or RFQ button to purchase ECF40US48 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ECF40US48?
You can download the ECF40US48 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ECF40US48?
XP POWER
