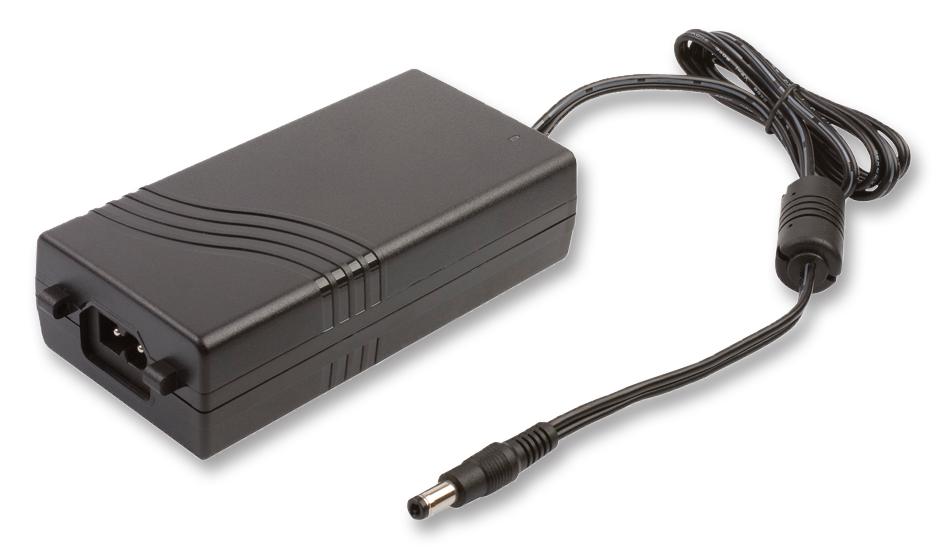

XP POWER AFM60US18C2 Medical and Industrial Power Supply
The AFM60US18C2 is a high-efficiency switching power supply designed for medical and industrial applications. It operates with an input voltage of 80-264 VAC, providing reliable output power with an output voltage of adjustable 0 V, derated from 100% at temperatures above +40°C. Featuring a compact design, it offers excellent EMI compliance, a wide operating temperature range from 0°C to +60°C, and safety certifications including China CCC. Suitable for medical equipment, automation systems, and industrial devices, it delivers stable power with efficiency levels meeting Level V standards. Built for durability, it includes overvoltage, overload protections, and meets EMC standards.
XP POWER AFM60US18C2 Medical and Industrial Power Supply Specifications:
- Input Voltage: 80-264 VAC
- Voltage Range: 80-264 VAC, derates output power 25%
- Efficiency: Level V (<90 VAC)
- Frequency: 47-63 Hz
- Isolation: 4000 VAC input to output, 2 x MOPP
- Input Current: AFM60: 1.5 A rms at 115 VAC
- Power Factor: EN61000-3-2, class A
- Switching Frequency: 52 kHz typ.
- Earth Leakage Current: 150 µA max at 264 VAC/60 Hz
- No Load Power Consumption: <0.5 W
- MTBF: >250,000 hours at 25°C
- Output Voltage: Adjustable, initial set accuracy 42%
- Temperature Range: 0°C to +60°C (derates above 40°C)
- Operating Humidity: 10-95% RH, non-condensing
- Storage Temperature: -40°C to +80°C
- Operating Altitude: up to 2000 m
- Hold Up Time: 8 ms at 115 VAC
- Line Regulation: ≤1.0%
- Load Regulation: ≤2.5%
- Ripple & Noise: 1% pk-pk at 20 MHz bandwidth
- Overvoltage Protection: 110-170% Vnom
- Overload Protection: Auto recovery 110-220%
- EMC: EN55011/22, FCC Class B
- Safety: EN60601-1-2, UL60950-1, IEC60950-1, CCC
- Dimensions: 4.76 x 2.44 x 1.21 inches (121 x 62 x 30.8 mm)
- Weight: approx. 0.78 lbs (360 g)
- Case Material: PC V-0 rated
Buy the Green DCJ Series Power Supply: AFM60US18C2
Purchase the Green DCJ Series power supply AFM60US18C2 online today to ensure your medical and industrial devices operate with high efficiency and reliability. Designed with advanced safety features, compact size, and excellent EMI performance, this power supply is ideal for demanding environments. Its wide input voltage range and durability make it suitable for various applications. Take advantage of easy online ordering, fast delivery, and the confidence of genuine, certified products that meet strict international standards for safety and EMC compliance.
Buy Green DCJ power supply AFM60US18C2 now and experience unmatched reliability and performance for your industrial and medical equipment.
