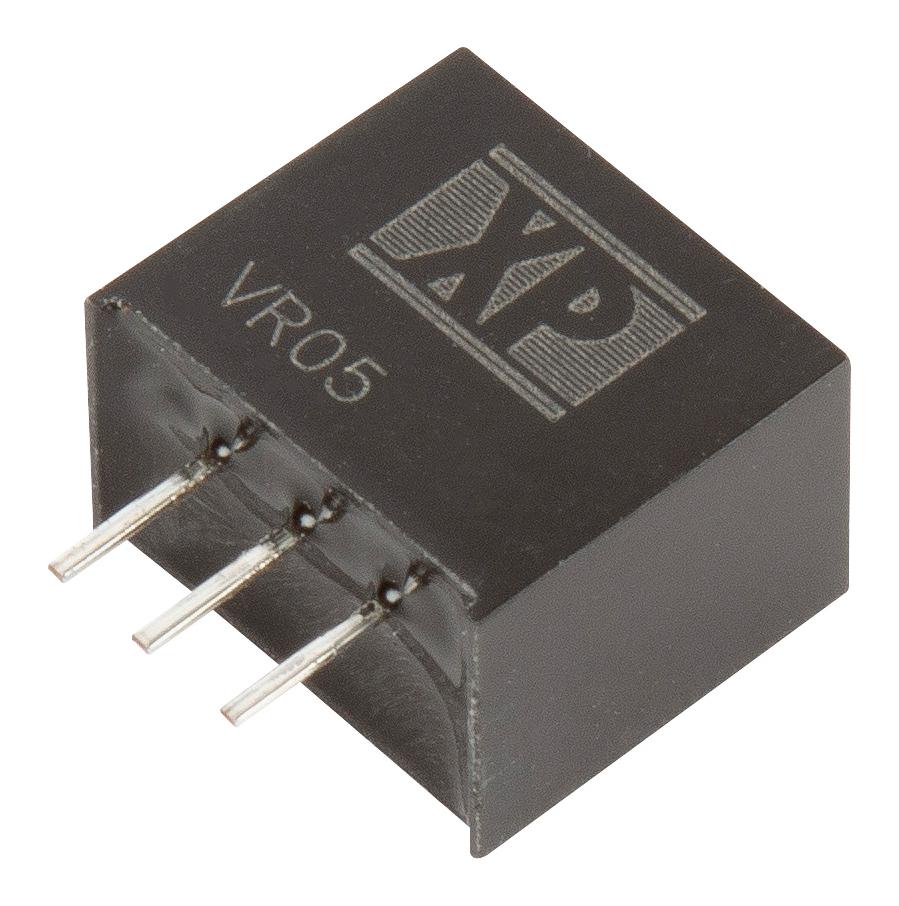

XP POWER VR05S05 DC-DC Converter
The VROS5 Series DC-DC Converter from XP Power is a compact, high-efficiency, non-isolated switching regulator capable of delivering up to 0.5A output current across a wide input voltage range of 4.75V to 36V. It features output voltages from 3.3V to 15V, with efficiency up to 95%, and low standby current of 0.2mA. Its small SIP3 package measures 0.457 x 0.401 x 0.297 inches. Suitable for various industrial and electronics applications, it offers short circuit protection, high reliability, and operation from -40°C to +85°C.
XP POWER VR05S05 DC-DC Converter Specifications:
- Input Voltage Range: 4.75V to 36V
- Output Voltage: 3.3V to 15V
- Output Current: 0.5A
- Efficiency: Up to 95%
- Input Current (No Load): 0.2mA
- Input Surge Voltage: 45V max for 100ms
- Output Ripple & Noise: 75mV pk-pk
- Operating Temperature Range: -40°C to +85°C
- Mounting: SIP3 package, 0.457 x 0.401 x 0.297 inches
- Switching Frequency: 550 to 850 kHz
- Isolation: Non-isolated
- Protection: Short circuit with auto recovery
- MTBF: greater than 2 million hours
- Case Material: Non-conductive black plastic UL94V-0
- Pin Material: Solder coated phosphor bronze
- Weight: 0.0039 lbs (1.89 grams)
Buy the XP Power Series VROS5 DC-DC Converter: VR05S05
Purchase the XP Power Series VROS5 DC-DC Converter online today and ensure your electronic projects operate efficiently and reliably. With a compact SIP3 package measuring 0.457 x 0.401 x 0.297 inches, it provides up to 0.5A current with efficiencies reaching 95%. Its wide input voltage range from 4.75V to 36V makes it suitable for various industrial and embedded systems. Enjoy short circuit protection, low standby current, and operation from -40°C to +85°C. A perfect choice for engineers seeking dependable power conversion solutions easily available online.
Order your XP Power Series VROS5 0.5A DC-DC Converter today and equip your projects with reliable, high-efficiency power regulation for demanding applications.
Frequently Asked Questions
Where can I buy XP POWER VR05S05?
You can click on the BUY or RFQ button to purchase VR05S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VR05S05?
You can download the VR05S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VR05S05?
XP POWER
