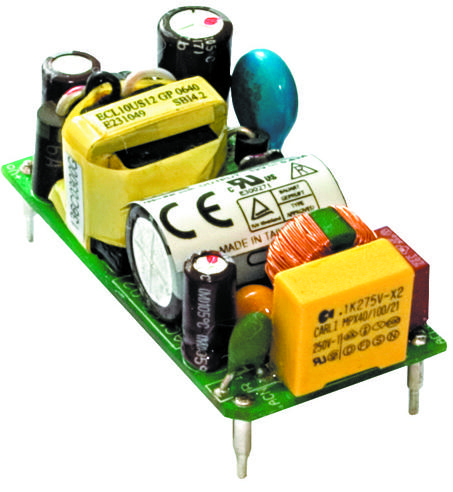

XP POWER ECL10US09P Power Supply Module
This ultra-compact power supply module offers single, dual, and triple output options. It can be mounted on open frame PCBs or chassis, with encapsulated versions also available. Designed for efficiency, it consumes less than 0.3W at no load and supports peak load capability. The device features Class II construction, making it suitable for power management and industrial applications.
XP POWER ECL10US09P Power Supply Module Specifications:
- Input Voltage: 85-264 VAC, 120-370 VDC
- Frequency Range: 47-63 Hz
- No Load Power: <0.3 W
- Output Voltage Options: 3.3V, 5V, 9V, 12V, 15V, 24V, 48V
- Output Current: 0.52A to 6.00A depending on model
- Switching Frequency: 70 KHz typical
- Isolation: 3000 VAC input to output
- Efficiency: Up to 82%
- Operating Temperature: -20°C to +70°C (derate linearly from 100% at +50°C to 50% at +70°C)
- Dimensions: Varies by model; PCB mount versions around 0.07 inches, chassis mount around 1.25 inches
- Mechanical: Open Frame PCB & chassis mount, encapsulated, screw terminal options available
- Certifications: EN55032, EN61000-3-2, UL 62368-1, IEC60950-1, CE compliance
- Warranty: 3 years
Buy the Xppower ECL10US09P – Reliable Power Supply for Industrial Applications
Purchase the Xppower Power Supply Module ECL10US09P online now to ensure reliable, efficient power delivery for your industrial automation, control systems, and manufacturing equipment. Designed for compact installation, it offers multiple output options, high peak load capacity, and ease of mounting on PCB or chassis. With a 3-year warranty, certified safety standards, and low no-load power consumption, this module is ideal for reliable power management in demanding industrial environments. Get yours today and improve your project stability and efficiency.
Order your Xppower Series ECL10US09P power supply today and ensure dependable power in your industrial and power management projects.
