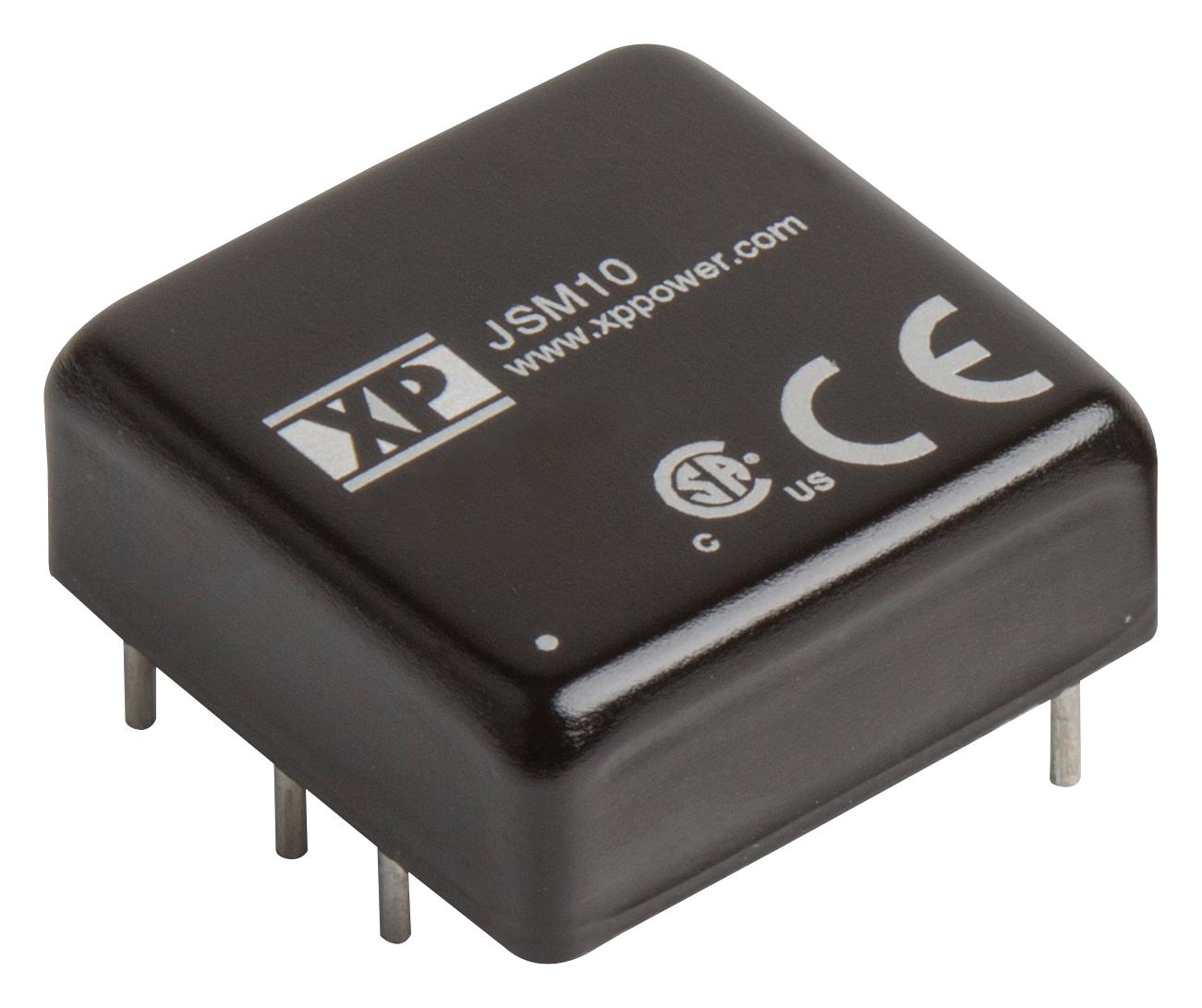

XP POWER JSM1048S3V3 DC-DC Converter
The JSM10 series features a high power density DC-DC converter with a regulated output of 10 Watts. It supports a 2:1 input voltage range to accommodate nominal inputs of 12V, 24V, and 48VDC (with respective ranges of 9-18V, 18-36V, and 36-75VDC). The device is housed in a compact 1 x 1 x 0.4 inch (25.4 x 25.4 x 10.16 mm) six-sided metal case with pins designed for PCB mounting. It offers 1500VDC isolation and operates reliably over a temperature range of -40°C to 105°C. suitable for power management and DC converter applications.
XP POWER JSM1048S3V3 DC-DC Converter Specifications:
- Power: 10 Watts
- Input Voltage Range: 9-18V, 18-36V, 36-75VDC with 2:1 range
- Output Power: 10W
- Isolation: 1500VDC
- Case Size: 1 x 1 x 0.4 inches (25.4 x 25.4 x 10.16 mm)
- Case Material: Metal
- Operating Temperature: -40°C to +105°C
- Protection: Optional remote on/off, full power to +70°C with heatsink
- Compliance: ITE safety approvals
- Efficiency: Up to 89%
- Switching Frequency: 330 kHz
- Input Surge Voltage: 1s surge at specified levels
- Physical Pins: Tinned copper
Buy the XP Power JSM1048S3V3 – Reliable DC-DC Converter for Industrial Applications
Purchase the XP Power JSM1048S3V3 DC-DC converter online today. This high-efficiency, reliable power supply delivers 10 Watts with regulated outputs, wide input ranges, and excellent thermal performance. Perfect for industrial automation, power management, and electronic systems requiring stable and safe power conversion, housed in a durable metal case, and with optional features like remote on/off and heatsinks for enhanced usability. Order now to ensure seamless and durable power solutions for your applications.
Get XP Power JSM1048S3V3 today—built for precision and long-lasting durability, ideal for power management and industrial automation.
Frequently Asked Questions
Where can I buy XP POWER JSM1048S3V3?
You can click on the BUY or RFQ button to purchase JSM1048S3V3 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JSM1048S3V3?
You can download the JSM1048S3V3 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JSM1048S3V3?
XP POWER
