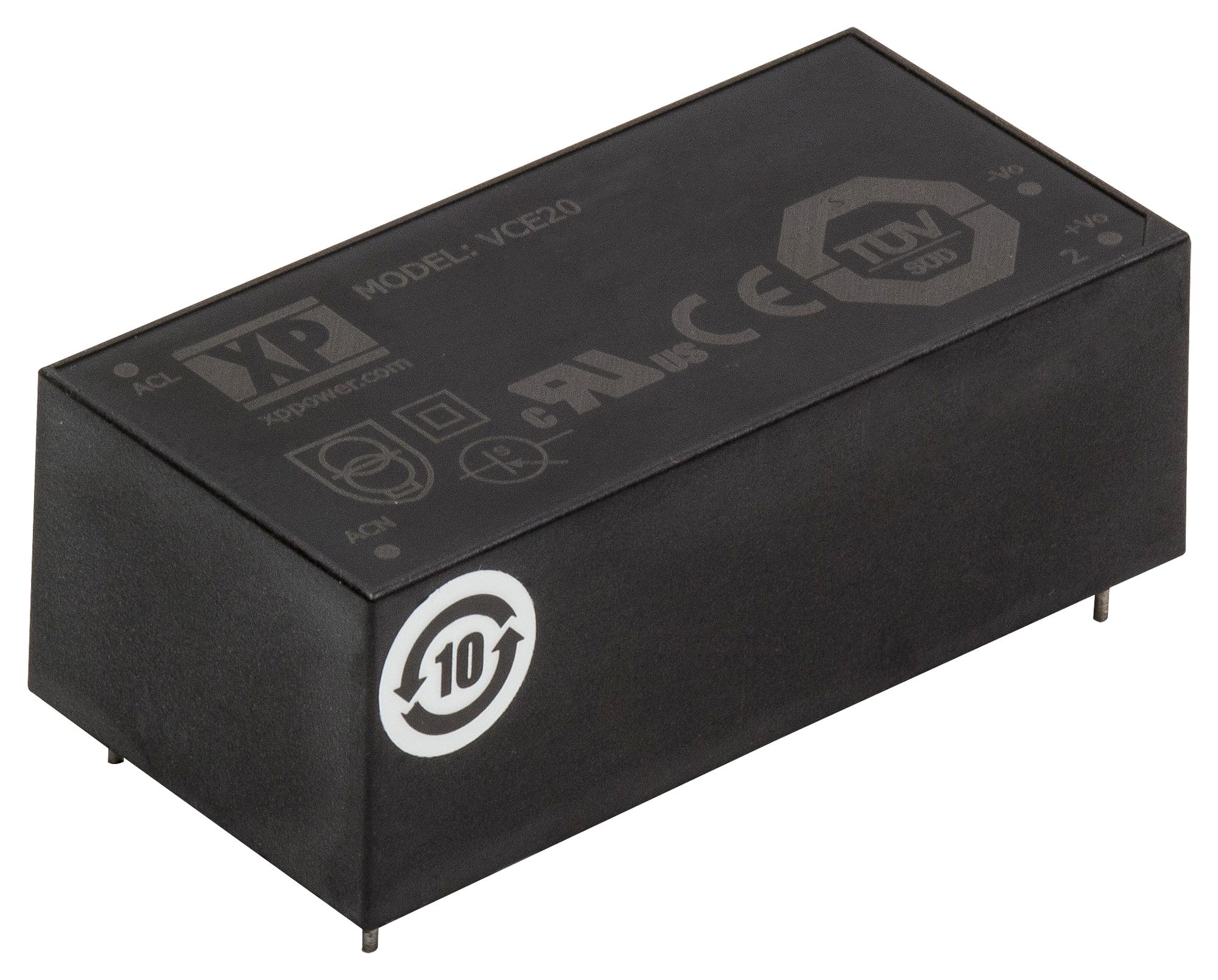

XP POWER VCE20US03 Power Supply
The VCE20 series consists of open frame and encapsulated AC-DC power supplies with a single output, designed for low-cost industrial, IT, and domestic applications. These power supplies are available in mechanical options including open frame and PCB-mounted encapsulated versions. They meet worldwide safety standards for both IT and household use, with compliance to Class B conducted and radiated emissions standards. The units feature an input voltage range of 85 to 305 VAC and provide single outputs from 3.3V to 48V DC. They are approved for use in industrial and household appliances, with EN55035 immunity standard compliance and Class II isolation, ensuring safe and reliable operation in various environments.
XP POWER VCE20US03 Power Supply Specifications:
- Input Voltage Range: 85-305 VAC
- Output Voltage Options: 3.3V, 5V, 9V, 12V, 15V, 24V, 48V
- Output Power: 20W
- Efficiency: 85%
- Isolation: Input to Output 3000 vac
- Operating Temperature: -25°C to +70°C
- Ambient Humidity: 95% RH
- Cooling Method: Convection-cooled
- Dimensions Open Frame: 2.50 x 1.20 x 0.86 inches (63.5 x 30.5 x 21.8 mm)
- Dimensions Encapsulated: 2.60 x 1.30 x 0.92 inches (66.0 x 33.0 x 23.4 mm)
- Certifications: IEC62368-1, IEC60335-1, UL62368-1
- EMC: EN55035, Class B emissions
- Safety: Meets IEC standards, Class II construction
- Switching Frequency: 5-65 kHz
- Mean Time Between Failures: 550-600 khrs
Buy the Buy XP Power VCE20 Series Part Number VCE20US03 Online
Secure your XP Power VCE20US03 series power supply online today. Designed for industrial and domestic use, this compact unit offers 20W power, high efficiency, and broad input voltage range. Easy to integrate into various systems, it meets international safety standards and features Class II isolation for safe operation. Perfect for appliances, instrumentation, and electronics, this power supply guarantees dependable performance and long service life. Shop now to enhance your projects with a trusted, cost-effective power solution, delivered quickly and safely to your doorstep.
Order your XP Power VCE20US03 series high-efficiency power supply today and ensure reliable power for your industrial or household applications.
Frequently Asked Questions
Where can I buy XP POWER VCE20US03?
You can click on the BUY or RFQ button to purchase VCE20US03 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VCE20US03?
You can download the VCE20US03 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VCE20US03?
XP POWER
