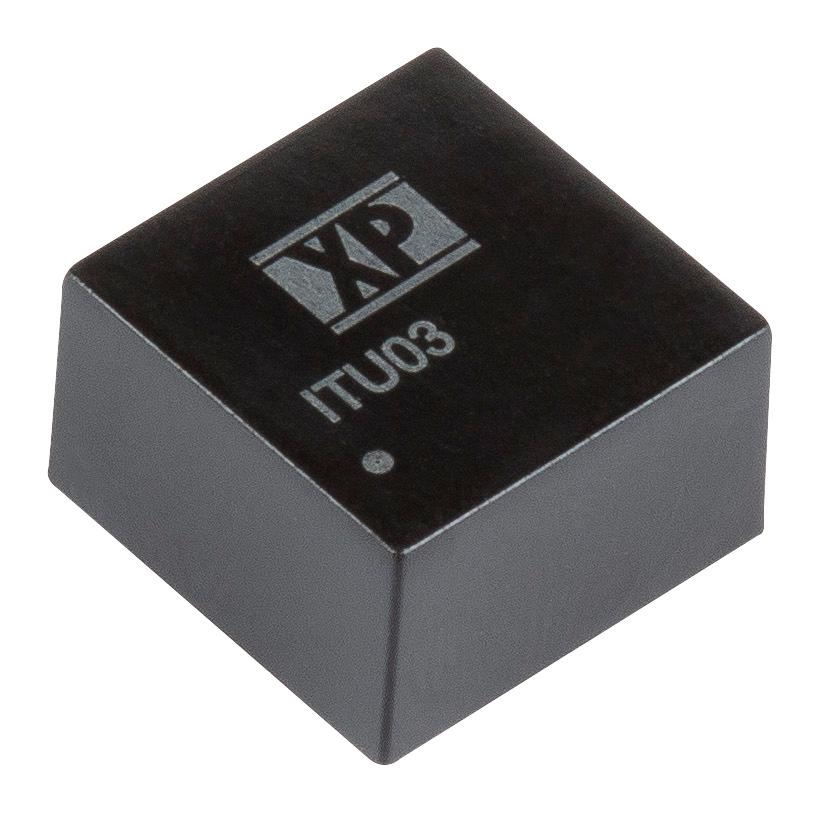

XP POWER ITU0324D15 industrial DC-DC converter
The ITU series DC-DC converter provides a compact, cost-effective 3W solution suitable for industrial applications. It features a wide input voltage range, multiple output voltage options from 3.3V to 30VDC, and reliable regulation within 1%. Encapsulated in a durable DIP8 package, it offers up to 84% efficiency, 1.6kVDC isolation, and has protections including short-circuit and remote on/off. Designed for demanding environments, it operates from -40°C to +80°C with full power up to +70°C, ensuring dependable performance in various setups.
XP POWER ITU0324D15 industrial DC-DC converter Specifications:
- Input Voltage Range: 4.5 to 75VDC with wide 4:1 ratio
- Output Voltage: 3.3V to 30VDC (regulated ±1%)
- Input/Output Isolation: 1.6kVDC
- Efficiency: Up to 84%
- Operating Temperature: -40°C to +80°C, full power up to +70°C
- Package: Compact DIP8 encapsulated module
- Protection: Short-circuit, remote on/off
- Dimensions: 0.55 x 0.55 x 0.32 inches (14.0 x 14.0 x 8.1 mm)
- MTBF: >820,000 hours (MIL-HDBK-217F, +25°C GB)
- Compliance: EN55032 emissions, safety standards CE and UKCA
- Transient Response: 5% deviation, recovery time 500μs
- Ripple & Noise: 100mV pk-pk (typical)
- Maximum Capacitive Load: See model ratings
- Case Material: Non-conductive black plastic
- Surge & ESD Immunity: EN61000-4-2, -4-4, -4-5, -4-6
- Safety Approvals: CE, UKCA
Buy the XP Power ITU0324 U–Reliable Industrial DC-DC Converter for Applications
Enhance your power management with the XP Power ITU0324 DC-DC converter. Designed for industrial environments, it offers high efficiency, wide input voltage range, and reliable regulation. Its durable DIP8 package and comprehensive protections make it suitable for demanding applications. Whether for automation, instrumentation, or control systems, this 3W module ensures stable operation from -40°C to +80°C, supporting your project's performance and longevity. Purchase online today for fast delivery and dependable power solutions.
Order your XP Power ITU0324 series 3W DC-DC converter today and ensure robust, reliable power for your industrial projects.
Frequently Asked Questions
Where can I buy XP POWER ITU0324D15?
You can click on the BUY or RFQ button to purchase ITU0324D15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITU0324D15?
You can download the ITU0324D15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITU0324D15?
XP POWER
