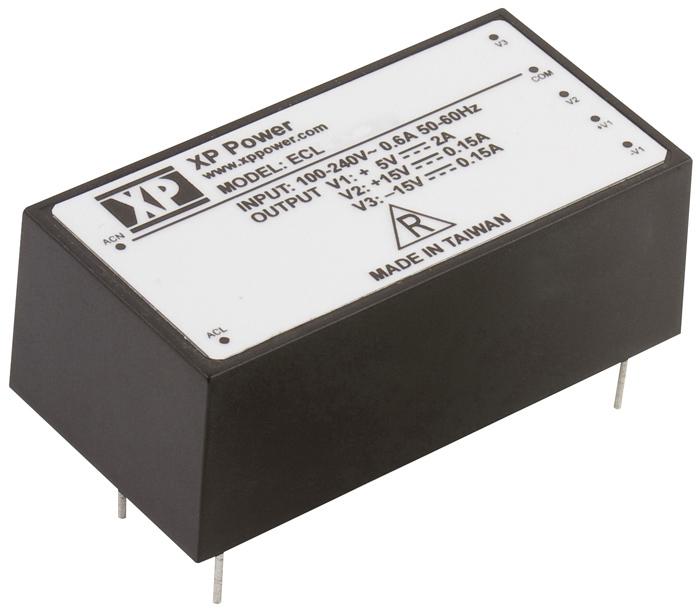

XP POWER ECL15UD02E industrial power supply
The ECL series provides ultra-compact, efficient power supplies with a wide 85-264 VAC input range, offering single, dual, and triple output options. Designed for open frame PCB, chassis, and encapsulated mounts, these models feature low no-load power consumption (<0.3 W), high efficiency, and robust protection features including overvoltage and overload protection. Suitable for industrial and automation applications, they adhere to stringent EMC and safety standards, operate reliably from -20°C to +70°C, and provide excellent thermal management with vibration and humidity tolerance. Ideal for demanding environments needing consistent power delivery and high reliability in a compact size.
XP POWER ECL15UD02E industrial power supply Specifications:
- Input Voltage: 85-264 VAC, 120-370 VDC
- Frequency Range: 47-63 Hz
- Power Rating: 15 W, 25 W, 30 W models available
- Output Voltages: 3.3 V, 5 V, 9 V, 12 V, 15 V, 24 V, 48 V (varies by model)
- Output Currents: 0.52 A to 6.50 A depending on model
- Efficiency: Up to 82%, according to model
- No Load Power: <0.3 W
- Protection Features: Overvoltage, Overload, Short Circuit
- Isolation: 3000 VAC input to output
- Operating Temperature: -20°C to +70°C, derates from 100% at 50°C to 50% at 70°C
- Operating Humidity: 95% RH, non-condensing
- Vibration: 2g, 10 Hz to 500 Hz
- EMC Standards: EN55032, EN61000-3-2, EN61000-4-2/3/4/5/6/8/11
- Safety Approvals: IEC60950-1, IEC62368-1, UL 62368-1
Buy the Buy Ultra Power ECL Series Power Supply Part Number ECL15UD02E Online
Secure the Ultra Power ECL series power supply part number ECL15UD02E today with our fast online ordering. Engineered for durability and efficiency, this power supply offers wide input voltage, multiple output configurations, low no-load power consumption, and comprehensive protection features. Perfect for industrial automation, control systems, and demanding environments, it ensures consistent power delivery, high efficiency, and compliance with EMC and safety standards. Order now to enhance your system's reliability and enjoy quick delivery and expert support.
Buy Ultra Power ECL series power supply part number ECL15UD02E now and experience unmatched reliability and performance in industrial control applications.
