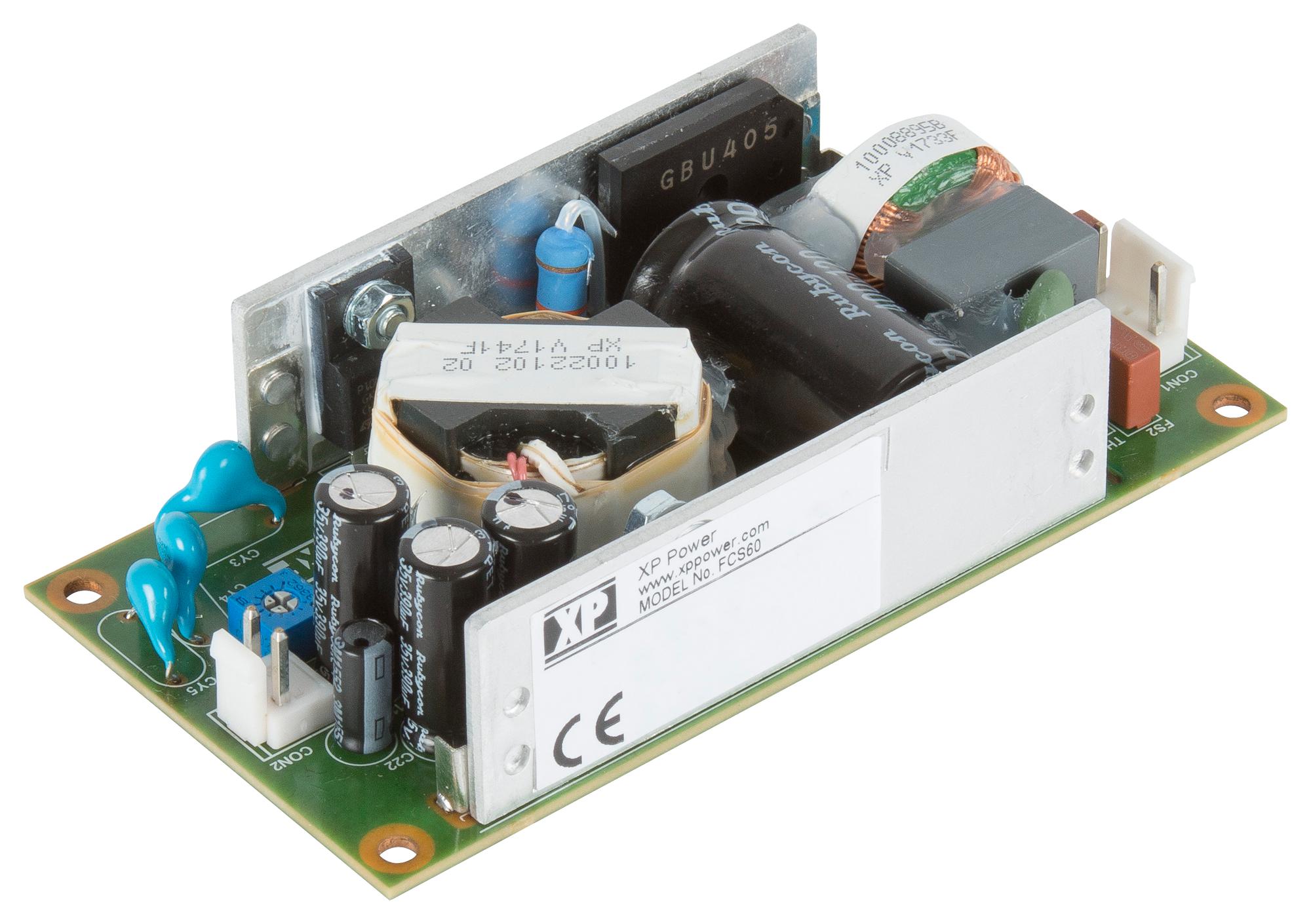

XP POWER FCS60US18 Medical & Industrial Power Supply
The FCS60 series is a high-efficiency, 60W convection-cooled AC-DC power supply designed for medical and industrial (ITE) applications. It features a low-profile height of just 1.04 inches and a compact footprint of 2 inches by 4 inches, making it suitable for space-constrained environments. The power supply operates down to 80VAC and includes two AC line fuses and low leakage current compliance for medical safety standards. It is approved for both Class I and Class II installations, ensuring versatility across various applications. The unit offers high power density, minimal no-load power consumption under 0.3W, and is certified to meet multiple safety standards, making it ideal for medical and ITE equipment requiring reliable, efficient power delivery.
XP POWER FCS60US18 Medical & Industrial Power Supply Specifications:
- Power Output: 60 W
- Output Voltage Options: 12.0V, 15.0V, 18.0V, 24.0V, 36.0V, 48.0V
- Output Current: 5.00A, 4.00A, 3.33A, 2.50A, 1.67A, 1.25A respectively
- Efficiency: 85-86%
- Input Voltage Range: 80 - 264 VAC
- Frequency: 47-63 Hz
- No Load Power: less than 0.3 W
- Dimensions: 2.00 x 4.00 x 1.04 inches (50.8 x 101.6 x 26.4 mm)
- Operating Temperature: -25°C to +70°C
- Safety Approvals: IEC60601-1, IEC62368-1, IEC60335-1, UL, CSA, EN certifications
- Leakage Current: Less than 0.3 W at no load
- Features: High Power Density, Low Noise, Two AC Fuses, Compact Size
Buy the XP Power FCS60U3 – Reliable AC-DC Power Supply for Medical and Industrial Applications
Purchase the XP Power FCS60 series online today to ensure your devices operate with high efficiency and reliability. Designed for medical, ITE, and household applications, this power supply delivers up to 60W with low no-load power consumption. Its compact size of 2 inches by 4 inches and low profile height of just 1.04 inches make it ideal for space-constrained environments. Certified for multiple safety standards, including IEC60601-1 and IEC62368-1, it guarantees safe operation and durability. Get yours now for dependable power delivery in critical applications.
Buy XP Power FCS60US18 now and experience unmatched reliability, high efficiency, and compact design for your medical or industrial equipment.
Frequently Asked Questions
Where can I buy XP POWER FCS60US18?
You can click on the BUY or RFQ button to purchase FCS60US18 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part FCS60US18?
You can download the FCS60US18 datasheet or visit the XP POWER website for support.
Who is the manufacturer of FCS60US18?
XP POWER
