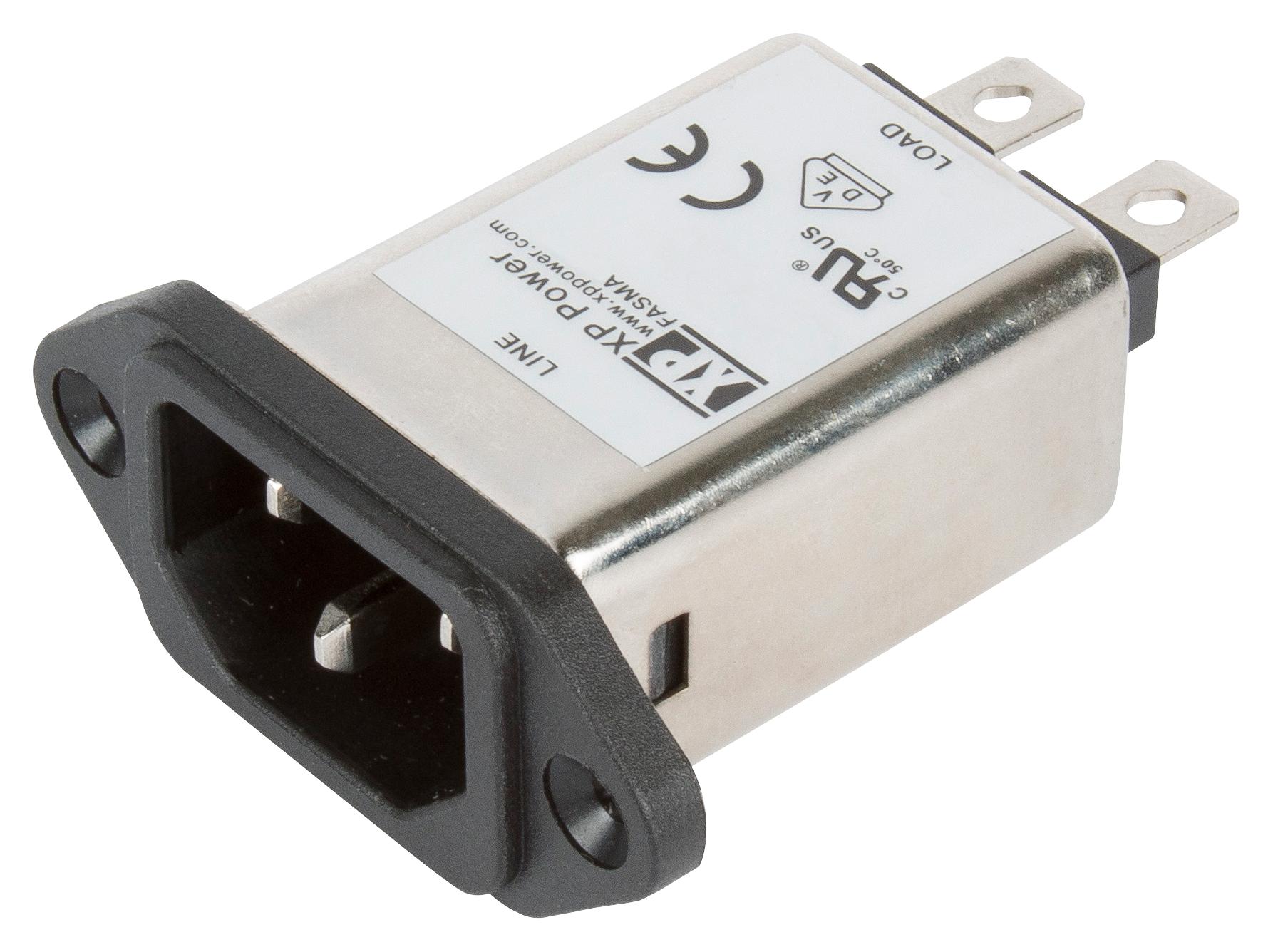

XP POWER FASAS10PFR EMI Filter
The FASA series combines an electromagnetic interference (EMI) filter with an IEC 320-C14 inlet in a compact, shielded metal enclosure. Suitable for consumer, commercial, and instrumentation applications, these filters attenuate conducted electromagnetic disturbances from mains supply and reduce internal emissions. They feature a bleed resistor to discharge capacitors safely after disconnecting power, and meet EN60939-2 and ANSI/UL1283 standards. Operating from -40°C to +110°C with full power up to +50°C, models are rated at 1A, 3A, 6A, or 10A, with 6.3 x 0.8mm Faston terminals, ideal for industrial и electronic equipment.
XP POWER FASAS10PFR EMI Filter Specifications:
- Rated Voltage: 250VAC
- Rated Current: 1A, 3A, 6A, 10A (models available)
- Protection Class: Suitable for class I appliances
- Safety Approvals: EN60939-2, ANSI/UL1283
- Operating Temperature Range: -40°C to +110°C
- Full Power Operation up to: +50°C
- Terminals: Faston 6.3 x 0.8mm, straight
- Body Material: Shielded metal enclosure
- Leakage Current: 0.25mA @ 250VAC, 60Hz
- Mounting Options: Screw mount and snap-in configurations
- Bleed Resistor: Integrated for capacitor discharge
- Dimensions: Approximate panel cutout 0.88 inches (22.5mm) for screw mount, and 0.94 inches (24mm) for snap-in
- Temperature Derating: Refer to derating curve
- MTBF (MIL-HDBK 217F): 250VAC @ 40°C
Buy the XP Power FASAS10PFR – Reliable EMI Filter for Industrial Applications
Order the XP Power EMI filter with IEC320-C14 inlet online today and ensure your equipment maintains excellent EMI attenuation. Designed for industrial, commercial, and instrumentation use, this compact shielded metal filter incorporates a bleed resistor for safe capacitor discharge and meets safety standards EN60939-2 and UL1283. Operating efficiently from -40°C to +110°C, it supports full power up to +50°C. Available in various ratings up to 10A with screw and snap-in mounting options, it is ideal for reliable, long-term electronic and industrial applications.
Buy XP Power FASAS10PFR now and experience unmatched reliability and superior electromagnetic interference suppression for industrial and electronic equipment.
Frequently Asked Questions
Where can I buy XP POWER FASAS10PFR?
You can click on the BUY or RFQ button to purchase FASAS10PFR from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part FASAS10PFR?
You can download the FASAS10PFR datasheet or visit the XP POWER website for support.
Who is the manufacturer of FASAS10PFR?
XP POWER
