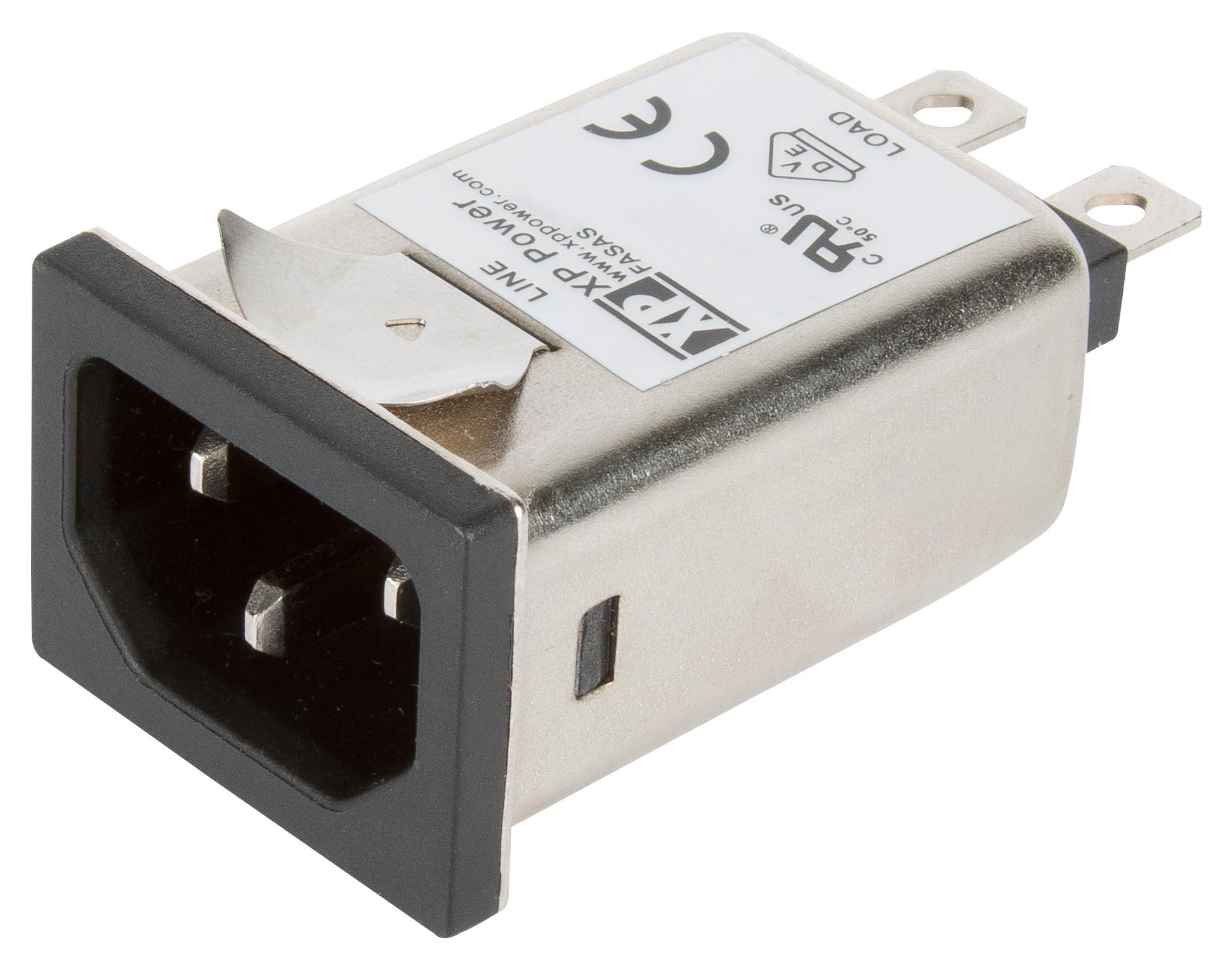

XP POWER FASAS10SFR Electromagnetic Interference Filter
The FASA series combines an electromagnetic interference (EMI) filter with an IEC 320-C14 inlet, providing excellent attenuation of conducted electromagnetic interference from mains power lines. Available in screw-mounted or snap-in configurations, these compact modules are suitable for consumer, commercial, industrial, and instrumentation applications. They feature a shielded metal body and include a bleed resistor to safely discharge filter capacitors when power is disconnected. Approved to EN60939-2 and ANSI/UL1283 standards, they operate across a wide temperature range of -40°C to +110°C, with full power capability up to +50°C. Rated at 1A, 3A, 6A, or 10A, they utilize 6.3 x 0.8mm Faston terminals.
XP POWER FASAS10SFR Electromagnetic Interference Filter Specifications:
- Rated Voltage: 250VAC
- Rated Current: 10A
- Frequency: 50/60Hz
- Leakage Current: 0.25mA at 250VAC
- Impedance: 2x65mH (1A), 2x25mH (3A), 2x08mH (6A), 2x02mH (10A)
- Capacitance: 0.1uF (all models)
- Terminal Type: 6.3 x 0.8mm Faston
- Protection Class: Suitable for appliances with protection class I
- Temperature Range: -40°C to +110°C (full power up to +50°C)
- Certifications: EN60939-2, ANSI/UL1283
- Dimensions: Screw mount suggested panel cutout 0.88 in (22.5mm), snap-in mount 1.8 in (45.5mm)
- Material: Shielded metal body
- Features: Bleed resistor for capacitor discharge, wide operating temperature
- MTBF: According to MIL-HDBK 217F, rated for industrial reliability
Buy the XP Power FASA10SFR – Reliable EMI Filter for Industrial Applications
Secure your electrical equipment's performance with the XP Power EMI Filter. Designed for industrial, commercial, and instrumentation use, it offers excellent attenuation of EMI, ensuring compliance with safety standards. Easy to install in screw-mounted or snap-in configurations, this compact, shielded metal module includes a bleed resistor for safe capacitor discharge. Operating from -40°C to +110°C and rated at 10A, it provides reliable protection against conducted electromagnetic interference, making it ideal for a wide range of mains-powered devices. Purchase online today for quality and safety assured.
Buy XP Power FASA10SFR now and experience unmatched reliability and performance of a robust EMI filtering solution designed for industrial applications.
Frequently Asked Questions
Where can I buy XP POWER FASAS10SFR?
You can click on the BUY or RFQ button to purchase FASAS10SFR from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part FASAS10SFR?
You can download the FASAS10SFR datasheet or visit the XP POWER website for support.
Who is the manufacturer of FASAS10SFR?
XP POWER
