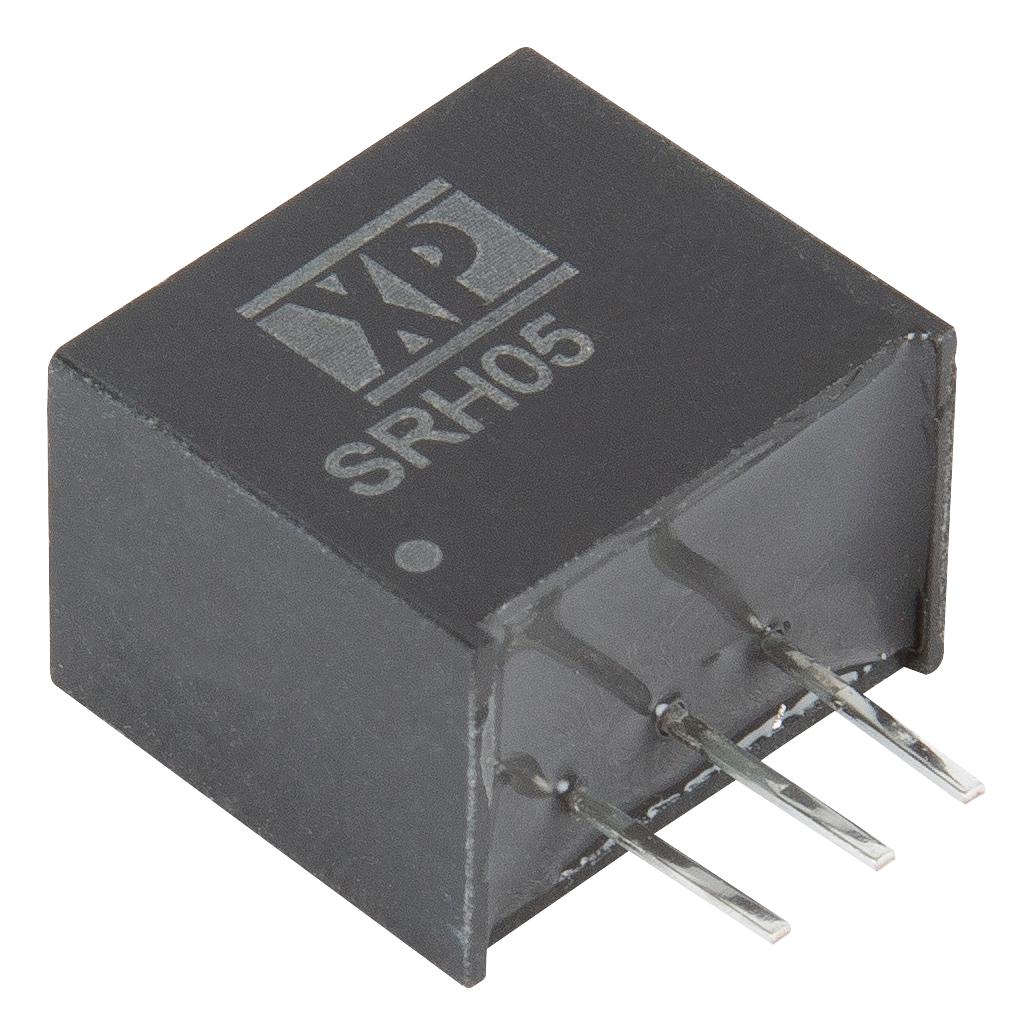

XP POWER SRH05S3V3 Switching Regulator
This 3-pin switching regulator in SIP package provides a versatile and compact solution for converting a wide input voltage up to 72V down to selected output voltages from 3.3V to 15V. Suitable for industrial and automotive applications, it operates from -40°C to +85°C, offering high efficiency, low ripple, and built-in short circuit protection. Its robust design ensures reliable performance with a high MTBF exceeding 4.5 million hours and compliance with Class B EMI standards, making it ideal for environments requiring stable voltage regulation and electromagnetic compatibility.
XP POWER SRH05S3V3 Switching Regulator Specifications:
- Input Voltage Range: 9-72 VDC
- Output Voltages: 3.3V, 5.0V, 6.5V, 7.2V, 9.0V, 12.0V, 15.0V
- Maximum Output Current: 500 mA
- Efficiency: Up to 92%
- Operating Temperature Range: -40°C to +85°C
- Ripple & Noise: 75 mV pk-pk
- Line Regulation: 1.0%
- Load Regulation: 0.6%
- Switching Frequency: 120-800 kHz
- Short Circuit Protection: Yes, auto recovery
- MTBF: Over 4.5 million hours
- Case Material: Non-conductive UL94V-0 rated plastic
- Pin Material: Solder coated, C5191R-H
- Soldering Temp: 260°C for 10 seconds
- Weight: Approx. 2.1 g
- EMC: Meets Class B conducted & radiated standards
Buy the Buy XP Power Switching Regulator Part Number SRH05S3V3 Online
Secure your XP Power SRH05S3V3 switching regulator now online to experience dependable voltage regulation for industrial and automotive applications. This compact SIP package offers an ultra-wide input range of up to 72V, delivering outputs from 3.3V to 15V at 500mA. Designed to operate efficiently from -40°C to +85°C, it features low ripple, short circuit protection, and meets strict EMI standards, ensuring seamless integration into your power systems with high reliability and long MTBF over 4.5 million hours.
Order your XP Power SRH05S3V3 switching regulator today and ensure your projects benefit from reliable voltage regulation, high efficiency, and EMI compliance.
Frequently Asked Questions
Where can I buy XP POWER SRH05S3V3?
You can click on the BUY or RFQ button to purchase SRH05S3V3 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part SRH05S3V3?
You can download the SRH05S3V3 datasheet or visit the XP POWER website for support.
Who is the manufacturer of SRH05S3V3?
XP POWER
