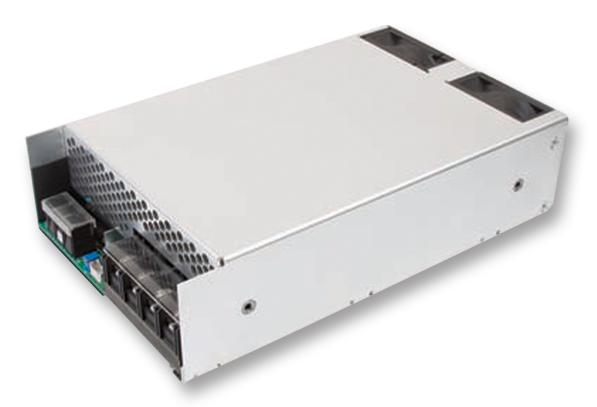

XP POWER SHP350PS28 Industrial Power Supply
The SHP350 AC-DC power supply delivers up to 420 W of output power in a compact, rugged enclosure suitable for various industrial applications. It features a main DC output adjustable from 12 V to 48 V, along with a 5 VDC standby supply that supports remote on/off control and loss detection. The power supply includes a current share feature, allowing multiple units to operate in parallel for higher power requirements. Designed with low earth leakage current and compliant with Class B conducted EMC standards, it simplifies the integration into complex systems. The unit boasts a rugged industrial construction, variable fan speed for noise reduction, and an operating temperature range of -40°C to +70°C, with screw terminal connections. It also includes indicators for AC OK, remote on/off, and active current sharing.
XP POWER SHP350PS28 Industrial Power Supply Specifications:
- Power Output: 420 W
- Main Output Voltage Range: 12-48 VDC
- Standby Power Supply: 5 VDC, 0.2 A
- Input Voltage: 115/230 VAC
- Input Frequency: 50/60 Hz
- Efficiency: Variable based on load, approximately 70-90%
- Operating Temperature: -40°C to +70°C
- Start-up Temperature: -40°C
- Full power operation: -20°C to +50°C
- Partial power at +70°C: 50%
- Cooling: Variable speed fan for noise reduction
- Protection: Overtemperature shutdown, short circuit, overload
- Physical Dimensions: Approximately 178 mm x 91 mm x 63 mm
- Connections: Screw terminals
- Certifications: SEMI F47 compliant, IEC60950 safety standards
- Mechanical Housing: Rugged industrial construction
Buy the Industrial Power Supply Series SHP350 420W: SHP350PS28
Purchase the SHP350PS28 industrial power supply online today and experience reliable power delivery with rugged construction, adjustable voltage, and efficient operation. Its compact design, variable fan speed, and extensive protection features make it ideal for demanding industrial applications. With the ability to operate from -40°C to +70°C, support remote on/off, and share current across multiple units, this power supply ensures scalable, high-power solutions. Order now to integrate proven durability and precision into your industrial system seamlessly.
Get SHP350PS28 today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy XP POWER SHP350PS28?
You can click on the BUY or RFQ button to purchase SHP350PS28 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part SHP350PS28?
You can download the SHP350PS28 datasheet or visit the XP POWER website for support.
Who is the manufacturer of SHP350PS28?
XP POWER
