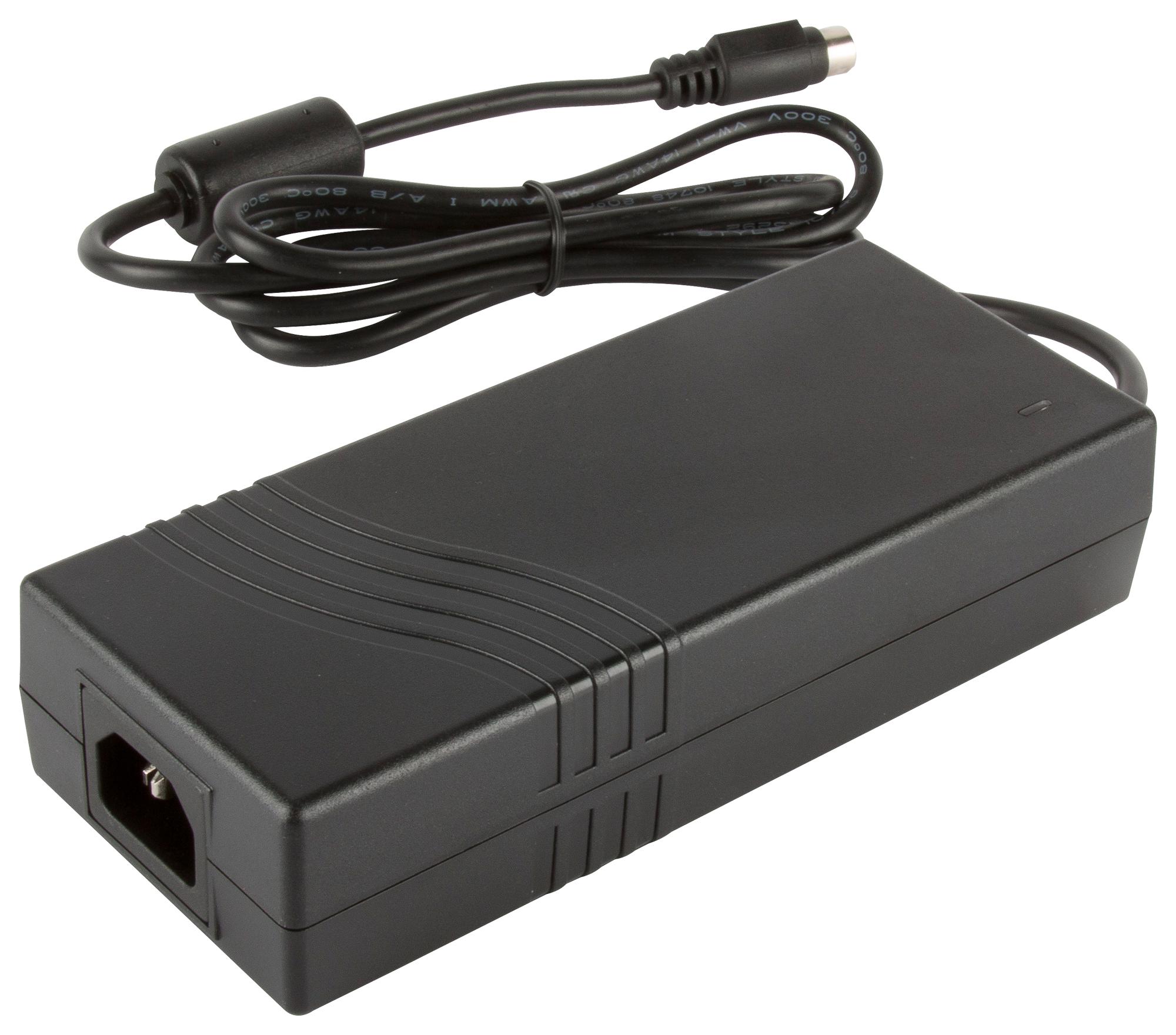

XP POWER VES255PS48 Industrial Power Supply
This power supply features Energy Efficiency Level VI and high power density design, suitable for single output voltages ranging from 19V to 48V. It consumes up to 0.5W in standby mode and is qualified with China Compulsory Certification (CCC). The device operates reliably within a temperature range of -10°C to 60°C. Please note that market demand has led to extended lead times, and delivery dates may vary. Discount availability is not applicable.
XP POWER VES255PS48 Industrial Power Supply Specifications:
- Input Voltage: 90-264 VAC, 63 Hz
- Output Voltage: 19V to 48V
- Output Current: 13.42A for 19V, 10.63A for 24V, 5.31A for 48V
- Energy Efficiency Level: VI
- Standby Power: less than 0.5W
- Operating Temperature: -10°C to 60°C
- Derate linearly from 100% load at 40°C to 50% load at 60°C
- Dimensions: 7.77 x 3.5 x 1.53 inches (197.4 x 88.9 x 39.0 mm)
- Weight: approximately 2.25 lbs (1020 g)
- Certifications: CCC, UL, TUV, CE, UKCA
- Isolation: Input to Output 3000 VAC, Input to Ground 1500 VAC
- Efficiency: Up to 91-92% depending on model
- Cooling: Natural convection
- Vibration and shock resistance as per standard tests
Buy the XP Power Series AC-DC Power Supply: VES255PS48
Enhance your power systems with the high-efficiency, compact industrial power supply designed for reliable operation across temperatures from -10°C to 60°C. Featuring Energy Efficiency Level VI, this device delivers adjustable outputs from 19V to 48V, with standby power below 0.5W. Certified with CCC, UL, and CE, it ensures safety and compliance. Its robust design, natural convection cooling, and proven durability make it ideal for industrial, automation, and manufacturing applications. Buy online now for quick delivery and reliable performance.
Get XP Power VES255PS48 today—built for precision and long-lasting durability in industrial applications.
