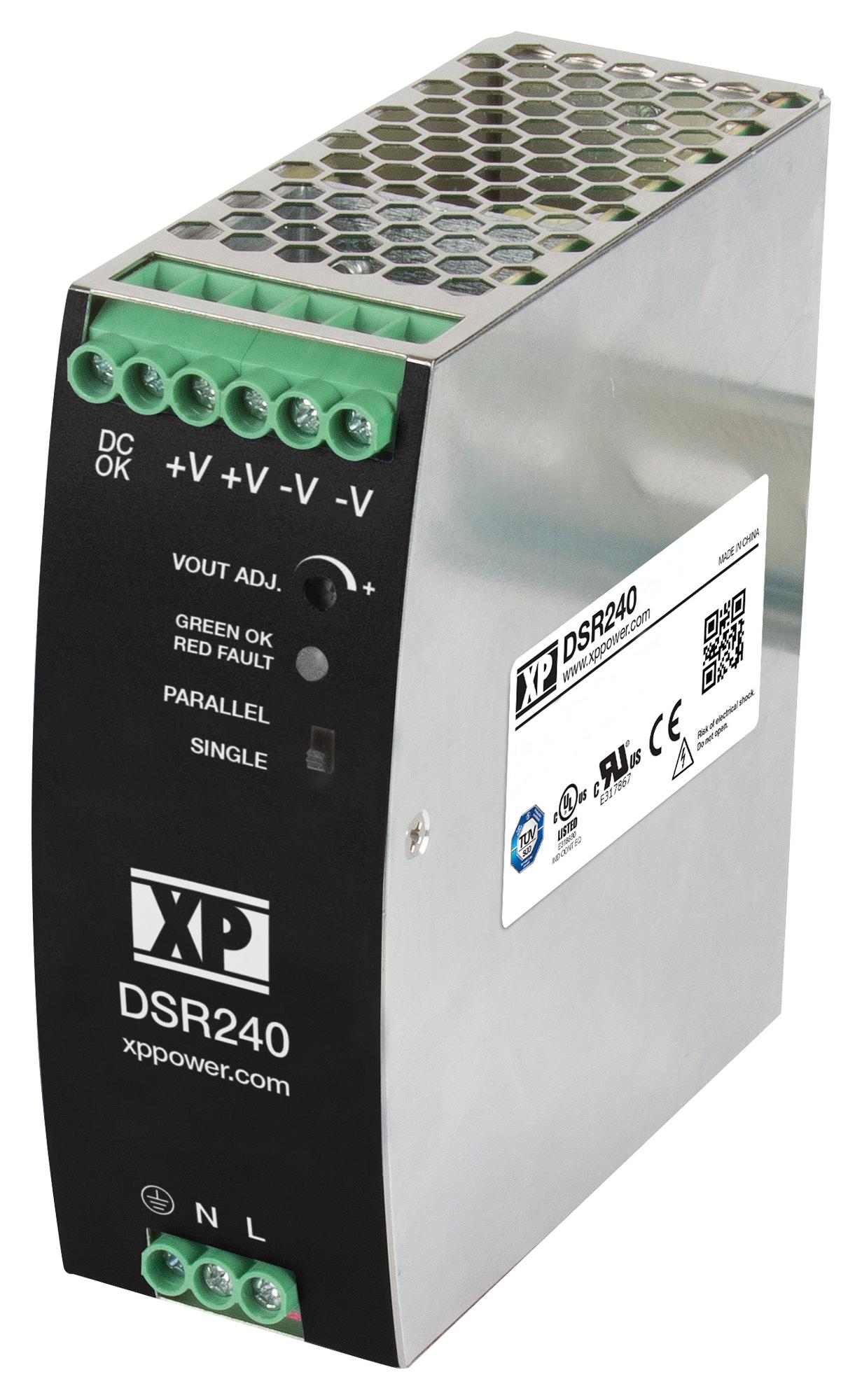

XP POWER DSR240PS48 Industrial Power Supply
The DSR240 series are high-efficiency, ultra-slim AC-DC power supplies offering 240W output with slim 45 mm design and wide input voltage range of 85 to 264 VAC or 130 to 350 VDC. They operate reliably from -25°C to +70°C ambient temperature, supporting full load at 60°C and peak loads up to 150% for 3 seconds. These rugged units feature excellent efficiency up to 94%, voltage-free DC OK contacts, selectable parallel operation, and are suitable for industrial automation, control systems, and manufacturing applications, ensuring reliable power delivery with a 3-year warranty.
XP POWER DSR240PS48 Industrial Power Supply Specifications:
- Output Power: 240 Watts
- Output Voltage: 24.0-28.0V (Model DSR240PS24), 48.0-560V (Model DSR240PS48)
- Output Current: 10.0A (24V model), 5.0A (48V model)
- Peak Current: 15.0A (24V model), 75A (48V model)
- Efficiency: Up to 94%
- Input Voltage: 85 to 264 VAC or 130 to 350 VDC
- Input Frequency: 50/60 Hz
- Operating Temperature: -25°C to +70°C
- Dimensions: 45 mm (width) x 124 mm (length) x 119 mm (height)
- Weight: 760 g
- Ripple & Noise: 240/480 mV pk-pk
- Isolation: Input to Output 3000 VAC
- Protection Features: Overload, short circuit, thermal, and overvoltage protections
- Switching Frequency: 60-300 kHz
- Mechanical Reliability: 3-year warranty
- Certifications: UL, EN61000 immunity and emission standards
Buy the Buy XP Power DSR240PS48 Part Number DSR240PS48 Online
Discover the high-performance, ultra-slim industrial power supply designed for demanding environments. The DSR240 series provides 240W output with efficiency rates reaching 94%, supporting wide input voltage and operating reliably from -25°C to +70°C. With peak load capability up to 150% for 3 seconds, it ensures stability and safety. Its compact size and full protections make it ideal for automation, control, and manufacturing systems. Purchase online now to ensure your projects benefit from reliable power and extended warranty coverage.
Buy XP Power DSR240PS48 now and experience unmatched reliability and performance with high efficiency and rugged industrial protection features.
Frequently Asked Questions
Where can I buy XP POWER DSR240PS48?
You can click on the BUY or RFQ button to purchase DSR240PS48 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DSR240PS48?
You can download the DSR240PS48 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DSR240PS48?
XP POWER
