XP POWER IES0124S12 DC-DC Power Supply
The IES01 series single output DC-DC power supplies are designed to provide isolated voltage rails for distributing power in various applications, including analogue, digital, data, and relay circuits. They feature an unregulated 12V single output with a 24V input voltage range, offering ±10% input tolerance. These power supplies come in an SMD8 DIP package with industry-standard pinout and include continuous short circuit protection. They are UL62368-1 certified, operate from -40°C to +105°C, and maintain full load performance up to +100°C, backed by a 3-year warranty. Compact and highly efficient, they ensure reliable power conversion.
XP POWER IES0124S12 DC-DC Power Supply Specifications:
- Input Voltage Range: 24V with +10% tolerance
- Output Voltage: 12V (unregulated)
- Input to Output Isolation: 1500VDC (standard), 3000VDC optional
- Operating Temperature: -40°C to +105°C
- Full Load Temp Performance: up to +100°C
- Size: 0.52 x 0.335 x 0.285 inches (13.2 x 8.5 x 7.25 mm)
- Efficiency: 85-83% depending on model
- Short Circuit Protection: Continuous with auto recovery
- Safety Certifications: UL62368-1, IEC standards
- Case Material: Black flame-retardant UL94V-0 plastic
- Operating Humidity: Up to 95% non-condensing
- Cooling Method: Natural convection
- Pin Material: Solder-coated phosphor bronze
- Weight: 1.4 grams (~0.003 lbs)
- Switching Frequency: Approximately 270 kHz
- Certifications: UL, UKCA, CE compliant

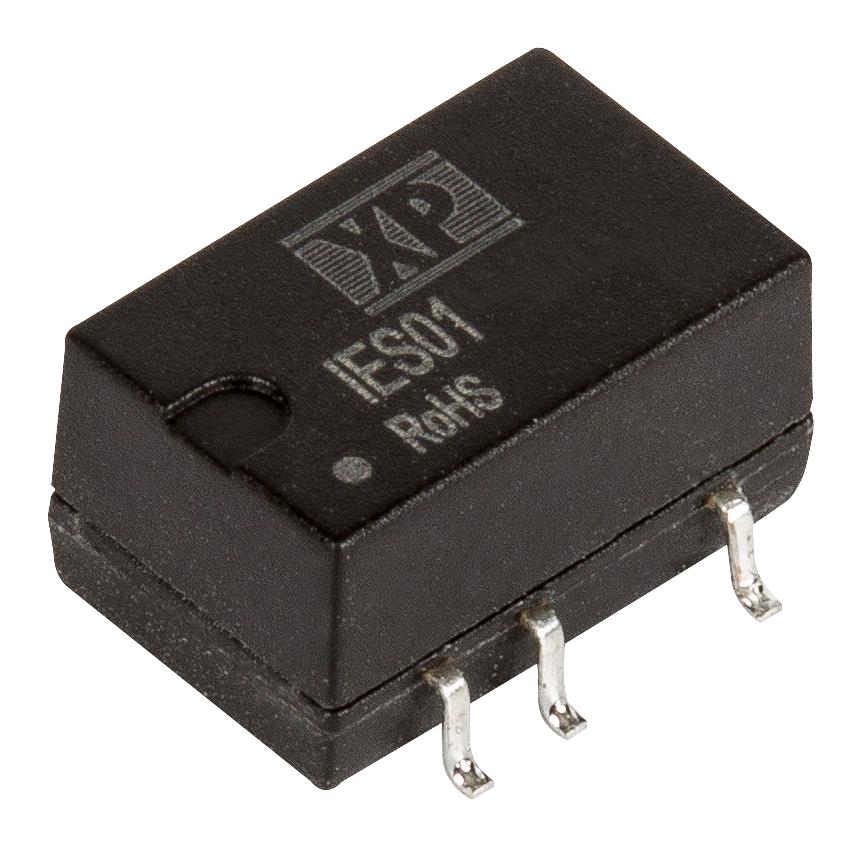

Buy the XP Power Series IESO1 Isolated Power Supplies: IES0124S12
Purchase the XP Power IES0124S12 single output isolated power supply online and enjoy fast shipping, competitive pricing, and the assurance of UL safety approval. This reliable, compact module delivers 12V unregulated power ideal for industrial, automation, and control circuit applications. Featuring excellent temperature operation from -40°C to +105°C, high efficiency, and continuous short circuit protection, the IES0124S12 ensures your system maintains stable power in demanding environments. Order now for fast delivery, technical support, and industry-standard performance tailored to your project needs.
Get XP Power IES0124S12 today—engineered for reliable, high-efficiency power delivery with excellent surge and temperature tolerance.
Frequently Asked Questions
Where can I buy XP POWER IES0124S12?
You can click on the BUY or RFQ button to purchase IES0124S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IES0124S12?
You can download the IES0124S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IES0124S12?
XP POWER
