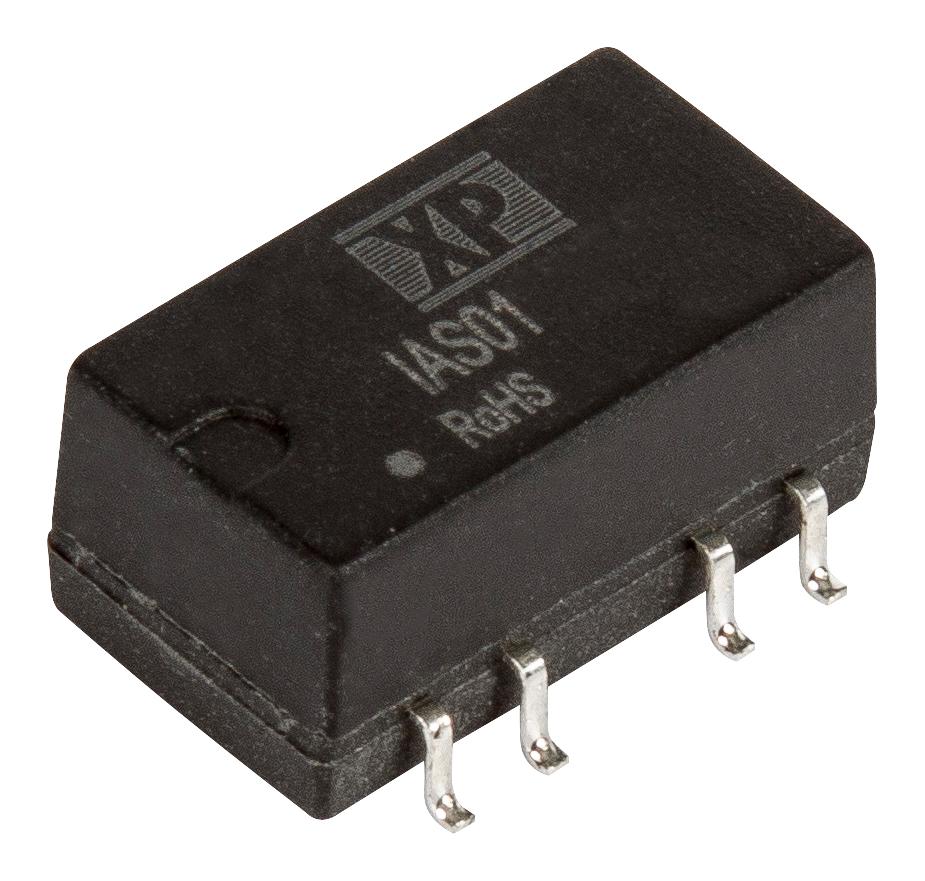

XP POWER IAS0112D15 Dual Output Power Supply
The IAS01 series DC-DC power supply offers an ideal solution for isolating voltage rails in distributed power supply architectures, suitable for analogue, digital, data, and relay circuits. It features unregulated ±15V dual outputs with a 12V input voltage, an input-wide range of ±10%, and comes in an SMD10 DIP package with industry-standard pinout. The power supply provides continuous short circuit protection, complies with UL62368-1 safety approvals, and operates reliably from -40°C to +105°C. It maintains full load capacity up to +100°C and includes a three-year warranty.
XP POWER IAS0112D15 Dual Output Power Supply Specifications:
- Input Voltage: 12V DC
- Output Voltage: ±15V (unregulated)
- Input Range: ±10%
- Isolation: 1.5kV DC, optional 3kV DC
- Efficiency: 78-83%
- Operating Temperature: -40°C to +105°C
- Storage Temperature: -55°C
- Case Dimensions: 0.600" x 0.335" x 0.285" (15.24 x 8.50 x 7.25 mm)
- Input Current: 5mA to 25mA depending on model
- Output Current: 8mA to 244mA depending on model
- Pin Material: Phosphor bronze
- Water Wash: Non-soaking water wash with de-ionised water
- Safety Approvals: UL62368-1, cETL
Buy the XP Power Series IAS01 DC-DC Power Supply: IAS0112D15
Purchase the XP Power IAS0112D15 online today to ensure your projects benefit from a compact, reliable, and safety-certified dual output power supply. Designed for distributed architectures, it offers unregulated ±15V outputs with a 12V input, ideal for analog, digital, and relay circuits. The device features continuous short circuit protection, operates from -40°C to +105°C, and complies with UL62368-1 safety standards. With a three-year warranty, it guarantees high performance, efficient operation, and peace of mind for industrial applications. Buy now for immediate delivery and reliable power solutions.
Order your XP Power Series IAS0112D15 today and enjoy reliable, compact isolation power with high efficiency and UL safety approval for critical electronics.
