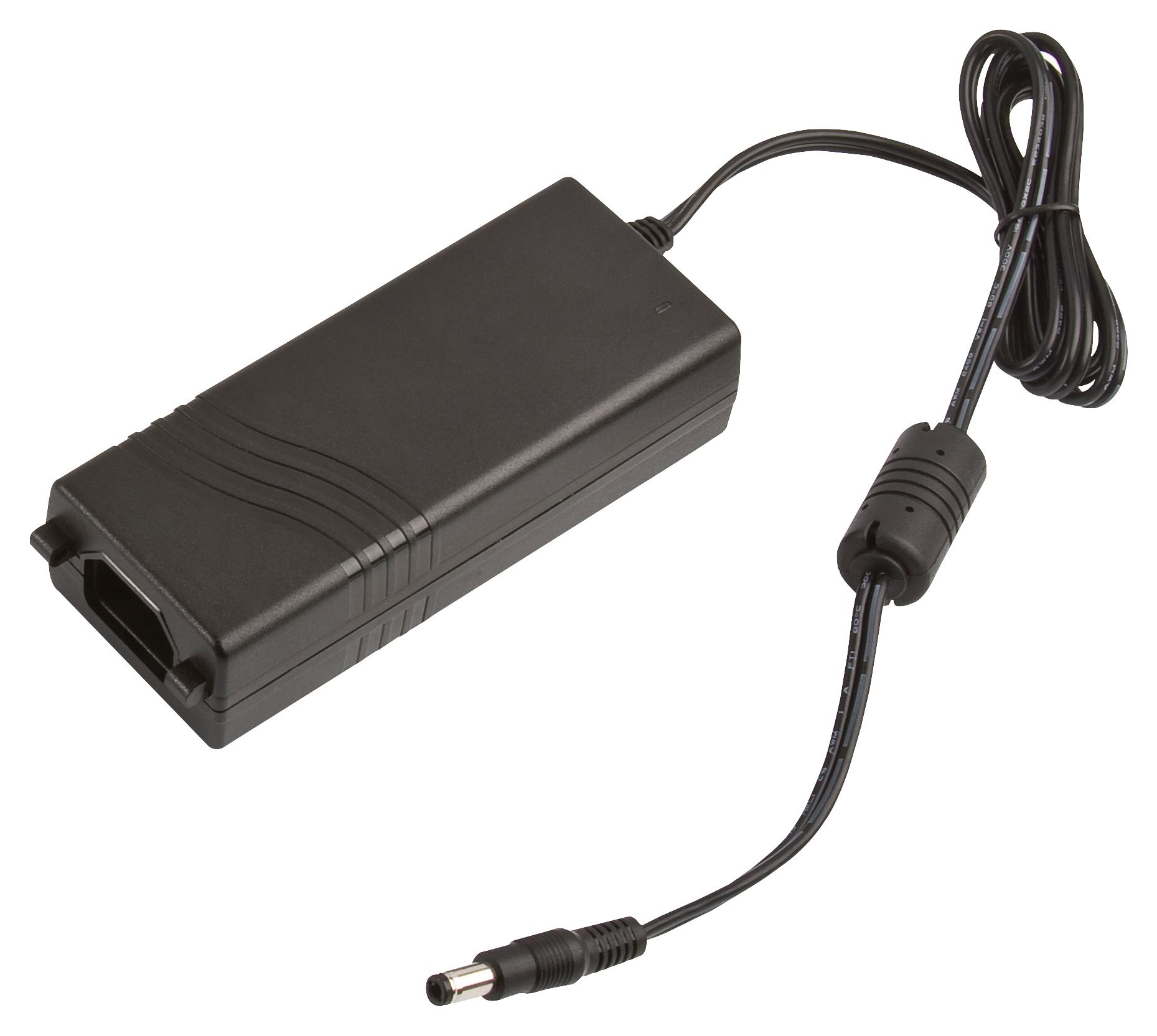

XP POWER AKM65US48 Medical Power Supply
The AKM65 series is a compact, 65W AC-DC power supply designed for medical, healthcare, and industrial applications. Compliant with IEC/EN60601-1-11, EU energy efficiency level VI, and UL standards, it offers high efficiency and low no-load power consumption. Featuring models with output voltages from 12V to 48V, these supplies have strong protections, including overload and short circuit, and operate at temperatures from 0°C to +60°C. With a typical efficiency of over 89%, it ensures reliable performance in demanding environments while maintaining safety and energy-saving standards.
XP POWER AKM65US48 Medical Power Supply Specifications:
- Input Voltage: 80-264VAC
- Input Frequency: 50/60Hz
- Input Current: 20A
- Inrush Current: 100A
- No Load Power: 150mW
- Output Voltages: 12V to 48V
- Output Current: up to 5.42A
- Efficiency: over 89%
- Operating Temperature: 0°C to +60°C
- Dimensions: 125.0 x 62.3 x 34.0mm
- Ingress Protection: IP22
- Protection: Overload (130-160%), Short Circuit, Overvoltage
- Isolation: Input to Output 4000VAC, Input to Ground 1500VAC
- Cooling: Natural convection
- Certifications: UL, IEC60601-1-11, EN60601-1-2, CE, CB
Buy the XP Power Series AKM65 Medical Power Supply: AKM65US48
Purchase the XP Power AKM65US48 online today to ensure your critical healthcare or industrial equipment operates reliably and efficiently. This 65W power supply complies with the latest safety and energy standards, providing high active mode efficiency and extremely low no-load consumption. Suitable for medical, healthcare, and industrial environments, it features a compact design, wide input voltage range, multiple protections, and certification approvals including IEC60601-1-11. Enjoy fast, secure online ordering and prompt delivery for your power solutions.
Buy XP Power AKM65US48 now and experience unmatched reliability and performance for critical medical and industrial systems.
Frequently Asked Questions
Where can I buy XP POWER AKM65US48?
You can click on the BUY or RFQ button to purchase AKM65US48 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part AKM65US48?
You can download the AKM65US48 datasheet or visit the XP POWER website for support.
Who is the manufacturer of AKM65US48?
XP POWER
