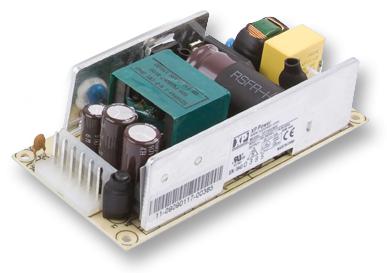

XP POWER VFT80US12 Industrial Power Supply
This VFT Series power supply offers reliable 85-264 VAC input with high efficiency and low no-load power consumption. Designed for 80 W output, it features convection and forced cooling options, operating over a temperature range of -10°C to +70°C. It includes built-in protections such as overload, overvoltage, and short circuit, ensuring safety and durability. With a compact 2 x 4-inch form factor, it is suitable for 1U applications, supporting various output voltages including 5 V, 12 V, 15 V, and 24 V, and provides excellent regulation, ripple, and noise performance for industrial and automation use.
XP POWER VFT80US12 Industrial Power Supply Specifications:
- Input Voltage: 85-264 VAC, 47-63 Hz
- Efficiency: See table for specific efficiencies at various loads
- Input Current: 2 A max at 115 VAC, 1 A max at 230 VAC
- Power Factor: EN61000-3-2, class A
- No Load Input Power: Less than 0.5 W
- Operating Temperature: -10°C to +70°C, derated from 100% load at 50°C to 50% load at 70°C
- Cooling: Convection or forced cooling with 10 CFM, accommodating 60-80 W output
- Output Voltage: 5 V, 12 V, 15 V, 24 V options, initial accuracy ±2% at 50% load
- Peak Load Capability: 150-416 A depending on voltage, with peak load durations under 30 seconds
- Ripple & Noise: Max 19% pk-pk
- Transient Response: 4% max deviation, recovery within 500 microseconds
- Short Circuit & Overload Protection: Trip and restart in hiccup mode
- Input Protections: Internal fuse, overload, overvoltage, and thermal protections
- Dimensions: 2
Buy the Loewe Series VFT Power Supply: VFT80US12
Order the Loewe VFT80US12 power supply online today to enjoy reliable, high-performance power conversion for your industrial automation needs. With a compact 2 x 4-inch size and versatile output options, this power supply ensures optimal performance, safety, and efficiency. Perfect for 1U applications, it features built-in protections, excellent regulation, and low noise for sensitive electronics. Purchase now to benefit from fast shipping and premium quality, making your projects safer and more efficient.
Get Loewe VFT80US12 today—built for high efficiency and reliable power delivery in industrial and automation applications.
Frequently Asked Questions
Where can I buy XP POWER VFT80US12?
You can click on the BUY or RFQ button to purchase VFT80US12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VFT80US12?
You can download the VFT80US12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VFT80US12?
XP POWER
