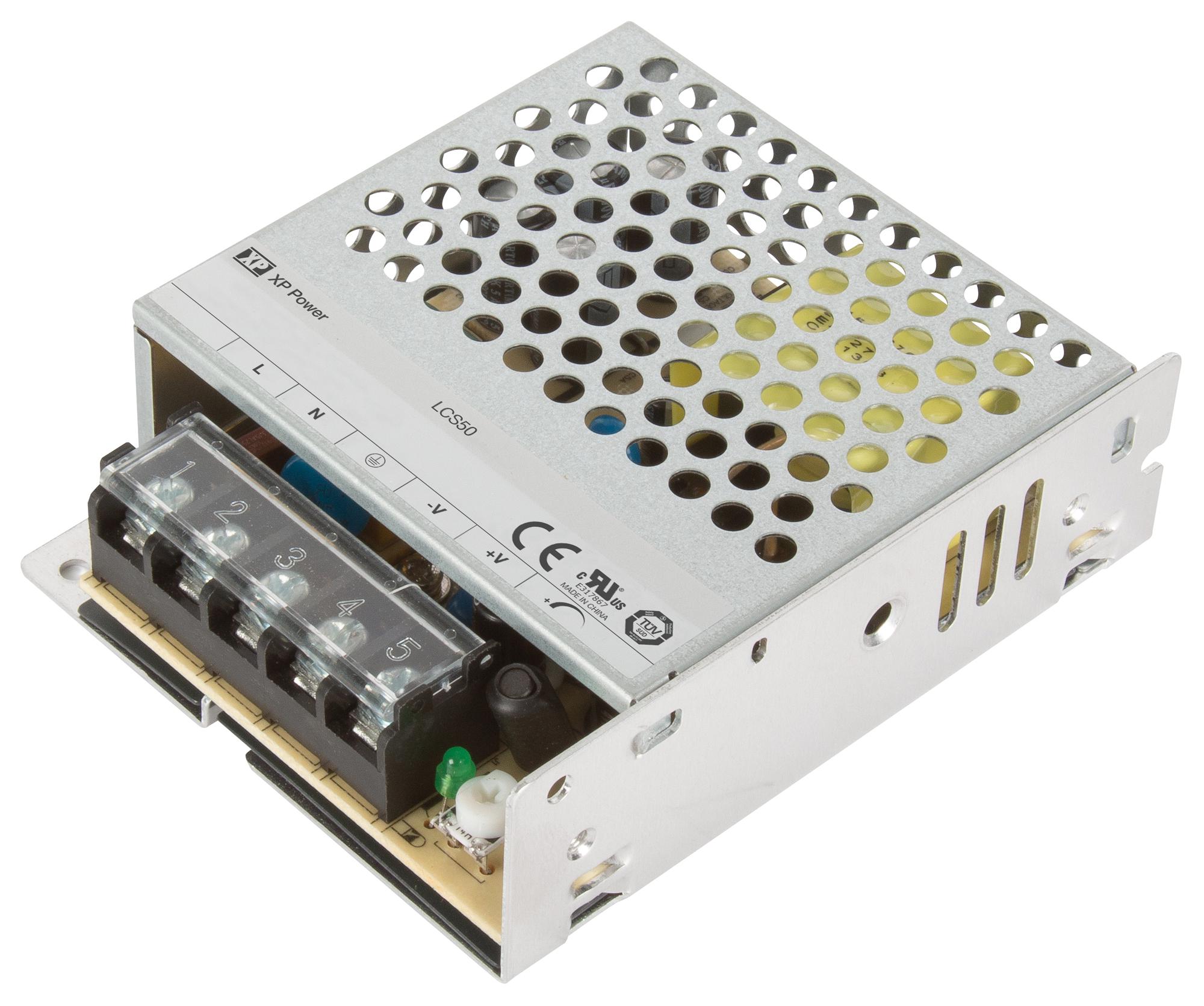

XP POWER LCS50US15 Power Supply
The LCS series of regulated output convection-cooled AC-DC power supplies offers a cost-effective solution for industrial electronics and technology applications. These 50W power supplies feature adjustable output voltage, a power 'ON' LED indicator, low standby power consumption, and protections including short circuit, over current, and over voltage. They are suitable for auxiliary power sources, security systems, lighting control, smart home and office automation, ticketing, and vending applications. The units are convection cooled, certified for ITE, industrial, and household standards, include an integrated connector cover, and comply with Class B conducted and radiated emission standards. They operate over an input voltage range of 85-264VAC, withstand 300VAC for 5 seconds, and can operate in temperatures from -30°C to +70°C. These supplies come with a 3-year warranty.
XP POWER LCS50US15 Power Supply Specifications:
- Input Voltage: 85-264VAC
- Input Frequency: 47-63Hz
- Surge Withstand: 300VAC for 5s
- Efficiency: Up to 90%
- Output Power: 50W
- Output Voltage Range: 5V to 48VDC
- Output Voltage Adjustment: 45-5.5V, 12.0V, 15.0V, 24.0V, 36.0V, 48.0V
- Output Current: 2.0A to 16.2A based on model
- Dimensions: 3.89
- 3.23
- x 1.18
- 99
- x82.0
- 30
- mm
- Operating Temperature: -30°C to +70°C
- Certifications: ITE, industrial (EN 60950), household (EN 60335), UL, CE, UKCA
- Protection Features: Short circuit, overload, over voltage
- Cooling Method: Convection cooled
- Design: Vented aluminum chassis with galvanized steel cover
- Built-in Protections: Output short circuit, overcurrent, overvoltage
- Warranty: 3 years
Buy the XP Power Series LCS 50W Power Supply: LCS50US15
Discover the reliable and efficient XP Power Series LCS50US15 power supply, a convection-cooled unit with adjustable voltage, high efficiency, and comprehensive protections. Perfect for industrial electronics, security systems, lighting, and automation applications, this 50W unit operates over a wide voltage range of 85-264VAC, withstands surges, and performs reliably from -30°C to +70°C. Its robust design includes short circuit, over current, and over voltage protection, with certifications for industrial and household use, all backed by a three-year warranty. Purchase online today for dependable, cost-effective power solutions for your critical systems.
Order your XP Power Series LCS50US15 convection-cooled power supply today and ensure reliable, efficient power for your industrial and automation projects.
Frequently Asked Questions
Where can I buy XP POWER LCS50US15?
You can click on the BUY or RFQ button to purchase LCS50US15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCS50US15?
You can download the LCS50US15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCS50US15?
XP POWER
