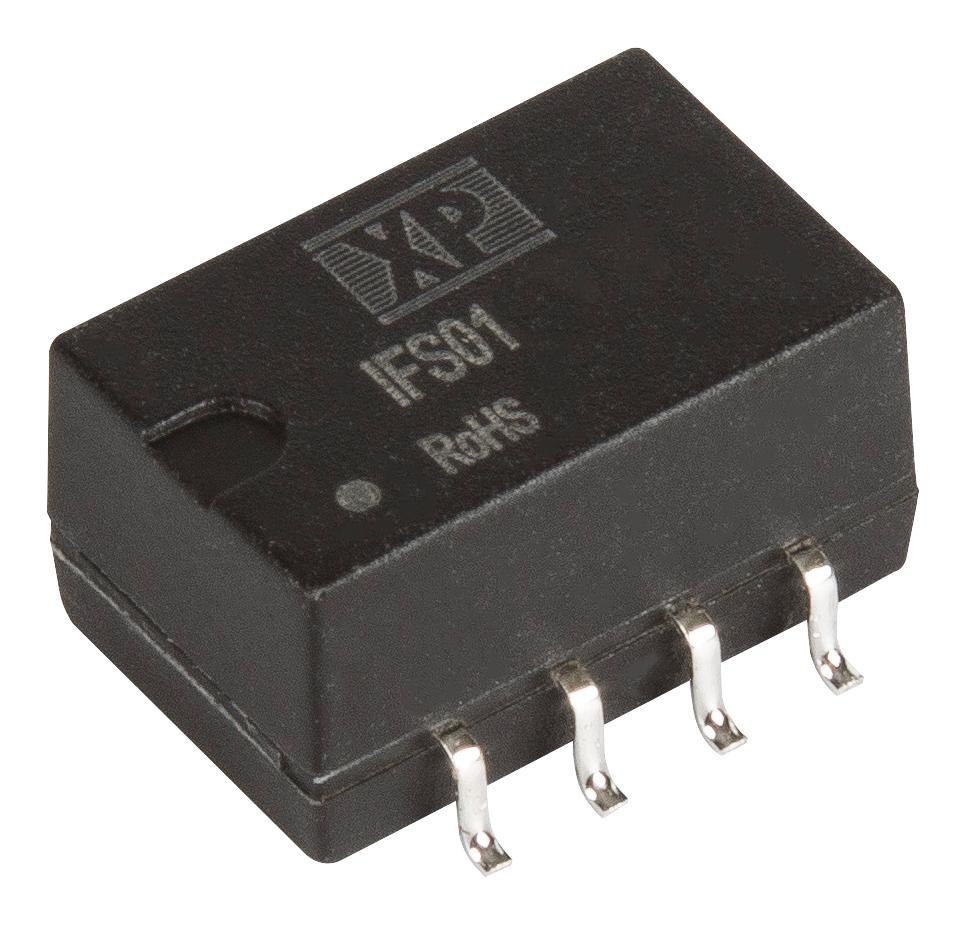

XP POWER IFS0105S05 DC-DC Isolator
The IFS01 series provides reliable isolation for voltage rails in distributed power supply systems, ideal for analog, digital, data, and relay circuits. Compact and efficient, it offers 1.5kV DC isolation, continuous short circuit protection, and operates between -40°C and +105°C. This single unregulated output converter features industry-standard pinout, UL62368-1 safety approval, SMD DIP packaging, and is available in tape and reel options for easy automation. Designed for high-density applications, it ensures power stability and safety across various industrial and electronic setups.
XP POWER IFS0105S05 DC-DC Isolator Specifications:
- Input Voltage Range: 4.50V to 5.50V DC
- Output Voltage: 5V, 12V (see models)
- Efficiency: Based on model ratings, typically high efficiency
- Isolation Voltage: 1500 VDC
- Operating Temperature: -40°C to +105°C
- Storage Temperature: -55°C to +125°C
- Dimensions: 0.52 x 0.335 x 0.285 inches (13.2 x 8.5 x 7.25 mm)
- Power: 1 Watt, full power output up to 100°C
- Safety Approval: UL62368-1
- Pulse Width Modulation: Yes, for regulation
- Input Surge Voltage: 9 VDC for 1s
- Switching Frequency: 270-278 kHz
- Ripple and Noise: 30-75 mV pk-pk
- Short Circuit Protection: Continuous with auto recovery
- Material: Black flame-retardant UL94 V-0 plastic case
- Pin Material: Phosphor bronze, solder coated
- Water Resistance: Suitable for non-soaking water wash
Buy the Buy XP Power IFS01 Series Part Number IFS0105S05 Online
Enhance your power systems with the compact and efficient DC-DC isolator from XP Power's IFS01 series. Offering 1.5kV isolation, robust short circuit protection, and operation up to +105°C, it ensures reliable power delivery across digital, analog, data, and relay circuits. The product features UL62368-1 approval, industry-standard pinout, and is available in tape and reel packages for convenient automation. Perfect for space-constrained industrial and electronic applications, this unit guarantees safety, high performance, and easy integration for your power supply needs.
Buy XP Power IFS01 Series IFS0105S05 now and experience unmatched reliability and high efficiency for industrial power supply applications.
Frequently Asked Questions
Where can I buy XP POWER IFS0105S05?
You can click on the BUY or RFQ button to purchase IFS0105S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IFS0105S05?
You can download the IFS0105S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IFS0105S05?
XP POWER
