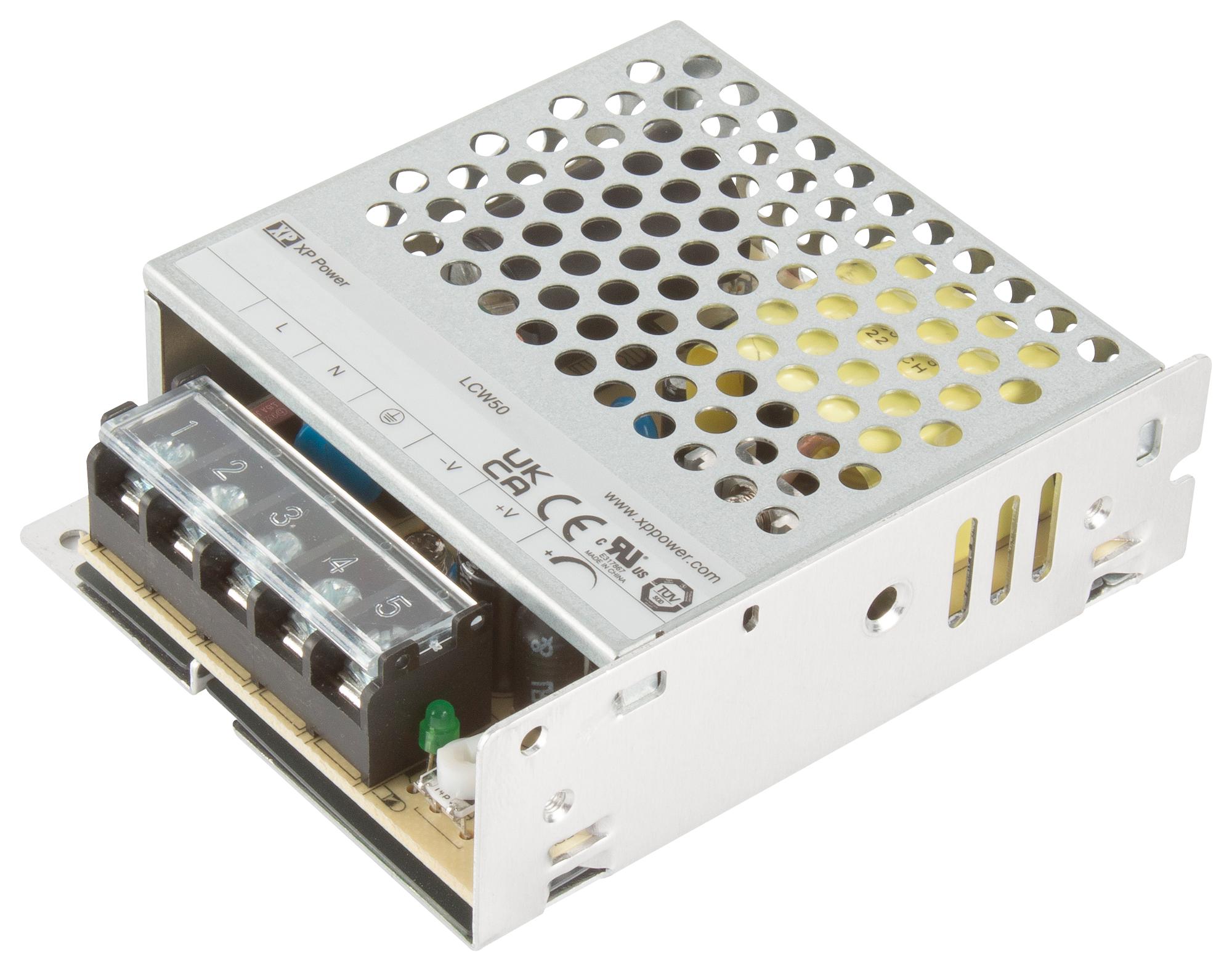

XP POWER LCW50US12 Industrial Power Supply
The LCW50 series regulated output power supplies are convection-cooled AC to DC units designed for industrial, technological, and household applications. They feature a wide input voltage range of 85-305VAC, adjustable output voltage with ±10% tuning, and a switching frequency of 65kHz. These 50W power supplies offer high efficiency of 86%, low standby power consumption, and multiple protections including short circuit, overcurrent, overvoltage, and overload. They are certified by UL62368-1, EN62368-1, EN60335, EN61558, CE, and UKCA, suitable for auxiliary power, security systems, lighting control, smart home and office automation, ticketing, and vending. Additional features include an integrated connector cover, conformal coating option, vented aluminum chassis with steel cover, and operation across -30°C to +70°C. The enclosure dimensions are 3.898 inches x 3.228 inches x 1.181 inches (99 x 82 x 30 mm).
XP POWER LCW50US12 Industrial Power Supply Specifications:
- Input Voltage: 85-305VAC
- Output Power: 50W
- Output Voltage Adjustment: ±10%
- Output Power rating: 50W continuous
- Efficiency: up to 90%
- Ripple & Noise: 120mV to 240mV depending on model
- Operating Temperature: -30°C to +70°C
- Cooling: Natural convection
- Protection: Short circuit, overvoltage, overload
- Certifications: UL62368-1, EN62368-1, EN60335, EN61558, CE, UKCA
- Dimensions: 3.898 x 3.228 x 1.181 inches (99 x 82 x 30 mm)
- Switching Frequency: 65 kHz
- Isolation: 4000 V input to output
- Environmental Rating: Non-condensing humidity 5-90%
- Weight: Approximately 0.418 kg (about 0.92 lbs)
Buy the XP Power LCW50US12 – Reliable Industrial Power Supply for Automation and Home Use
Secure your power solutions with the XP Power LCW50 series online. These 50W convection-cooled power supplies are perfect for industrial, security, lighting, and automation applications. Designed with wide input voltage compatibility of 85-305VAC, they feature adjustable output voltage with ±10% tuning, high efficiency of 86%, and multiple safety protections including short circuit, overcurrent, overvoltage, and overload. Their rugged aluminum chassis, conformal coating option, and operation from -30°C to +70°C make them ideal for demanding environments. Purchase now for dependable power and seamless integration.
Buy XP Power LCW50 series online now and experience reliable performance, high efficiency, and comprehensive protection for your industrial and household projects.
Frequently Asked Questions
Where can I buy XP POWER LCW50US12?
You can click on the BUY or RFQ button to purchase LCW50US12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW50US12?
You can download the LCW50US12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW50US12?
XP POWER
