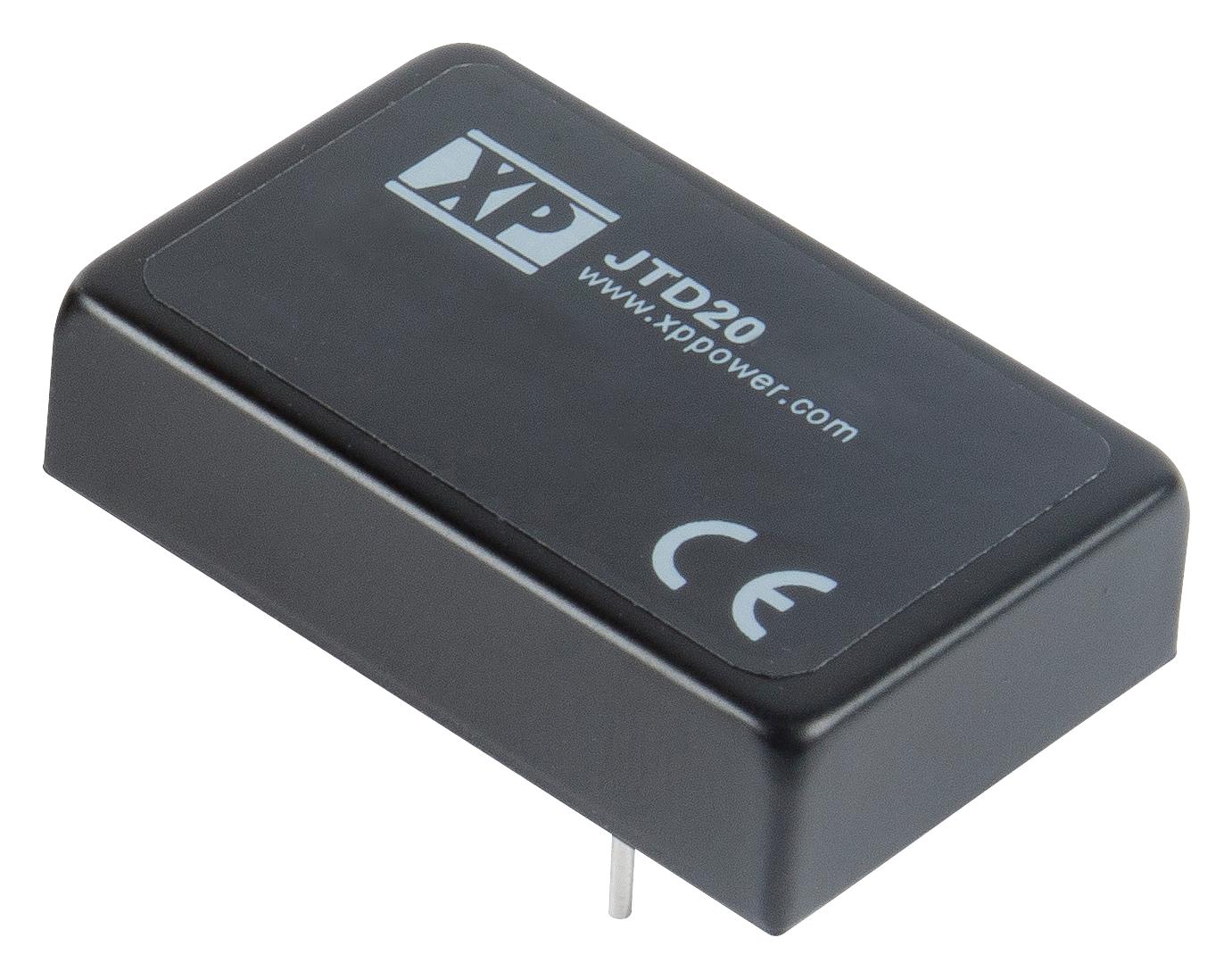

XP POWER JTD2048S12 DC-DC Converter
The JTD20 Series is a compact 20-watt DC-DC converter designed for reliable performance in various industrial applications. It features a wide 4:1 input voltage range of 9-36V or 18-75V, with full load operation at 65°C ambient temperature. The unit provides 3000 VDC isolation, short circuit protection, and output trim adjustment of ±10%. Its metal case ensures durability, and remote On/Off facilitates control, making it suitable for automation, industrial electronics, and control systems requiring stable power conversion in a small footprint.
XP POWER JTD2048S12 DC-DC Converter Specifications:
- Input Voltage Range: 9-36V or 18-75V (nominal 24V or 48V)
- Output Power: 20 Watts
- Output Voltage: 3.3V, 5V, 12V, 15V, 24V, or 33V (depending on model)
- Input Ripple Current: 20 TA pk-pk through 12 pH inductor and 47 pF capacitor
- Maximum Input Surge: 100 VOC for 100 ms
- Efficiency: Up to 90.5%
- Isolation: Input to Output 3000 VDC, Input/Output to Case 1600 VDC
- Operating Temperature Range: -40°C to +100°C
- Case Material: Metal
- Dimensions: 1.6 x 1.0 inches (40.6 x 25.4 mm), height approximately 0.41 inches (10.4 mm)
- Protection: Short Circuit, Overvoltage (140%), Overload (170%)
- Switching Frequency: 270/330 kHz
- Weight: Approximately 0.029 lbs (13.2 g)
Buy the XP Power Series JTD20 DC-DC Converter: 20 Watts, 9-75V Input, 3.3-33V Output
Enhance your industrial automation and control systems with the XP Power JTD2048S12, a 20-watt DC-DC converter featuring a wide input voltage range and 3000VDC isolation. Its compact metal case, high efficiency up to 90.5%, and full load operation at 65°C ensure reliable power conversion in challenging environments. Equipped with short circuit, overvoltage, and overload protections, plus remote On/Off control, this robust converter guarantees safety and stability for your critical applications. Order online now for fast delivery and seamless integration into your systems.
Buy XP Power JTD2048S12 now and experience unmatched reliability and performance in industrial power supply needs.
Frequently Asked Questions
Where can I buy XP POWER JTD2048S12?
You can click on the BUY or RFQ button to purchase JTD2048S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JTD2048S12?
You can download the JTD2048S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JTD2048S12?
XP POWER
