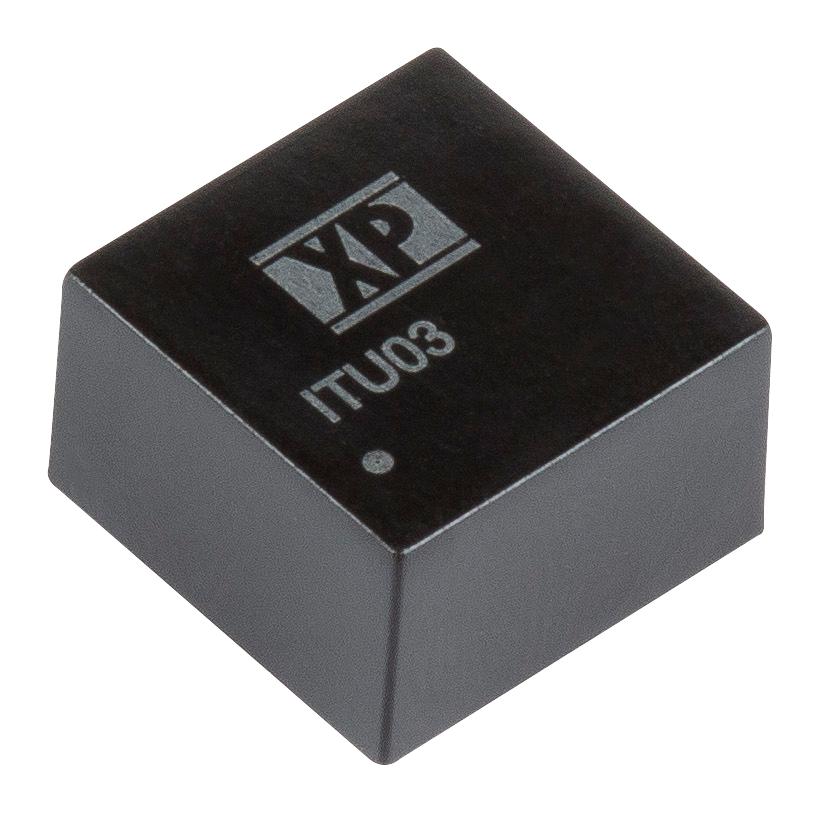

XP POWER ITU0348D12 industrial DC-DC converter
The ITU0348D12 is a compact, industrial-grade 3W DC-DC converter featuring a wide input voltage range from 4.5V to 75V and regulated outputs from 3.3V to 30V. It offers 1% regulation accuracy, high efficiency up to 84%, and includes short-circuit protection, remote On/Off control, and galvanic isolation of 1.6kVDC. Designed for rugged applications, it operates efficiently up to +70°C full power and withstands extreme temperatures with an operating range from -40°C to +80°C. Its DIP8 encapsulated construction ensures durability and ease of integration in industrial and automation systems.
XP POWER ITU0348D12 industrial DC-DC converter Specifications:
- Input Voltage Range: 4.5V to 75VDC
- Output Voltage: 3.3V to 30VDC (regulated, ±1%)
- Power: 3 Watts
- Efficiency: up to 84%
- Isolation: 1.6kVDC
- Operating Temperature Range: -40°C to +80°C
- Full Power: up to +70°C
- Dimensions: 0.55 x 0.55 x 0.32 inches (14.0 x 14.0 x 8.1 mm)
- Input Surge Voltage: specified per model
- Remote On/Off Control: Yes
- Short Circuit Protection: Yes
- Case Material: Non-conductive black plastic
- MTBF: Greater than 820,000 hours
- Certifications: EN55032, CE, UKCA
Buy the XP Power Series ITU Series DC-DC Converter: ITU0348D12
Experience the reliability and efficiency of the XP Power ITU0348D12, a compact 3W DC-DC converter perfect for industrial, automation, and embedded systems. Featuring a wide input voltage range from 4.5V to 75V and regulated outputs from 3.3V to 30V, it ensures stable power delivery with 84% efficiency. Its rugged DIP8 encapsulation, galvanic isolation, remote On/Off, and short-circuit protection make it easy to integrate into demanding environments. Operating from -40°C to +80°C, this converter guarantees durability and consistent performance for your critical applications.
Get XP Power ITU0348D12 today—built for industrial applications, offering rugged durability and reliable power conversion.
Frequently Asked Questions
Where can I buy XP POWER ITU0348D12?
You can click on the BUY or RFQ button to purchase ITU0348D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITU0348D12?
You can download the ITU0348D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITU0348D12?
XP POWER
