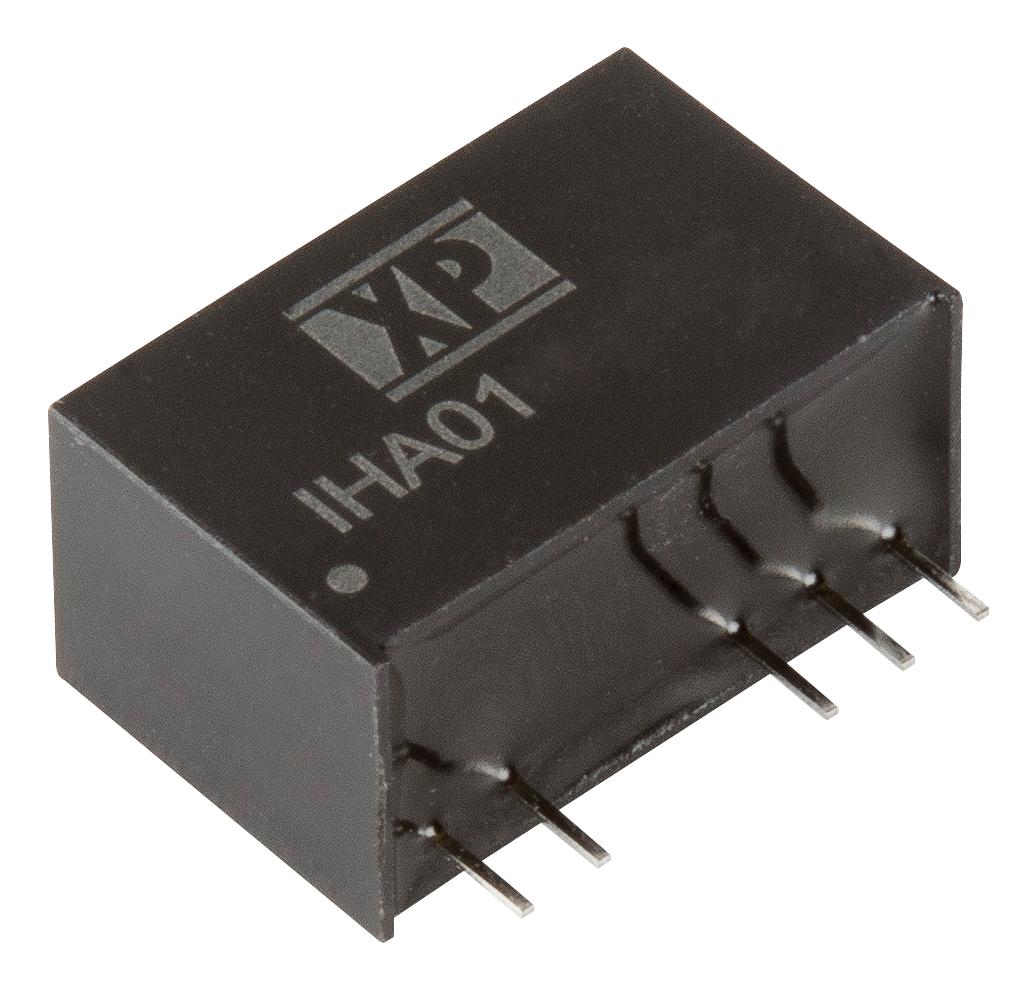

XP POWER IHA0109D09 DC-DC Converter
The IHA01 series is a 1W dual output DC to DC converter housed in a compact SIP7 package. It features high isolation of 6,000 VDC, a working voltage of 250 VAC, and bipolar outputs suitable for MOSFET and IGBT drives. Operating from -40°C to 85°C with full load at 85°C, it suits power management and industrial applications requiring reliable isolation and stable performance in limited space. Its design ensures efficient energy transfer, making it ideal for controlling power in high-voltage environments.
XP POWER IHA0109D09 DC-DC Converter Specifications:
- Power: 1 Watt
- Isolation: 6,000 VDC
- Working Voltage: 250 VAC
- Input Voltage Range: 10.8-13.2V, 13.5-16.5V, 21.6-26.4V
- Output Voltages: Single or dual bipolar outputs
- Operating Temperature: -40°C to +85°C
- Full load at ambient temperature of 85°C
- Package: SIP7
- Dimensions: 0.77 x 0.39 x 0.49 inches (19.5 x 9.8 x 12.5 mm)
- Weight: Approx. 4.3 g
- MTBF: 2.5 million hours
- Thermal Range: No thermal derating up to 85°C
- Input Surge Voltage: Specified for 100 ms
- Ripple & Noise: Measured with 10 uF electrolytic in parallel with 0.1 uF ceramic capacitor
- Efficiency: Up to specified based on model
- Certifications: Meets EN55022 Class B radiated and conducted standards post filtering
Buy the Buy XP Power IHAO1 Series DC-DC Converter Part Number IHA0109D09 Online
Purchase the XP Power IHAO1 Series DC-DC Converter online today for dependable 1W power performance. With high isolation of 6000 VDC and bipolar outputs suitable for MOSFET and IGBT drives, this compact converter in SIP7 package operates efficiently from -40°C to 85°C. Ideal for industrial and power management applications, it provides full load at high ambient temperatures, ensuring reliable operation. Order now to enhance your power supply solutions with premium quality and fast delivery.
Order your XP Power IHAO1 Series DC-DC Converter IHA0109D09 today and ensure your power system benefits from high isolation and reliable performance.
Frequently Asked Questions
Where can I buy XP POWER IHA0109D09?
You can click on the BUY or RFQ button to purchase IHA0109D09 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IHA0109D09?
You can download the IHA0109D09 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IHA0109D09?
XP POWER
