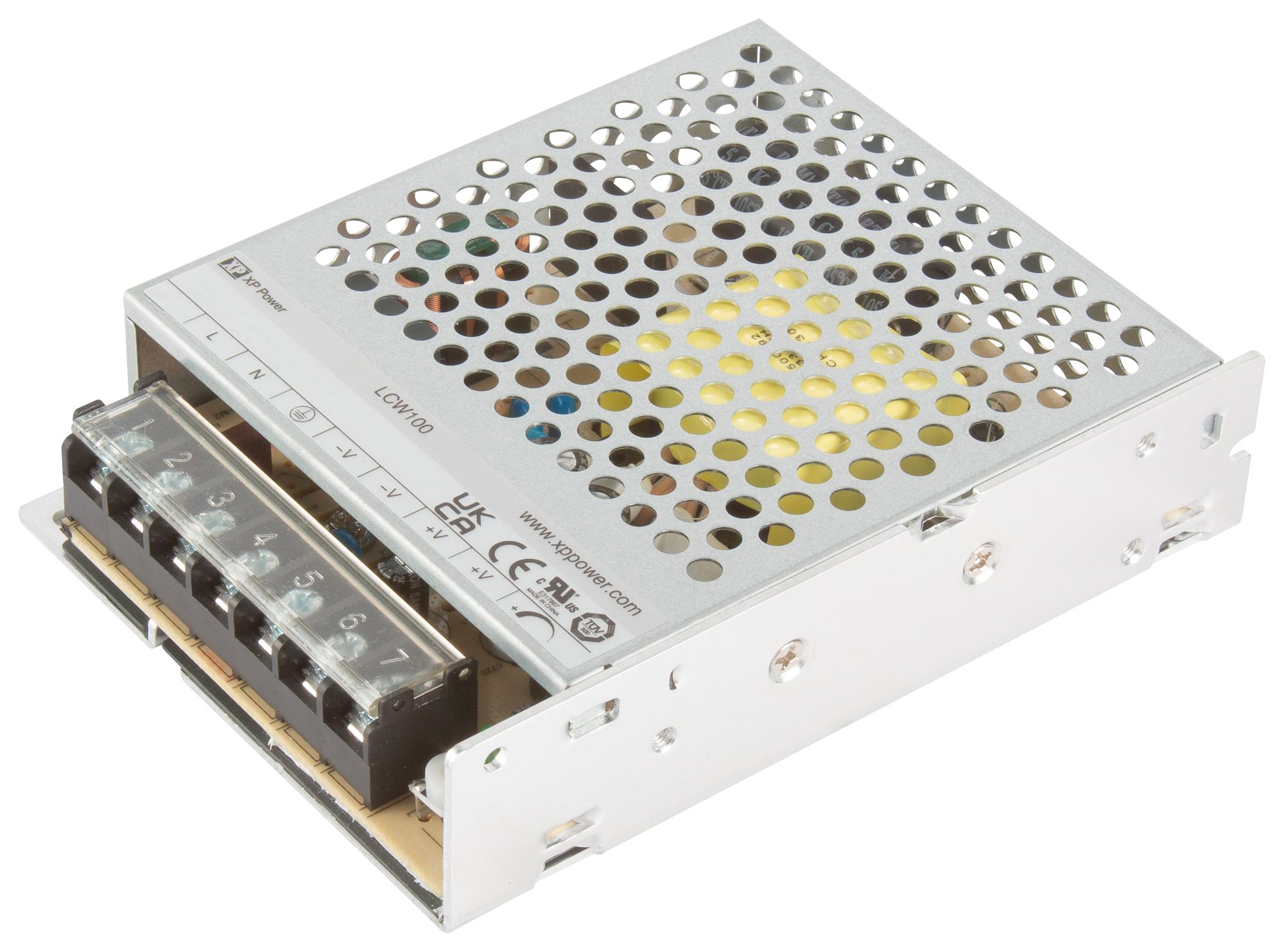

XP POWER LCW100US24 Power Supply
The LCW100 series regulated output convection-cooled AC to DC power supply provides a cost-effective solution for industrial electronics, technology, and household applications. It features a wide input voltage range from 85 to 305VAC, adjustable output voltage, low standby power consumption, and protections against short circuit, overcurrent, overvoltage, and overload conditions. This 100W power supply is convection cooled with an integrated connector cover and certified by UL62368-1, EN62368-1, EN60335, EN61558, CE, and UKCA. Additional features include Class B emissions, a switching frequency of 65kHz, 89% efficiency, optional conformal coating, and a wide operating temperature range from -30°C to +70°C. It has an aluminum chassis with a vented galvanized steel cover, measuring 5.079 inches x 3.819 inches x 1.181 inches (129mm x 97mm x 30mm), and is supported by a three-year warranty, making it suitable for various demanding applications.
XP POWER LCW100US24 Power Supply Specifications:
- Input Voltage Range: 85-305VAC
- Output Power: 100W
- Output Voltage Adjustment: +10%
- Efficiency: Up to 89%
- Ripple & Noise: 100mV pk-pk
- Operating Temperature: -30°C to +70°C
- Dimensions: 5.079 inches x 3.819 inches x 1.181 inches (129mm x 97mm x 30mm)
- Cooling: Natural convection
- Protection: Short circuit, overvoltage, overload
- Certifications: UL62368-1, EN62368-1, EN60335, EN61558, CE, UKCA
- Emissions: Class B conducted & radiated
- Switching Frequency: 65kHz
- Enclosure: Aluminum chassis with galvanized steel cover
- Warranty: 3 years
Buy the XP Power Series LCW Power Supply: LCW100US24
Order the XP Power LCW100US24 online today and experience dependable energy conversion for industrial, security, and household systems. Designed for durability and efficiency, this 100W convection-cooled power supply features a wide input range, adjustable output voltage, and comprehensive protections including short circuit, overcurrent, and overvoltage. Certified by UL and CE standards, it guarantees safety and quality. Its efficient design offers up to 89% efficiency, operates reliably from -30°C to +70°C, and features an aluminum chassis with galvanized steel cover. Perfect for demanding electronic systems, this unit also includes optional conformal coating and a three-year warranty. Purchase now for a dependable power solution.
Get XP Power LCW100US24 today—built for reliability and long-lasting performance in industrial and household applications.
Frequently Asked Questions
Where can I buy XP POWER LCW100US24?
You can click on the BUY or RFQ button to purchase LCW100US24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW100US24?
You can download the LCW100US24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW100US24?
XP POWER
