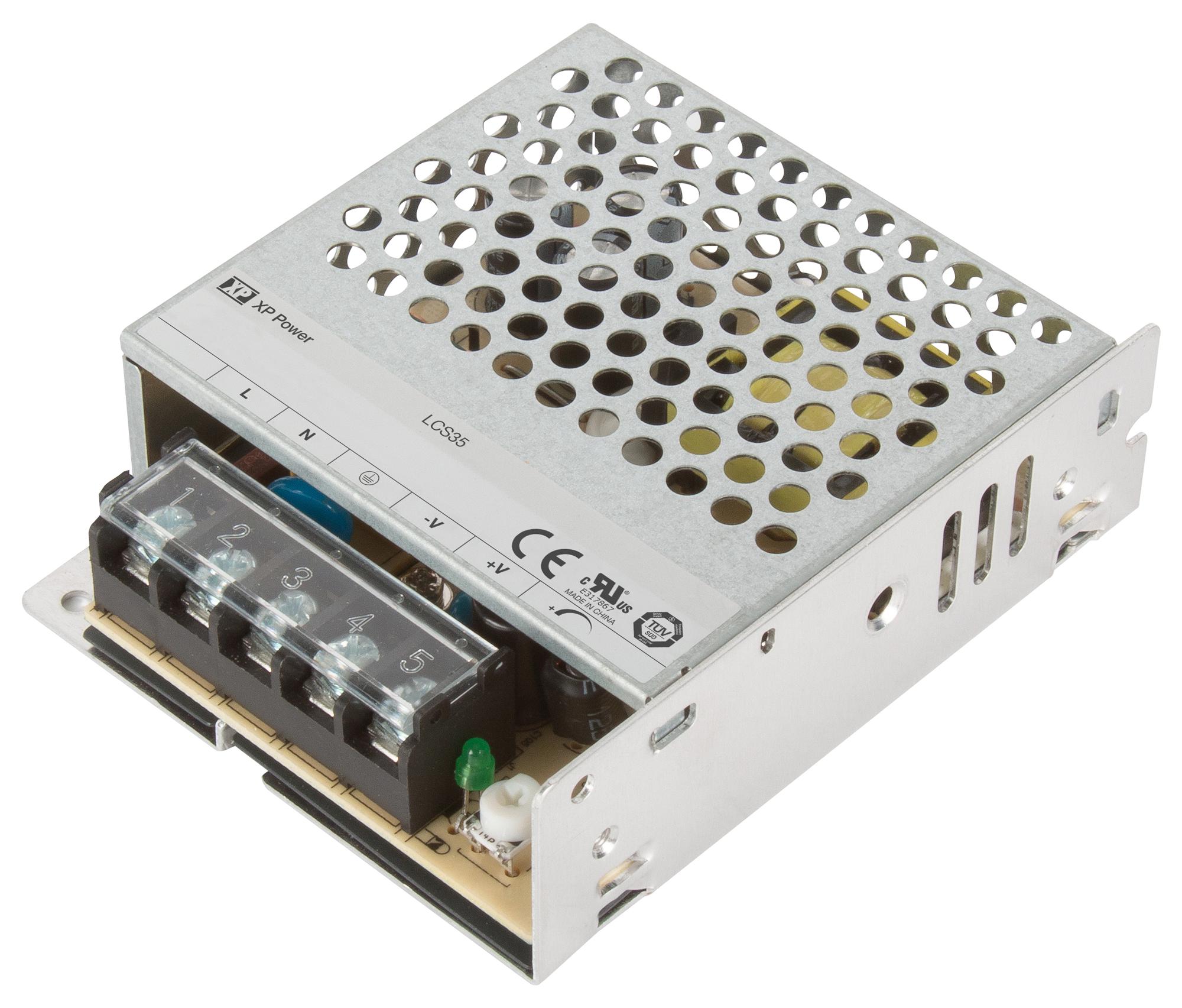

XP POWER LCS35US15 Power Supply
The LCS series of regulated output convection-cooled AC-DC power supplies offers an economical solution for industrial electronics and technology applications. These 35W power supplies feature adjustable output, a power 'ON' LED indicator, low standby consumption, and protections against short circuits, overcurrent, and overvoltage. Suitable for auxiliary power, security systems, lighting control, smart home, and office automation, they are convection-cooled, approved for industrial, household, and ITE uses, have an integrated connector cover, and emit Class B conducted and radiated emissions. Operating from 85-264VAC, they withstand 300VAC for 5 seconds, operate between -30°C and +70°C, and include a 3-year warranty.
XP POWER LCS35US15 Power Supply Specifications:
- Input Voltage Range: 85-264VAC
- Withstand Voltage: 300VAC for 5 seconds
- Output Voltage Range: 13.5-18.0V (model LCS35US15)
- Output Power: 36W
- Efficiency: up to 88%
- Ripple & Noise: 120mV pk to pk
- Operating Temperature: -30°C to +70°C
- Dimensions: 3.89" x 3.23" x 1.18" (99.0 x 82.0 x 30.0 mm)
- Isolation: Input to Output 4000 vac
- Switching Frequency: 65 kHz
- Protection: Short circuit, overvoltage, overload
- EMC Compliance: EN55032 Class B
- Case Material: Aluminium chassis with vented steel cover
- Warranty: 3 years
Buy the XP Power LCS35US15 – Reliable Power Supply for Industrial Applications
Order the XP Power LCS35US15 online today and ensure your industrial, security, or automation project receives a dependable 35W power source. Designed for efficiency, safety, and versatility, this convection-cooled power supply features adjustable voltage, comprehensive protection features, and proven EMC compliance. With a compact size and robust construction, it’s ideal for a range of applications including lighting control, smart home systems, ticketing, and vending. Enjoy fast delivery and the confidence of a 3-year warranty when you purchase directly online now!
Buy XP Power LCS35US15 now and experience unmatched reliability and performance with its adjustable voltage and protections suitable for industrial systems.
Frequently Asked Questions
Where can I buy XP POWER LCS35US15?
You can click on the BUY or RFQ button to purchase LCS35US15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCS35US15?
You can download the LCS35US15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCS35US15?
XP POWER
